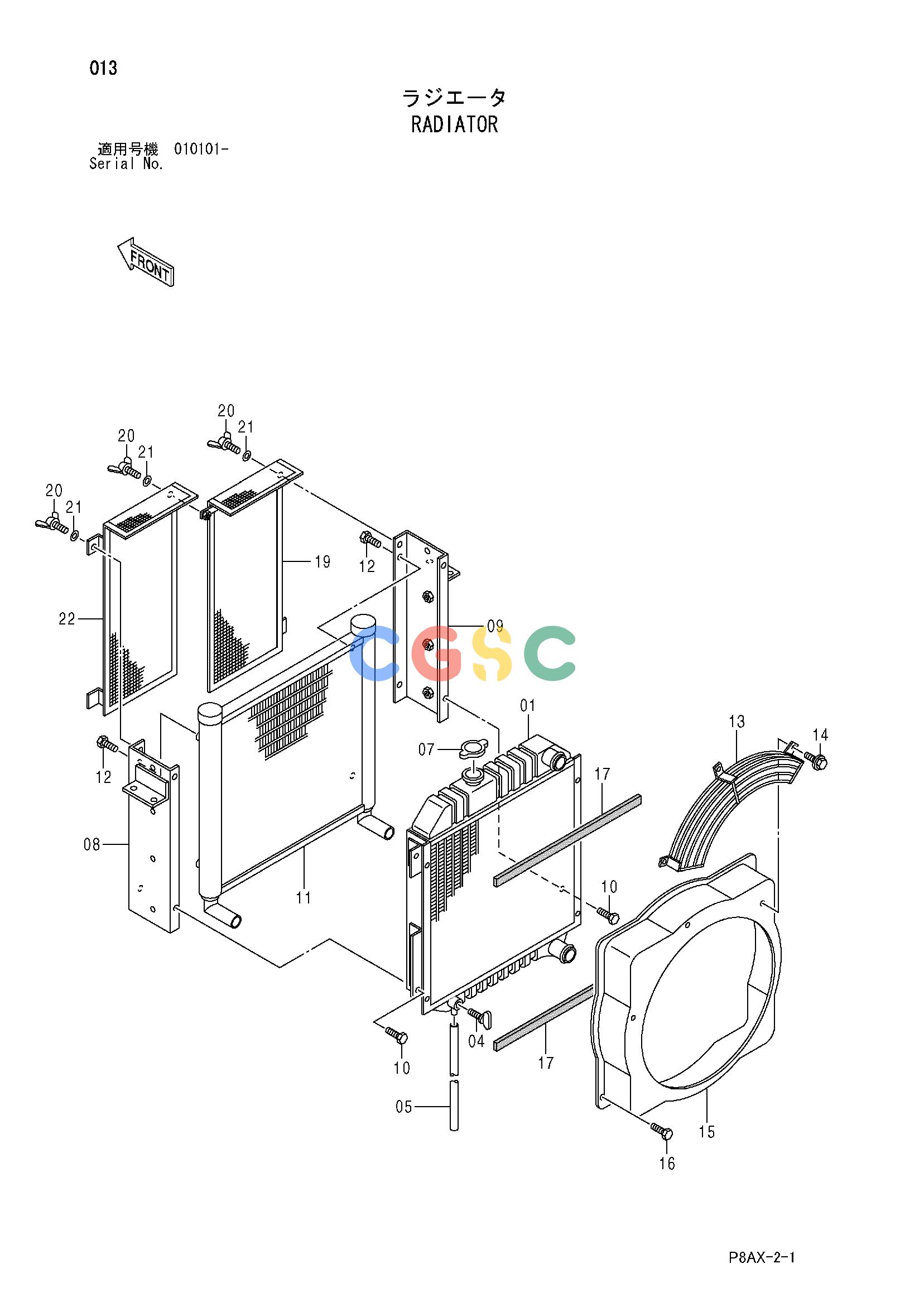

日立零件查询（CS125）RADIATOR Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
567 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 425124 | [1] | RADIATOR ASS'Y | |
| 01. | 425291 | [1] | CORE;RADIATOR | |
| 04. | 424669 | [1] | PLUG;DRAIN | |
| 05. | 425292 | [1] | HOSE | |
| 07. | 424718 | [1] | CAP | |
| 08. | 425293 | [1] | BRACKET | |
| 09. | 425294 | [1] | BRACKET | |
| 10. | 424730 | [4] | BOLT | |
| 11. | 425295 | [1] | COOLER;OIL | |
| 12. | 424730 | [4] | BOLT | |
| 13. | 425296 | [1] | GUARD;FAN | |
| 14. | 424730 | [3] | BOLT;SEMS | |
| 15. | 425297 | [1] | GUIDE;FAN | |
| 16. | 424730 | [4] | BOLT | |
| 17. | 425032 | [2] | PACKING | |
| 19. | 425050 | [1] | NET | |
| 20. | 424676 | [3] | BOLT;WING | |
| 21. | 424670 | [3] | WASHER | |
| 22. | 425049 | [1] | NET | |
