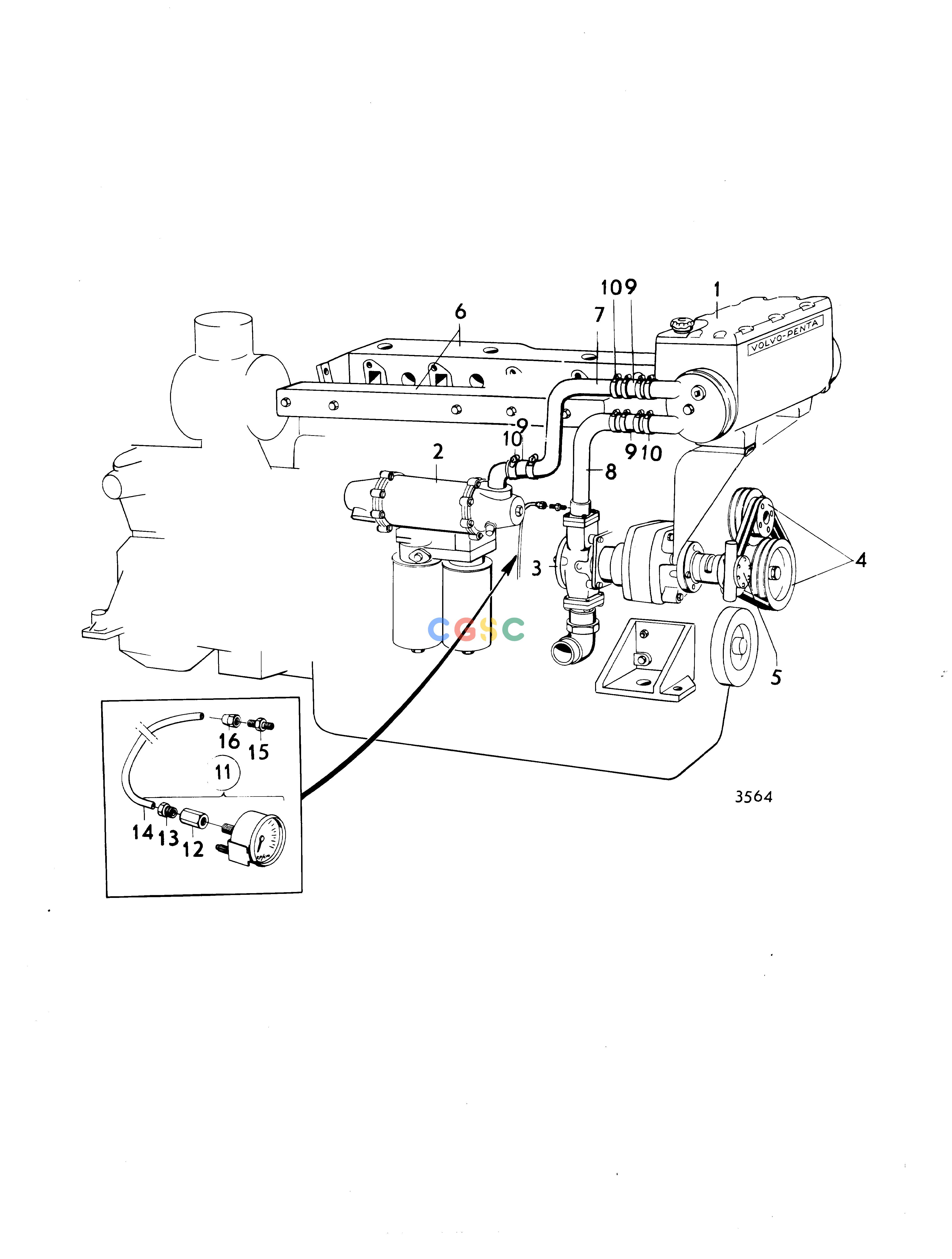

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCCooling SystemCooling System, Induction and Exhaust Manifold: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
619 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7742190_056
|
|
heat exchanger and thermostat with installation comps
|
|
| 2. |
7742190_059
|
|
oil cooler with installation comps
|
|
| 3. |
7742190_063
|
|
sea water pump with installation comps
|
|
| 4. |
7742190_068
|
|
circulation pump and drive device with installation comps
|
|
| 5. |
|
|
|
See group 9
|
| 6. |
7742190_070
|
|
induction and exhaust system
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
Alternator,high mounted., MO-XXXX/3456
|
| 7. |
837000
|
[1] |
Tube
|
MOXXXX/3457-
|
| 8. |
822626
|
[1] |
Coolant pipe
|
|
| 9. |
949478
|
[1] |
Rubber hose
|
L=110mm
|
| 10. |
994562
|
[12] |
Hose clamp
|
(951793)
|
| 11. |
819815
|
[1] |
Manometer kit
|
|
| 12. |
809410
|
[1] |
Nut
|
|
| 13. |
87698
|
[1] |
Fitting screw
|
|
| 14. |
954303
|
[1] |
Tube
|
L=5000mm
|
| 15. |
954334
|
[1] |
Nipple
|
|
| 16. |
954320
|
[1] |
Fitting nut
|
|
| 16. |
|
|
|
See group 9
|
