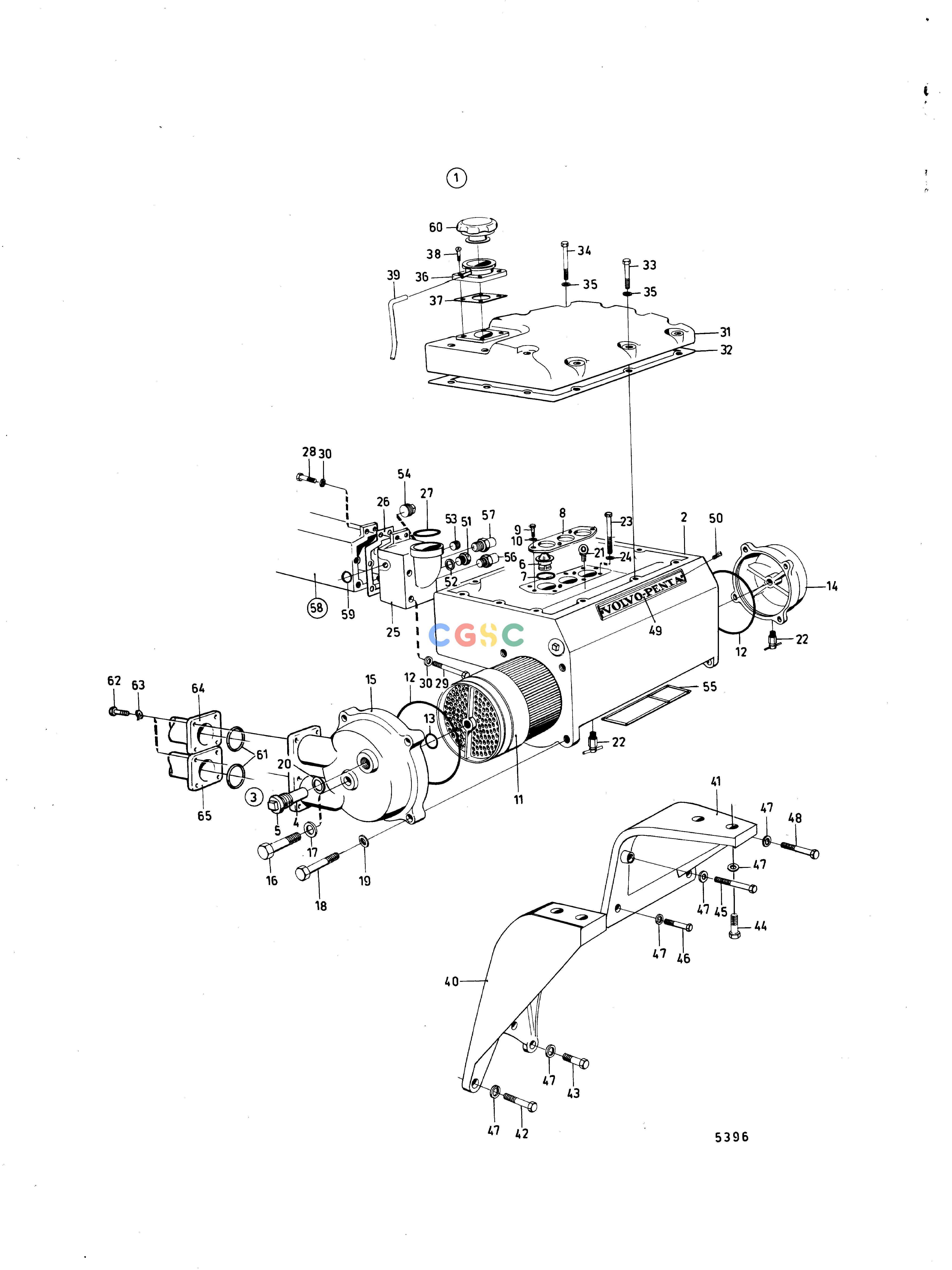

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCCooling SystemHeat Exchanger and Thermostat with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
737 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
844102
|
[1] |
Heat exchanger
|
|
| 2. |
822629
|
[1] |
Heat exchanger housi
|
|
| 3. |
823661
|
[4] |
Zinc anode
|
(823660) repl by 823661
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
1544390
|
[3] |
Thermostat
|
81-94°
|
| 7. |
416033
|
[3] |
Sealing ring
|
|
| 8. |
822628
|
[1] |
Thermostat retainer
|
|
| 9. |
942342
|
[4] |
Hexagon screw
|
|
| 10. |
941670
|
[4] |
Washer
|
|
| 11. |
822618
|
[1] |
Heat exchanger eleme
|
|
| 12. |
925278
|
[4] |
O-ring
|
|
| 13. |
955977
|
[1] |
O-ring
|
|
| 14. |
822621
|
[1] |
End cover
|
|
| 15. |
844040
|
[1] |
End cover
|
|
| 16. |
955598
|
[1] |
Hexagon screw
|
|
| 17. |
941912
|
[1] |
Spring washer
|
|
| 18. |
955536
|
[8] |
Hexagon screw
|
|
| 19. |
942336
|
[8] |
Spring washer
|
|
| 20. |
836169
|
[4] |
Gasket
|
|
| 21. |
803311
|
[1] |
Lifting eye
|
|
| 22. |
949918
|
[3] |
Shut-off cock
|
(82745)
|
| 23. |
959979
|
[6] |
Hexagon screw
|
|
| 24. |
942551
|
[6] |
Washer
|
|
| 25. |
822574
|
[1] |
End cover
|
|
| 26. |
822554
|
[1] |
Gasket
|
|
| 27. |
836746
|
[1] |
Sealing ring
|
|
| 28. |
955535
|
[2] |
Hexagon screw
|
|
| 29. |
942338
|
[4] |
Hexagon screw
|
|
| 30. |
942336
|
[6] |
Spring washer
|
|
| 31. |
822631
|
[1] |
Cover
|
|
| 32. |
822632
|
[1] |
Gasket
|
|
| 33. |
955536
|
[6] |
Hexagon screw
|
|
| 34. |
955538
|
[4] |
Hexagon screw
|
|
| 35. |
942336
|
[10] |
Spring washer
|
|
| 36. |
823580
|
[1] |
Filler neck
|
|
| 37. |
842137
|
[1] |
Gasket
|
|
| 38. |
950158
|
[4] |
Cross recessed sunk
|
|
| 39. |
192618
|
[1] |
Hose
|
L=1000mm
|
| 40. |
823036
|
[1] |
Bracket
|
|
| 41. |
820730
|
[1] |
Bracket
|
|
| 42. |
955541
|
[3] |
Hexagon screw
|
|
| 43. |
955535
|
[1] |
Hexagon screw
|
|
| 44. |
940162
|
[4] |
Hexagon screw
|
|
| 45. |
940156
|
[1] |
Hexagon screw
|
|
| 46. |
955539
|
[2] |
Hexagon screw
|
|
| 47. |
942336
|
[12] |
Spring washer
|
|
| 48. |
955543
|
[1] |
Hexagon screw
|
|
| 49. |
820232
|
[1] |
Sign
|
|
| 50. |
950210
|
[3] |
Cross recessed screw
|
|
| 51. |
180761
|
[1] |
Plug
|
Replaced by 1pc 1544389.
|
| 52. |
11996
|
[1] |
Gasket
|
Replaced by 1pc 1544389.
|
| 53. |
952077
|
[1] |
Plug
|
Replaced by 1pc 1544389.
|
| 54. |
190998
|
[1] |
Plug
|
|
| 55. |
423352
|
[1] |
Gasket
|
|
| 56. |
837044
|
[1] |
Temperature sensor
|
See group 3
|
| 57. |
|
|
|
See group 3
|
| 58. |
836841
|
[1] |
Exhaust pipe
|
|
| 59. |
822575
|
[6] |
Sealing ring
|
|
| 60. |
321973
|
[1] |
Filler cap
|
|
| 61. |
843584
|
[2] |
Gasket
|
|
| 62. |
956569
|
[8] |
Hex. socket screw
|
|
| 63. |
941907
|
[8] |
Spring washer
|
|
| 64. |
846237
|
[1] |
Tube
|
|
| 65. |
846239
|
[1] |
Tube
|
|
