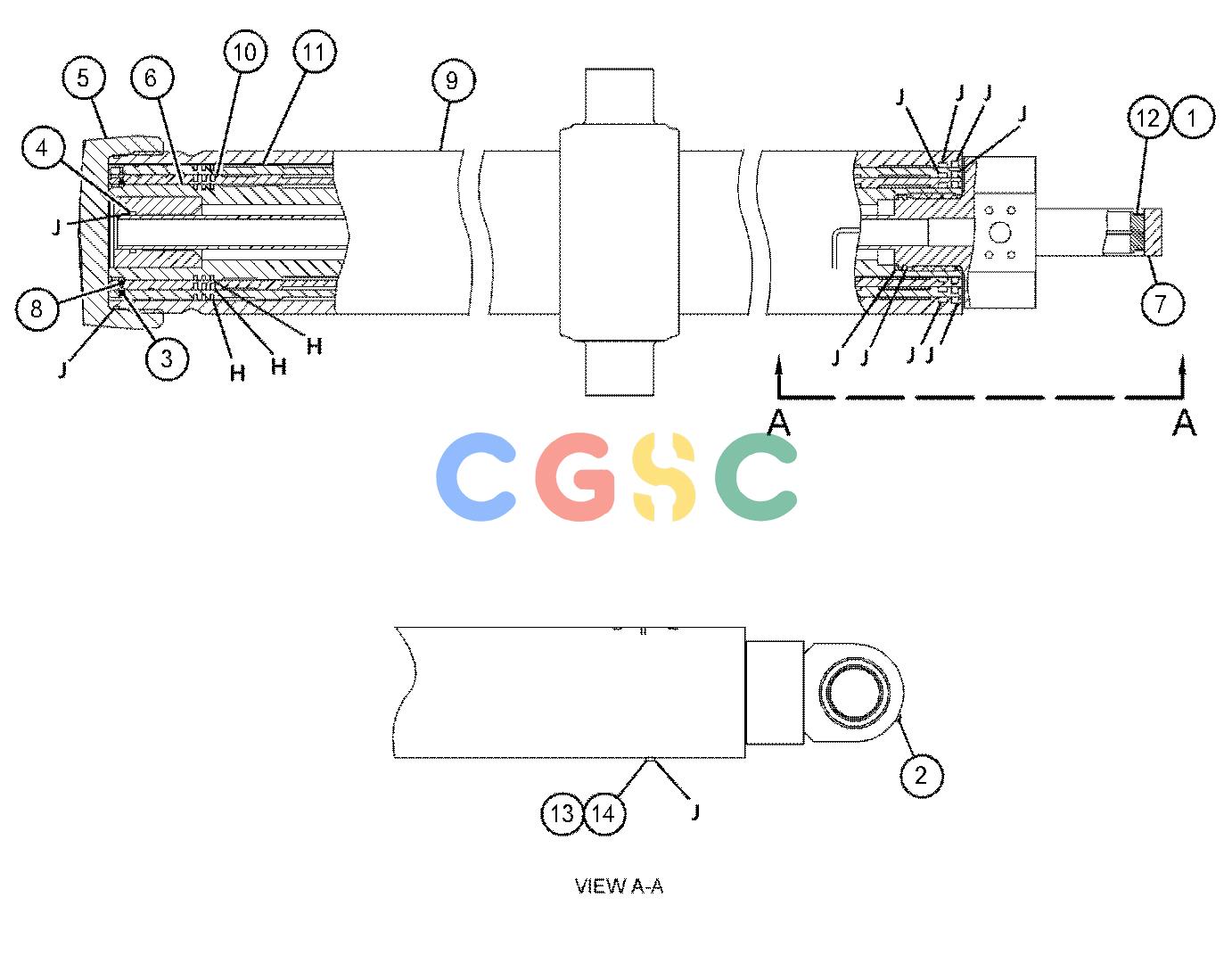

卡特零件查询（730） 443-8482: CYLINDER GP-EJECTOR
广数供应链运营团队, 15 02月, 2025，浏览：
915 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3E-5752 | [2] | RING-RETAINING | |
| 2. | 5W-2817 | [1] | FITTING-GREASE | |
| 3. | 174-9261 | [1] | RING-CLAMP | |
| 4. | 195-9771 | [1] | SEAL-O-RING | |
| 5. | 255-5539 | [1] | CAP | |
| 6. | 255-5541 | [1] | PISTON | |
| 7. | 255-5542 | [1] | ROD-EYE | |
| 8. | 257-2516 | [1] | RING-CLAMP | |
| 9. | 443-8495 | [1] | HOUSING-CYLINDER | |
| 10. | 443-8497 | [1] | TUBE-PISTON | |
| 11. | 443-8501 | [1] | TUBE | |
| 12. | 164-9309 | [1] | BEARING | |
| 13. | 262-9023 | [1] | RING-SEAL | |
| 14. | 6V-2316M | [1] | BOLT(M8X1.25X12-MM) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 257-2524H | [1] | KIT-SEAL | |
| | 306-8081J | [1] | KIT-SEAL | |
| | H | | (INCLUDES PARTS MARKED H IN GRAPHIC) |
| | J | | (INCLUDES PARTS MARKED J IN GRAPHIC) |
| | M | | METRIC PART |
