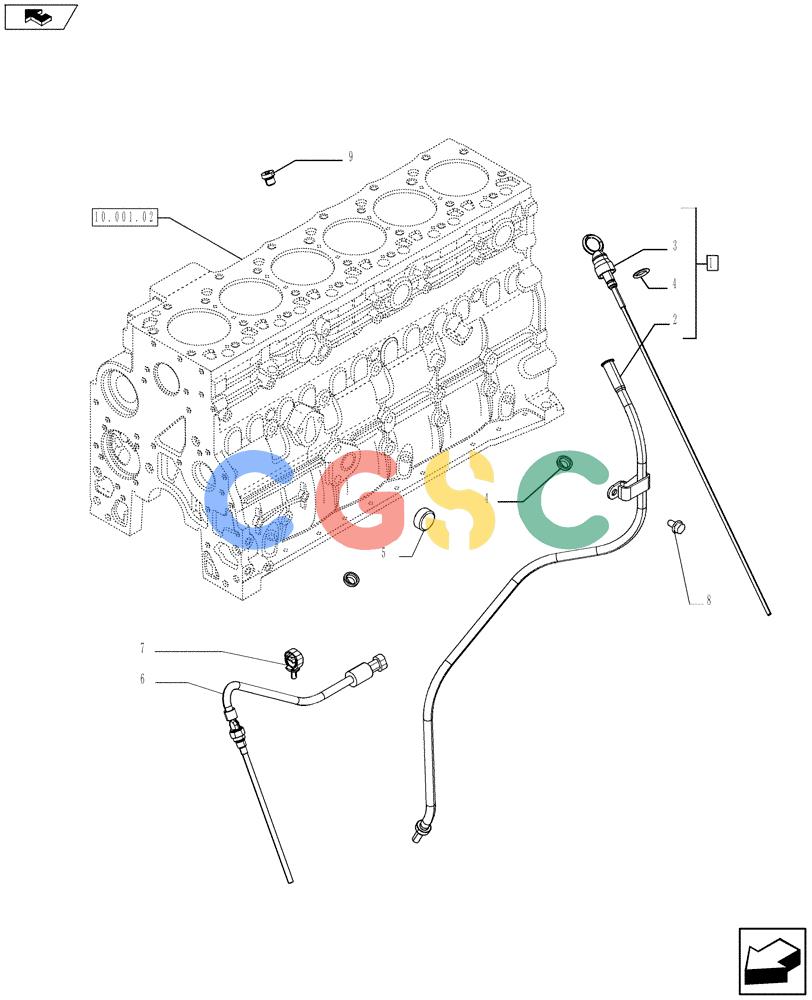

神钢零件查询(F4HFE613S A003) - ENGINE 504386128 - YN02P00090P1 (7/13-) (10.304.01) - OIL LEVEL CHECK (504382288 - 504088054) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
375 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84341733 | [1] | DIPSTICK | TORASSY Superseded by part number: |
| 2. | 84374148 | [1] | RIGID TUBE | SM Superseded by part number: |
| 3. | 84347592 | [1] | DIPSTICK | SM Superseded by part number: |
| 4. | 4895406 | [2] | EXPANSION PLUG,9.8mm OD | TOR |
| 5. | 4895037 | [1] | EXPANSION PLUG,32.03mm | TOR |
| 6. | 2854318 | [1] | SWITCH | TOROIL GAUGE Superseded by part number: 504025613 |
| 7. | 2853428 | [1] | BRACKET | TOR Superseded by part number: 504046336 |
| 8. | 16597924 | [1] | SCREW,M8 x 14mm | TOR Superseded by part number: 16597925 |
| 9. | 4897330 | [1] | HEX SOCKET PLUG,M12 x 1.5 | TOR |
