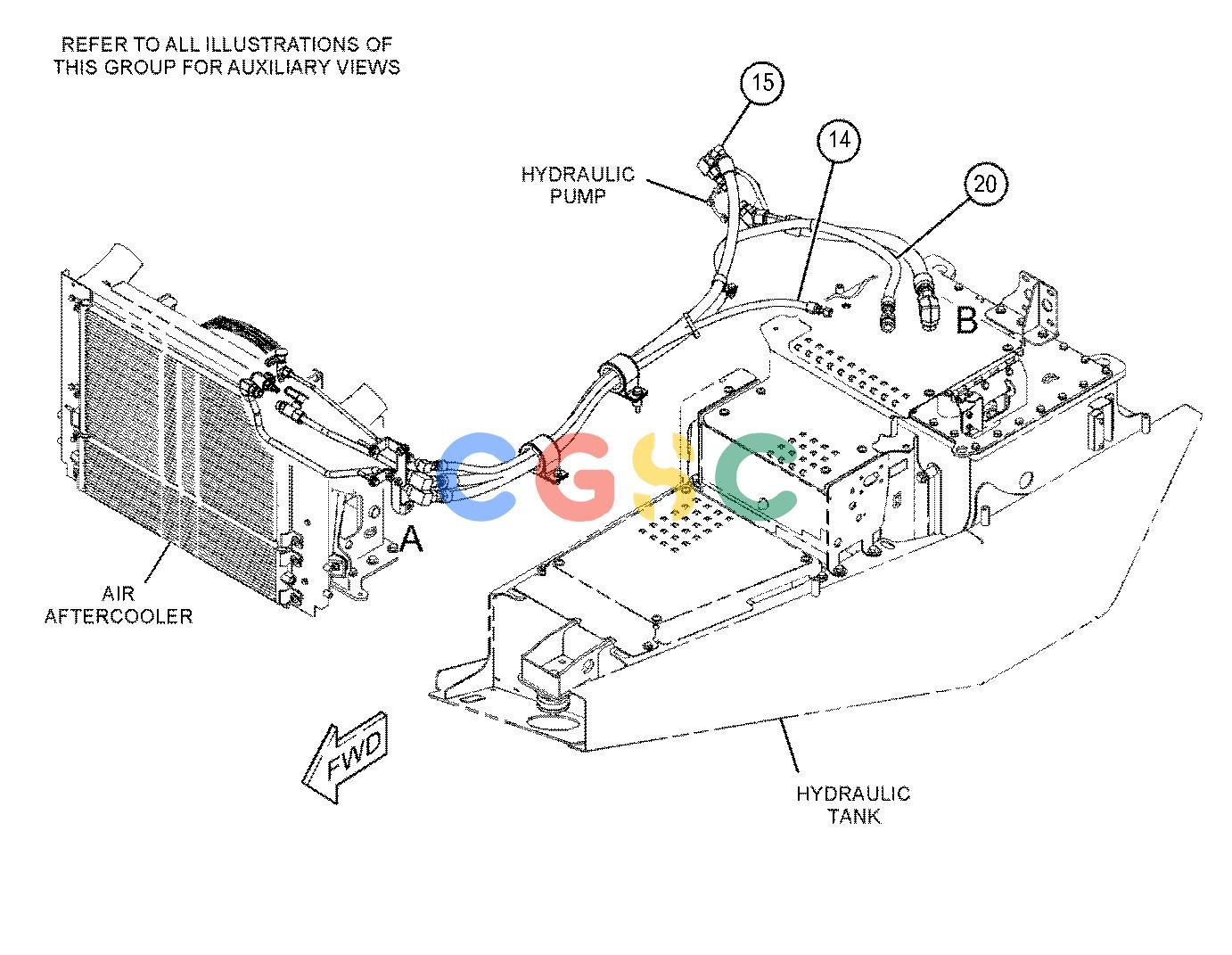

卡特零件查询（730） 523-3015: LINES GP-DRAIN
广数供应链运营团队, 15 02月, 2025，浏览：
533 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0456 | [3] | STRAP | |
| 2. | 135-2042I | [1] | HOSE AS | |
| 3. | 148-8336 | [3] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 4. | 148-8449 | [1] | TEE AS-SWIVEL | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| | 6V-9839 | [1] | TEE-SWIVEL | |
| 5. | 153-6244 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 8T-5389 | [1] | ELBOW | |
| 6. | 265-0664 | [1] | TUBE AS | |
| 7. | 290-5562 | [1] | MOUNT(DUAL SWIVEL) | |
| 8. | 321-8662 | [1] | ELBOW AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 321-8661 | [1] | ELBOW | |
| 9. | 444-6831 | [1] | TUBE AS | |
| 10. | 444-6919I | [1] | HOSE AS | |
| 11. | 524-9309I | [1] | HOSE AS | |
| 12. | 162-0177 | [1] | PLUG AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| 13. | 6V-8397 | [1] | SEAL-O-RING | |
| 14. | 7B-1597 | [1] | CLIP | |
| 15. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 16. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
