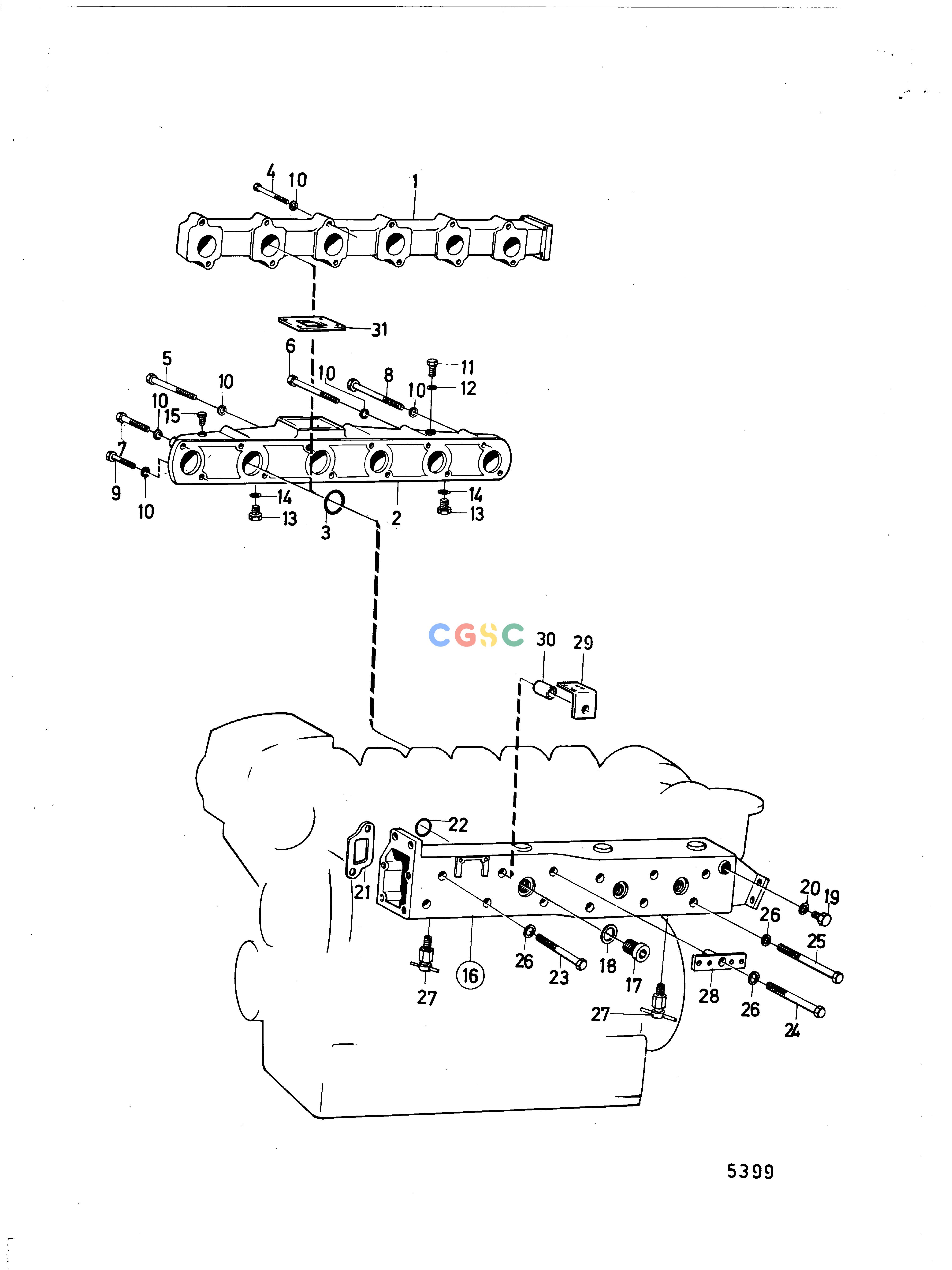

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCCooling SystemInduction and Exhaust Manifold with Installation Components: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
1008 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
820831
|
[1] |
Inlet manifold
|
|
| 3. |
423174
|
[6] |
Rubber ring
|
|
| 4. |
955529
|
[12] |
Hexagon screw
|
|
| 10. |
941907
|
[12] |
Spring washer
|
|
| 16. |
824128
|
[1] |
Exhaust pipe
|
|
| 17. |
467367
|
[6] |
Plug
|
(467649)
|
| 18. |
469328
|
[6] |
Gasket
|
|
| 19. |
191086
|
[1] |
Plug
|
|
| 20. |
190957
|
[1] |
Gasket
|
|
| 21. |
468647
|
[6] |
Gasket
|
|
| 22. |
822575
|
[6] |
Sealing ring
|
|
| 23. |
942547
|
[5] |
Hexagon screw
|
|
| 24. |
192058
|
[1] |
Hexagon screw
|
Spec. 867054, 867057 MO-XXXXX/6621, 867132. D70BK alt., L=152mm
|
| 24. |
959800
|
[1] |
Hexagon screw
|
Spec. 867054, 867132., L=178mm
|
| 25. |
941252
|
[6] |
Hexagon screw
|
L=171mm
|
| 26. |
942336
|
[12] |
Spring washer
|
|
| 27. |
949918
|
[2] |
Shut-off cock
|
|
| 28. |
822546
|
[1] |
Bracket
|
See group 2C
|
