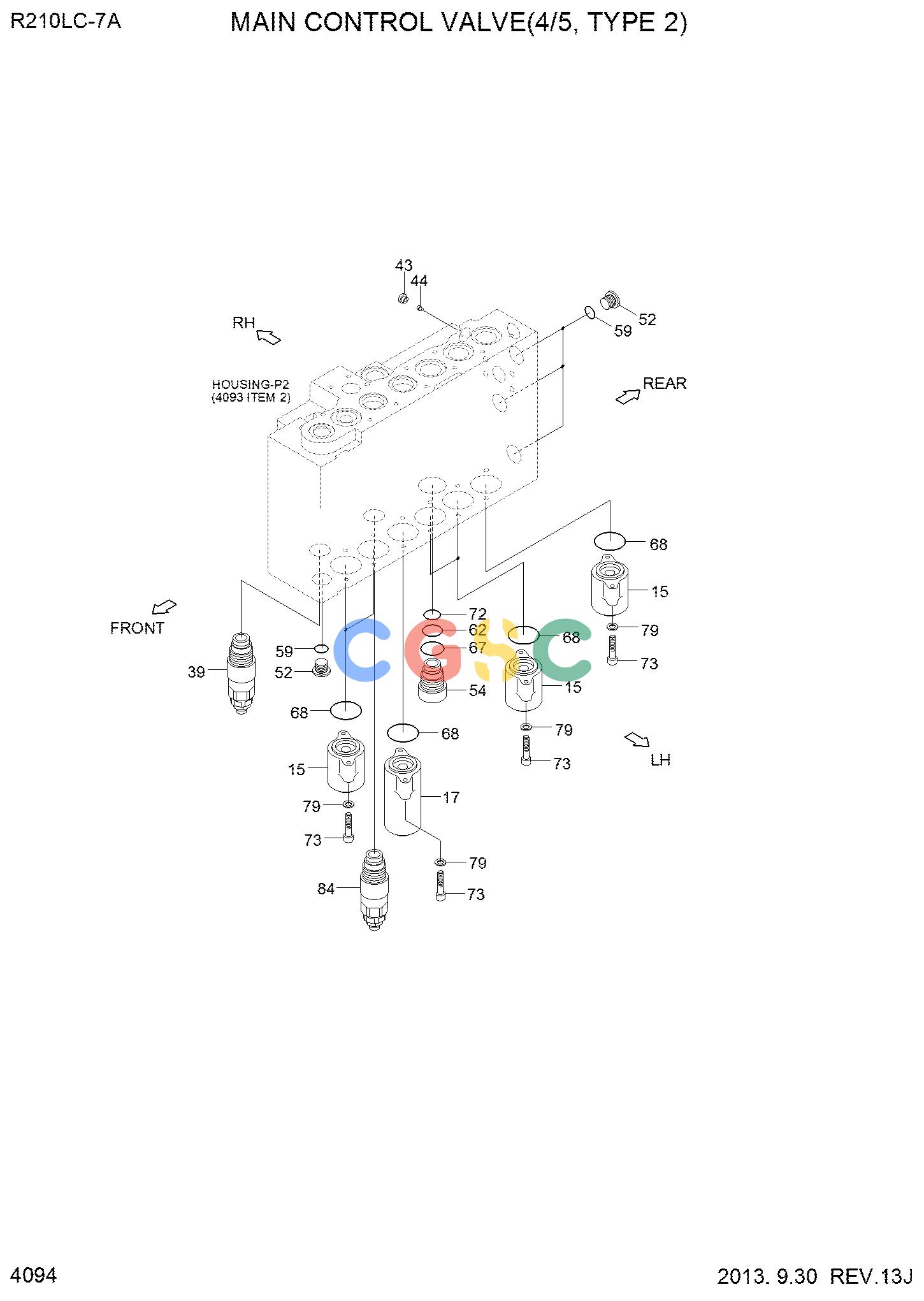

现代零件查询R210LC-7A MAIN CONTROL VALVE(4/5, TYPE2)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
739 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
MAIN CONTROL VALVE
|
|
| 15. |
XKBF-01242
|
[3] |
COVER A-PILOT
|
|
| 17. |
XKBF-01449
|
[1] |
COVER B3-PILOT
|
|
| 17. |
XKBF-01618
|
[1] |
COVER B3-PILOT
|
|
| 29. |
XKBF-01449
|
[1] |
COVER B3-PILOT
|
|
| 30. |
XKBF-01449
|
[1] |
COVER B3-PILOT
|
|
| 31. |
XKBF-01449
|
[1] |
COVER B3-PILOT
|
|
| 32. |
XKBF-01449
|
[1] |
COVER B3-PILOT
|
|
| 39. |
XKBF-01452
|
[1] |
RELIEF VALVE-OVERLOAD
|
|
| 43. |
XKBF-00399
|
[1] |
ORIFICE-SIGNAL
|
|
| 44. |
XKBF-00922
|
[1] |
FILTER-COIN TYPE
|
|
| 52. |
XKBF-00933
|
[4] |
PLUG
|
|
| 54. |
XKBF-01277
|
[1] |
PLUG
|
|
| 59. |
XKBF-00940
|
[4] |
O-RING
|
|
| 62. |
XKBF-00680
|
[1] |
O-RING
|
|
| 67. |
XKBF-01074
|
[1] |
O-RING
|
|
| 68. |
XKBF-00416
|
[6] |
O-RING
|
|
| 72. |
XKBF-01193
|
[1] |
RING-BACK UP
|
|
| 73. |
XKBF-01284
|
[6] |
BOLT-SOCKET
|
|
| 79. |
XKBF-00425
|
[6] |
WASHER
|
|
| 84. |
XKBF-01582
|
[1] |
RELIEF VALVE-OVERLOAD
|
|
