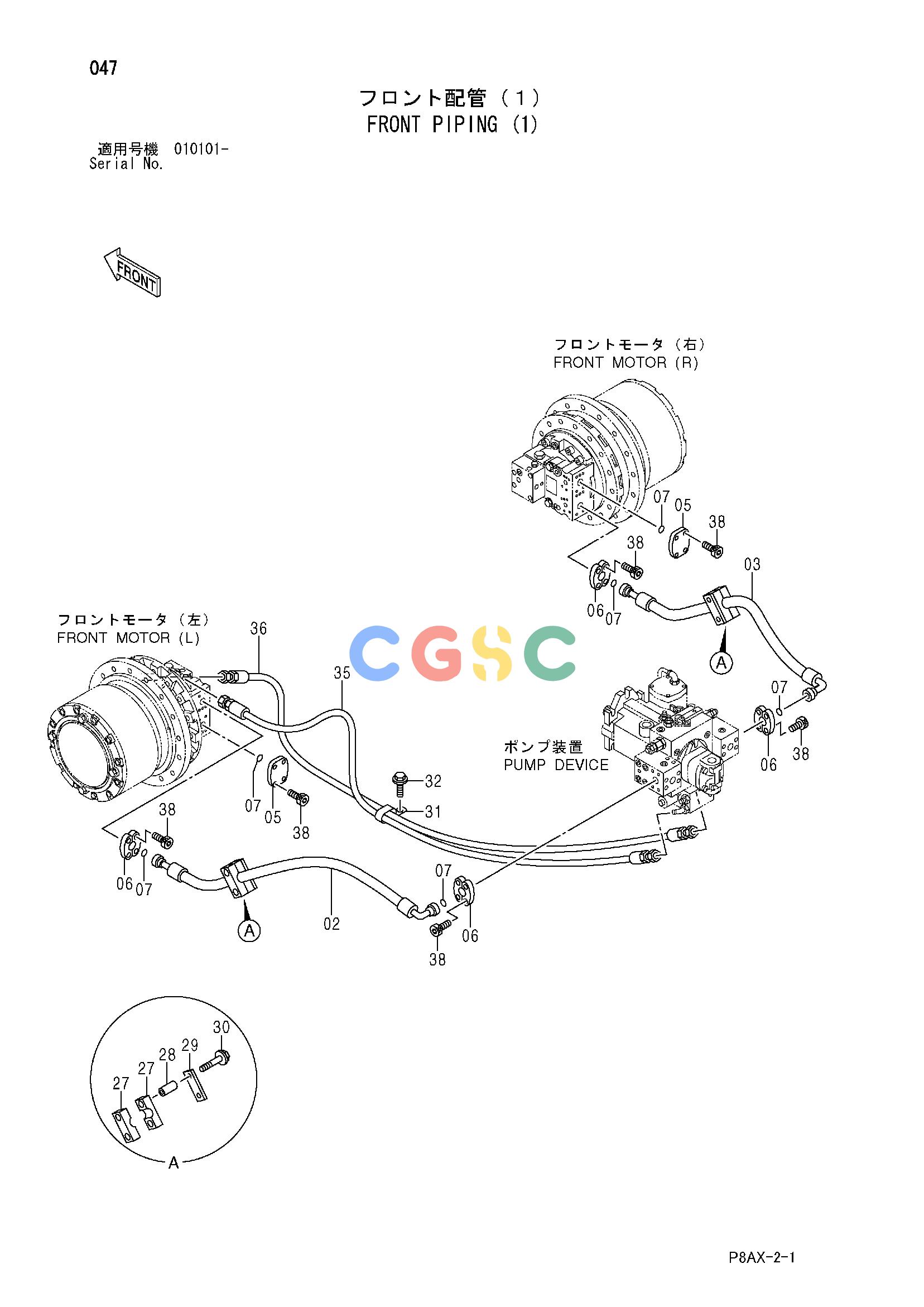

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 02. | 425159 | [1] | HOSE | |
| 03. | 425160 | [1] | HOSE | |
| 05. | 425170 | [2] | FLANGE | |
| 06. | 438316 | [8] | FLANGE;SPLIT | |
| 07. | 813443 | [6] | O-RING | |
| 27. | 425029 | [4] | CLAMP | |
| 28. | 425031 | [4] | SPACER | |
| 29. | 425030 | [2] | PLATE | |
| 30. | 500149 | [4] | BOLT;SEMS | |
| 31. | 424949 | [1] | CLIP | |
| 32. | 500048 | [1] | BOLT;SEMS | |
| 35. | 424983 | [1] | HOSE | |
| 36. | 424984 | [1] | HOSE | |
| 38. | 947805 | [24] | BOLT;SOCKET |
