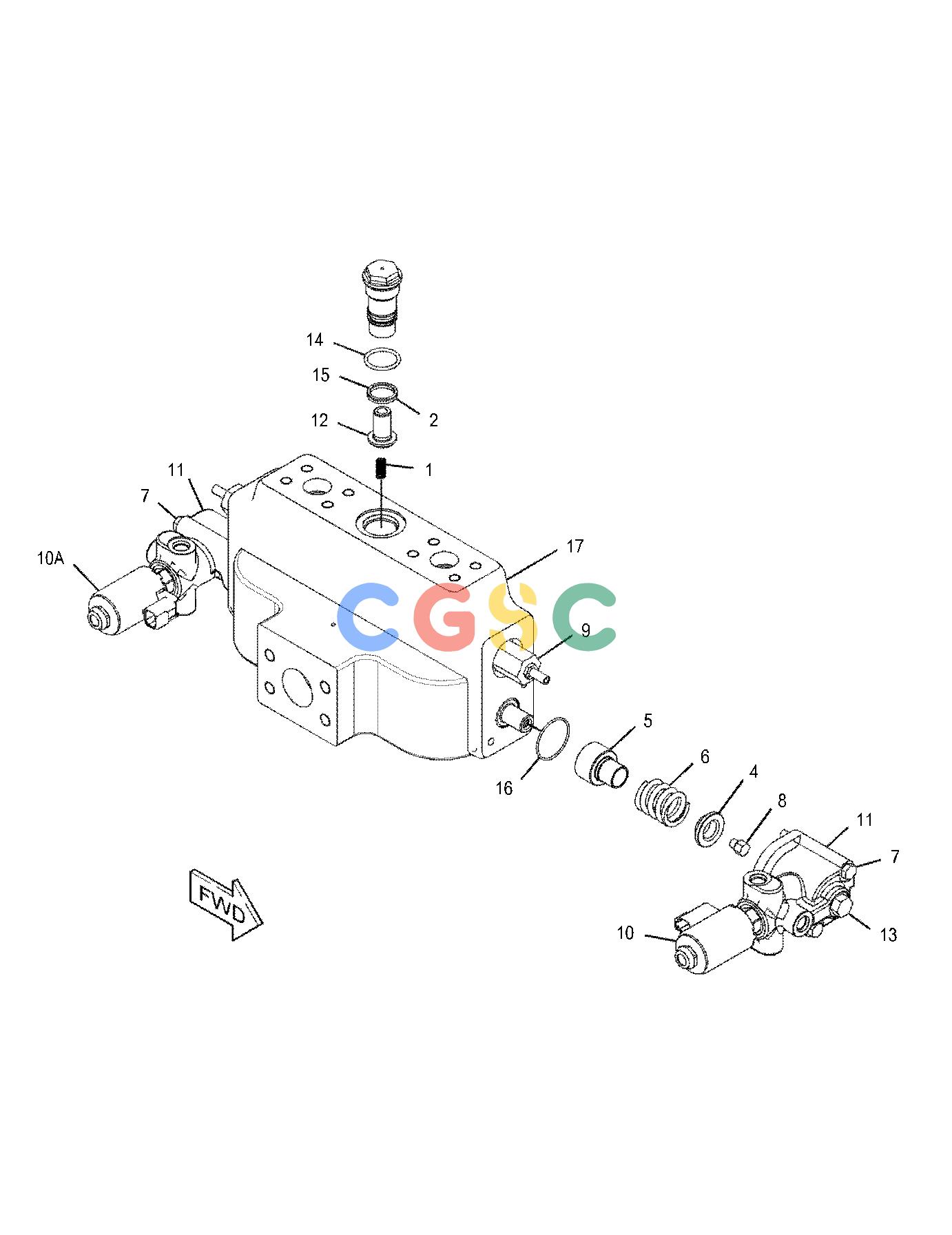

卡特零件查询（730） 260-0286: VALVE GP-HOIST CONTROL
广数供应链运营团队, 15 02月, 2025，浏览：
723 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2S-2596 | [1] | SPRING | |
| 2. | 7J-9933 | [1] | SEAL-O-RING | |
| 4. | 207-7434 | [2] | RETAINER | |
| 5. | 207-7435 | [2] | RETAINER | |
| 6. | 207-7437 | [2] | SPRING | |
| 7. | 8T-3647M | [4] | BOLT(M8X1.25X80-MM) | |
| 8. | 367-6001 | [1] | PLUG AS | |
| | 4J-7533 | [1] | SEAL-O-RING | |
| | 360-3675 | [1] | PLUG(5/16-24-THD) | |
| 9. | 252-5121J | [2] | VALVE GP-RELIEF(HOIST) | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 095-1751 | [1] | SEAL-O-RING | |
| | 169-1616 | [2] | RING-BACKUP | |
| 10. | 313-7668Y | [1] | VALVE GP-SOLENOID(24-VOLT)(LOWER) | |
| 10A. | 313-7668Y | [1] | VALVE GP-SOLENOID(24-VOLT)(RAISE) | |
| 11. | 418-7813 | [2] | HOUSING-SPRING | |
| 12. | 100-8010 | [1] | VALVE-CHECK | |
| 13. | 366-4699 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 360-3692 | [1] | PLUG | |
| 14. | 4K-1388 | [1] | SEAL-O-RING | |
| 15. | 4T-5073 | [1] | RING-BACKUP | |
| 16. | 1R-5318 | [2] | SEAL-O-RING | |
| 17. | | [1] | BODY |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 200-6283J | [1] | KIT-SEAL(RELIEF VALVE) | |
| | | | (INCLUDES SEAL-O-RINGS & BACKUP RINGS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
