纽荷兰零件查询(FD20) - CRAWLER DOZER (D3.40/1[001]) - TRACK New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
429 次

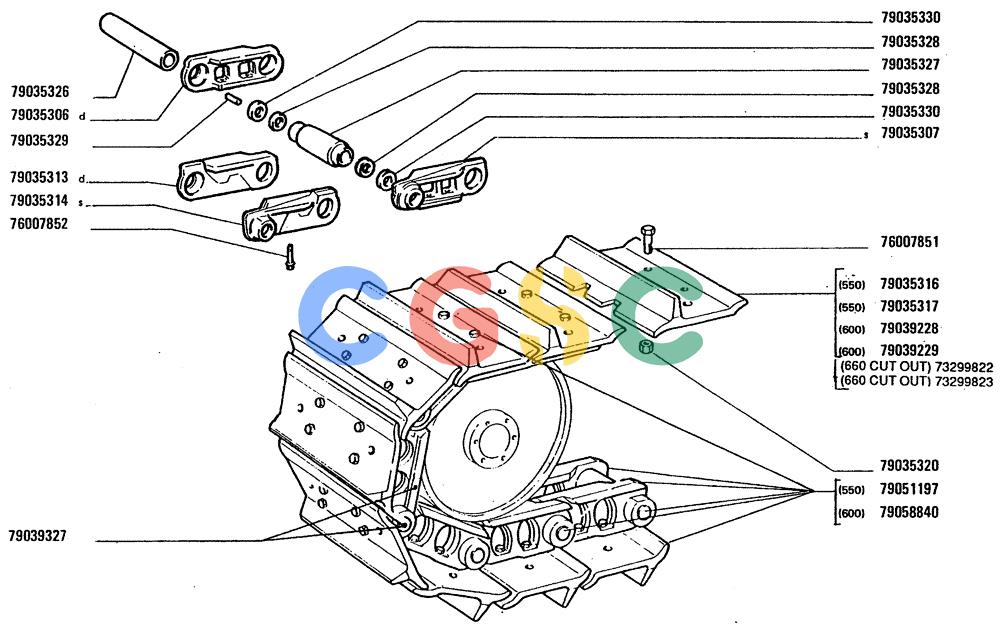

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 76007851. | 76007851 | [1] | SCREW | LEC Superseded by part number: 76030144 |
| 76007852. | 76007852 | [8] | SCREW | LEC Superseded by part number: 76030145 |
| 79035306. | 79035306 | [78] | TRACK LINK | LECLINK Superseded by part number: 79082216 |
| 79035307. | 79035307 | [78] | TRACK LINK | LECLINK Superseded by part number: 79082217 |
| 79035313. | 79035313 | [2] | CONNECTING LINK | LECLINK Superseded by part number: 79071625 |
| 79035314. | 79035314 | [2] | CONNECTING LINK | LECLINK Superseded by part number: 79082219 |
| 79035316. | 79035316 | [78] | TRACK SHOE | LECSHOE Superseded by part number: 76019759 |
| 79035317. | 79035317 | [2] | TRACK SHOE | LECSHOE Superseded by part number: 76019760 |
| 79035320. | 79035320 | [1] | NUT | LEC Superseded by part number: 76030146 |
| 79035326. | 79035326 | [80] | PIN | LEC |
| 79035327. | 79035327 | [80] | BUSHING | LECBUSH |
| 79035328. | 79035328 | [1] | SPACER,48mm ID x 54.8mm OD x 10.8mm L | LEC |
| 79035329. | 79035329 | [80] | PLUG | LEC Superseded by part number: 79082221 |
| 79035330. | 79035330 | [1] | GASKET | LECPAD Superseded by part number: 79082220 |
| 79039228. | 79039228 | [78] | TRACK SHOE | LECFRAME Superseded by part number: 76027876 |
| 79039229. | 79039229 | [2] | TRACK SHOE | LECFRAME Superseded by part number: 76027873 |
| 79039327. | 79039327 | [2] | TRACK ASSY | LECCHAIN Superseded by part number: 79077857 |
| 79051197. | 79051197 | [2] | TRACK ASSY | LEC. Superseded by part number: 79077857, 79035316, 79035317, 76007851, 76007852, 79035320 |
| 79058840. | 79058840 | [2] | TRACK ASSY | LEC. Superseded by part number: 79039228, 79039327, 79039229, 79035320, 76007852, 76007851 |
| 73259822. | 73259822 | [2] | TRACK SHOE | NHSHOE (MASTER) (660 CUT OUT) |
| 73259823. | 73259823 | [78] | TRACK SHOE | NHSHOE (660 CUT OUT) |
