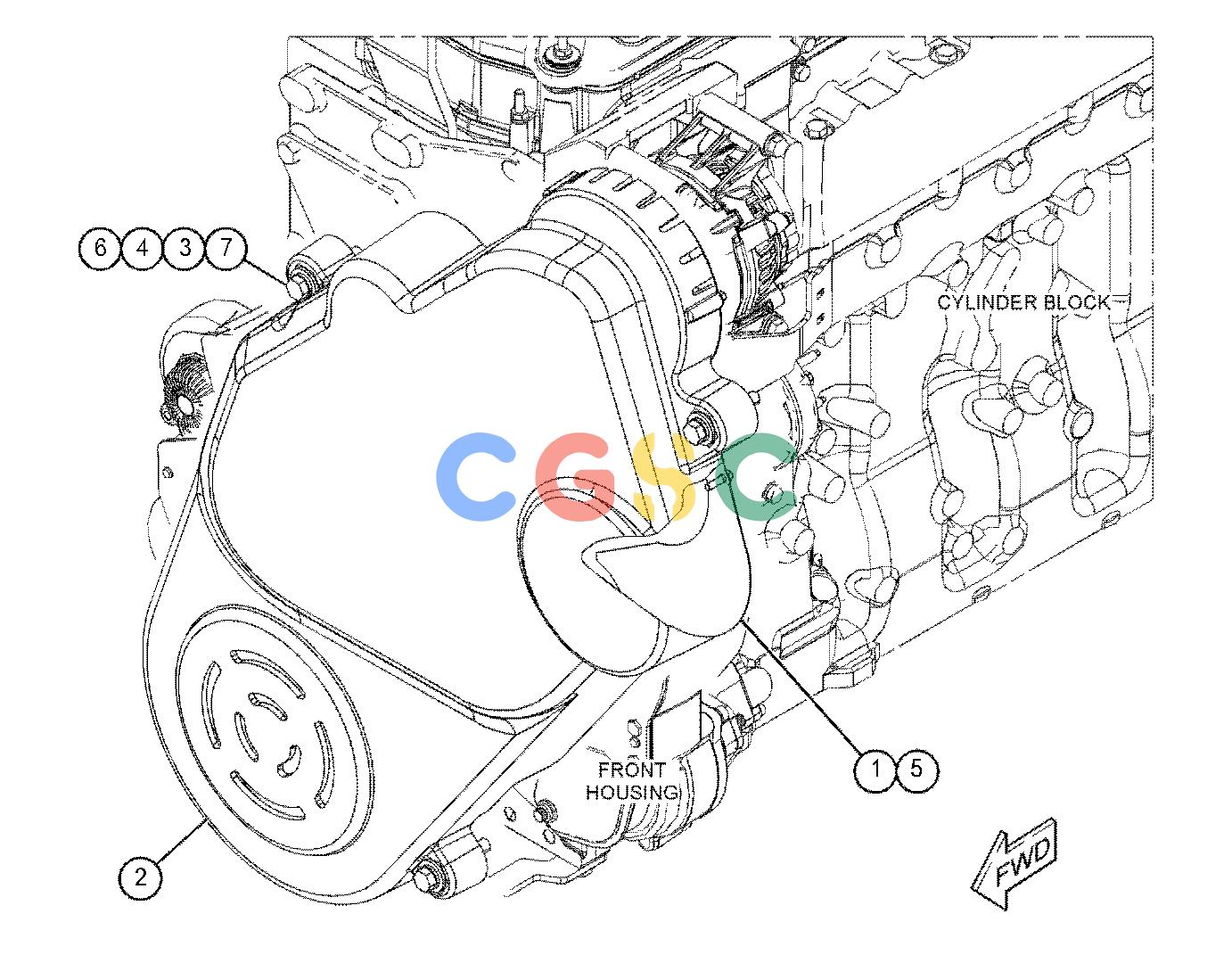

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 441-5627 | [1] | PLATE | |
| 2. | 508-6274 | [1] | GUARD-BELT | |
| 3. | 3B-4508 | [1] | LOCKWASHER | |
| 4. | 156-4522 | [3] | WASHER-HARD(14X30X3-MM THK) | |
| 5. | 266-3314M | [3] | BOLT-FLANGE HEAD(M6X1X20.5-MM) | |
| 6. | 8R-8847 | [3] | RETAINER-SPRING | |
| 7. | 8T-4648M | [3] | BOLT(M12X1.75X70-MM) | |
| M | METRIC PART | |||
