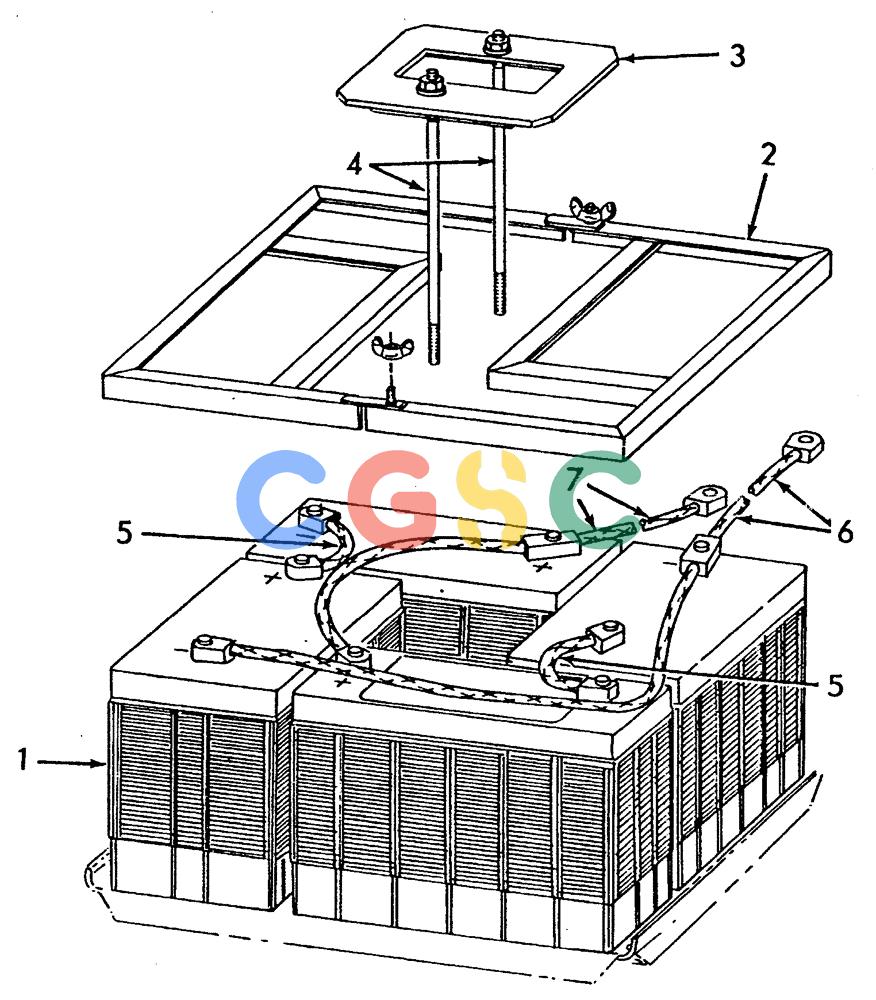

纽荷兰零件查询(FD20) - CRAWLER DOZER (F3.01[001]) - BATTERIES AND CABLES (SPECIAL) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
914 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73128209 | [4] | DRY BATTERY | LECBATTERY (MAINTENANCE FREE) Superseded by part number: 75121255 |
| 2. | 73131170 | [2] | BRACKET | NH |
| 3. | 73130217 | [1] | TIE-ROD | NHHOLD DOWN |
| 3. | 70904206 | [2] | LOCK WASHER | MKTLOCKWASHER Superseded by part number: 80680 |
| 3. | 70915815 | [2] | WASHER | BHBNUT |
| 4. | 73110747 | [2] | ROD | NH |
| 4. | 10571771 | [2] | LOCK WASHER,M8 | CASLOCKWASHER Superseded by part number: 83990583 |
| 4. | 10102001 | [2] | WING NUT | TTFWING Superseded by part number: 10102004 |
| 5. | 73132982 | [2] | CABLE | NHASSY. |
| 6. | 73152911 | [1] | WIRE HARNESS | NHCABLE ASSY.(DISCONNECT SWITCH) |
| 7. | 73132983 | [1] | CABLE | NHASSY. (STARTER) |
