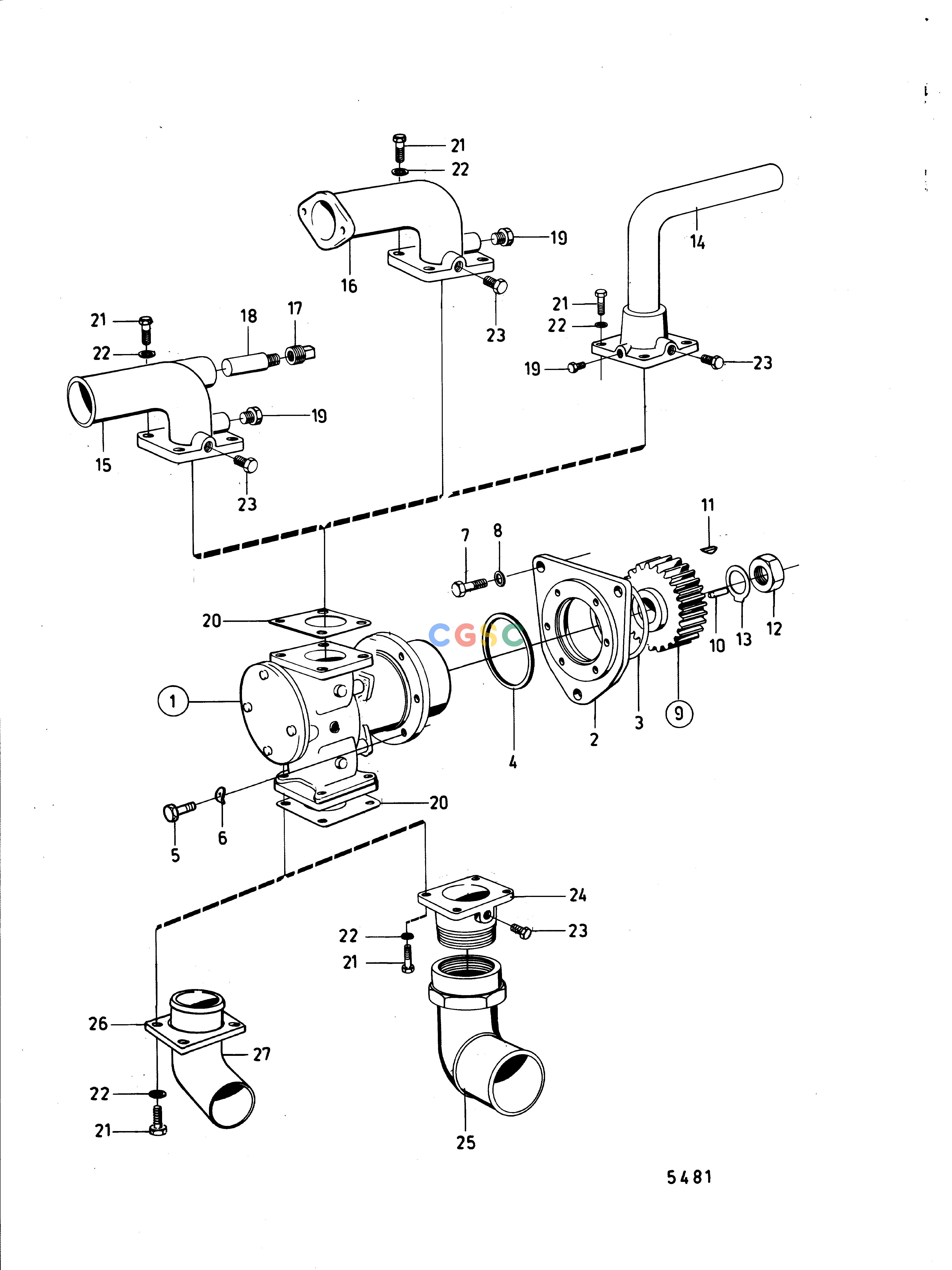

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCCooling SystemSea Water Pump with Installation Components: CEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
500 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
822787
|
[1] |
Sea water pump
|
|
| 2. |
820695
|
[1] |
Spacer
|
|
| 3. |
925095
|
[1] |
O-ring
|
|
| 4. |
413619
|
[1] |
Gasket
|
|
| 5. |
940114
|
[3] |
Hexagon screw
|
|
| 6. |
942336
|
[3] |
Spring washer
|
|
| 7. |
955576
|
[3] |
Hexagon screw
|
|
| 8. |
941911
|
[3] |
Spring washer
|
|
| 9. |
820957
|
[1] |
Gear
|
Replaced by 1 PC 843563,1 PC 823499., See group 2A
|
| 10. |
950564
|
[1] |
Pin
|
See group 2A
|
| 11. |
942406
|
[1] |
Woodruff key
|
|
| 12. |
955860
|
[1] |
Hexagon nut
|
|
| 13. |
942735
|
[1] |
Tab washer
|
|
| 15. |
836036
|
[1] |
End cover
|
|
| 17. |
800475
|
[1] |
Plug
|
|
| 18. |
800476
|
[1] |
Zinc electrode
|
|
| 19. |
180759
|
[1] |
Plug
|
|
| 20. |
820877
|
[2] |
Gasket
|
|
| 21. |
940114
|
[8] |
Hexagon screw
|
|
| 22. |
942336
|
[8] |
Spring washer
|
|
| 23. |
192134
|
[1] |
Plug
|
|
| 24. |
|
|
|
Early production D70B spec. 867055.
|
| 25. |
|
|
|
Early production D70B spec. 867055.
|
| 26. |
842029
|
[1] |
Flange
|
|
| 27. |
842028
|
[1] |
Hose attachment
|
|
