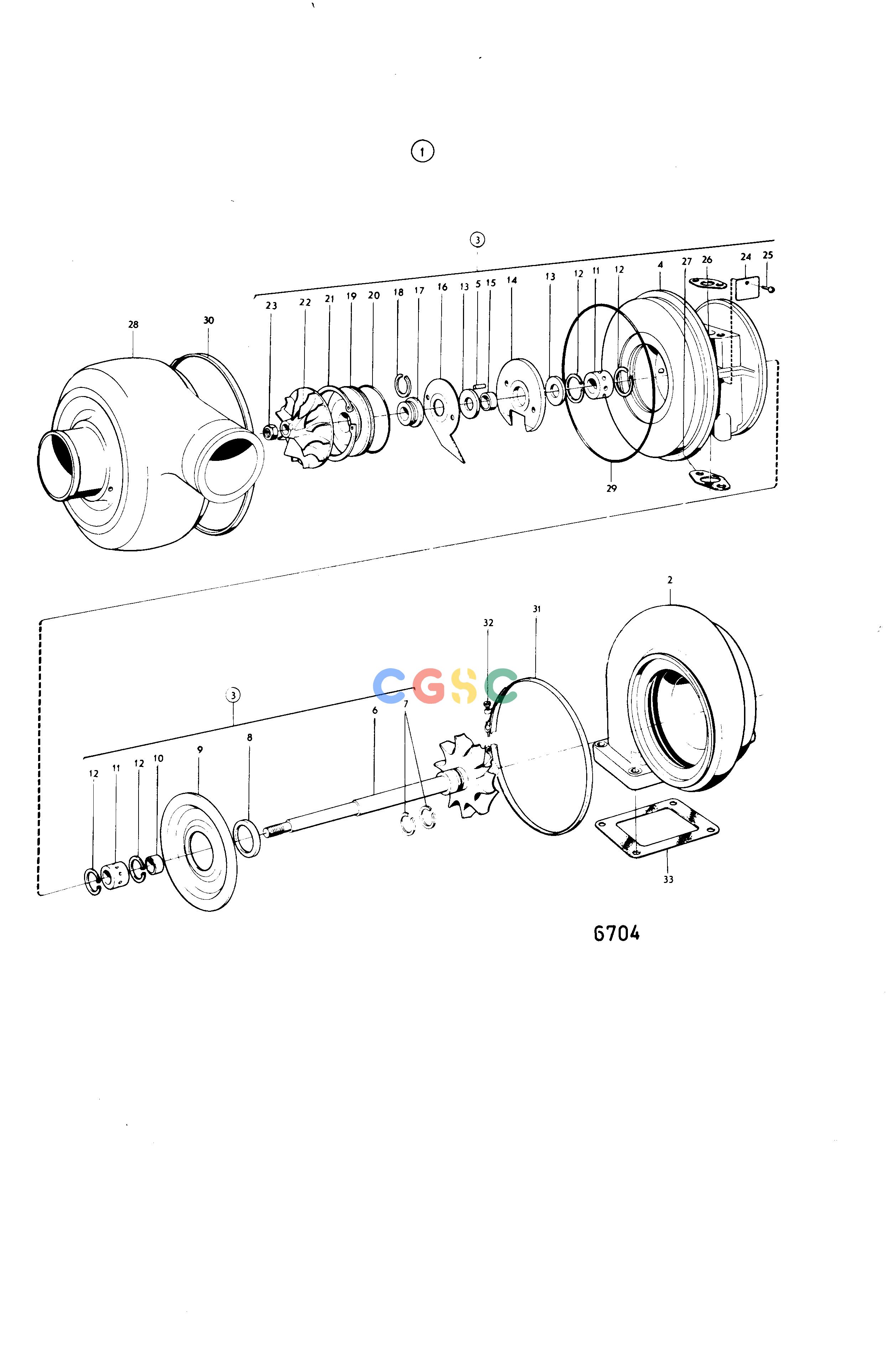

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCCooling SystemTurboEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
194 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
|
|
|
|
| 3. |
836136
|
[1] |
Rotor
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
422659
|
[1] |
Turbine rotor
|
|
| 7. |
|
|
|
|
| 8. |
422360
|
[1] |
Lock ring
|
|
| 9. |
|
|
|
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
417727
|
[4] |
Lock ring
|
|
| 13. |
|
|
|
|
| 14. |
|
|
|
|
| 15. |
422660
|
[1] |
Spacer sleeve
|
|
| 16. |
422662
|
[1] |
Splash plate
|
|
| 17. |
422661
|
[1] |
Ring retainer
|
|
| 18. |
|
|
|
|
| 19. |
420466
|
[1] |
Cover
|
|
| 20. |
|
|
|
|
| 21. |
420467
|
[1] |
Lock ring
|
|
| 22. |
423521
|
[1] |
Compressor wheel
|
|
| 23. |
1518784
|
[1] |
Nut
|
(422669)
|
| 24. |
|
|
|
|
| 25. |
|
|
|
|
| 26. |
417378
|
[1] |
Gasket
|
|
| 27. |
417381
|
[1] |
Gasket
|
|
| 28. |
|
|
|
|
| 29. |
422668
|
[1] |
Rubber ring
|
|
| 30. |
422666
|
[1] |
Clamp
|
|
| 31. |
422667
|
[1] |
Clamp
|
|
| 32. |
|
|
|
(420473)
|
| 33. |
417382
|
[1] |
Gasket
|
|
| 33. |
273179
|
[1] |
Repair kit
|
|
