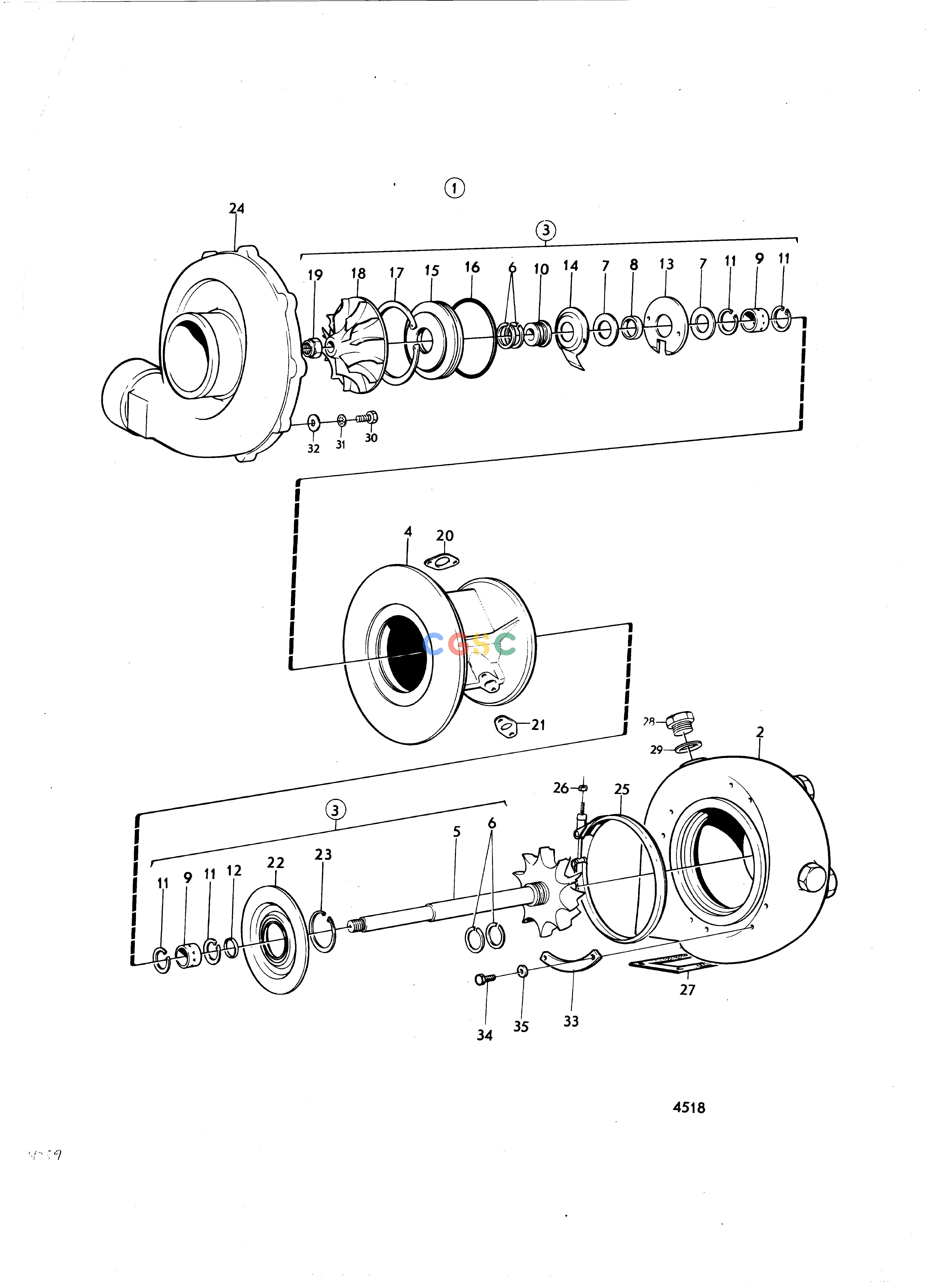

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCCooling SystemTurbo: 842427EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
1027 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 1. |
3802009
|
[1] |
Turbocharger
|
|
| 2. |
|
|
|
|
| 3. |
843420
|
[1] |
Rotor
|
|
| 4. |
|
|
|
|
| 5. |
467554
|
[1] |
Turbine rotor
|
|
| 6. |
|
|
|
|
| 7. |
467026
|
[2] |
Thrust ring
|
|
| 8. |
422660
|
[1] |
Spacer sleeve
|
|
| 9. |
|
|
|
|
| 10. |
467556
|
[1] |
Ring retainer
|
|
| 11. |
417727
|
[4] |
Lock ring
|
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
| 14. |
422662
|
[1] |
Splash plate
|
|
| 15. |
467557
|
[1] |
Insert
|
|
| 16. |
|
|
|
|
| 17. |
420467
|
[1] |
Lock ring
|
|
| 18. |
467558
|
[1] |
Compressor wheel
|
|
| 19. |
1518784
|
[1] |
Nut
|
(422669)
|
| 20. |
417378
|
[1] |
Gasket
|
|
| 21. |
417381
|
[1] |
Gasket
|
|
| 22. |
|
|
|
|
| 23. |
422360
|
[1] |
Lock ring
|
|
| 24. |
|
|
|
|
| 27. |
417382
|
[1] |
Gasket
|
|
| 28. |
961896
|
[8] |
Plug
|
|
| 29. |
957188
|
[8] |
Gasket
|
|
| 30. |
955524
|
[10] |
Hexagon screw
|
|
| 31. |
941907
|
[10] |
Spring washer
|
|
| 32. |
955984
|
[10] |
O-ring
|
|
| 33. |
843421
|
[4] |
Striker plate
|
|
| 34. |
940100
|
[8] |
Hexagon screw
|
|
| 35. |
843422
|
[8] |
Washer
|
|
| 35. |
843424
|
[1] |
Repair kit
|
|
