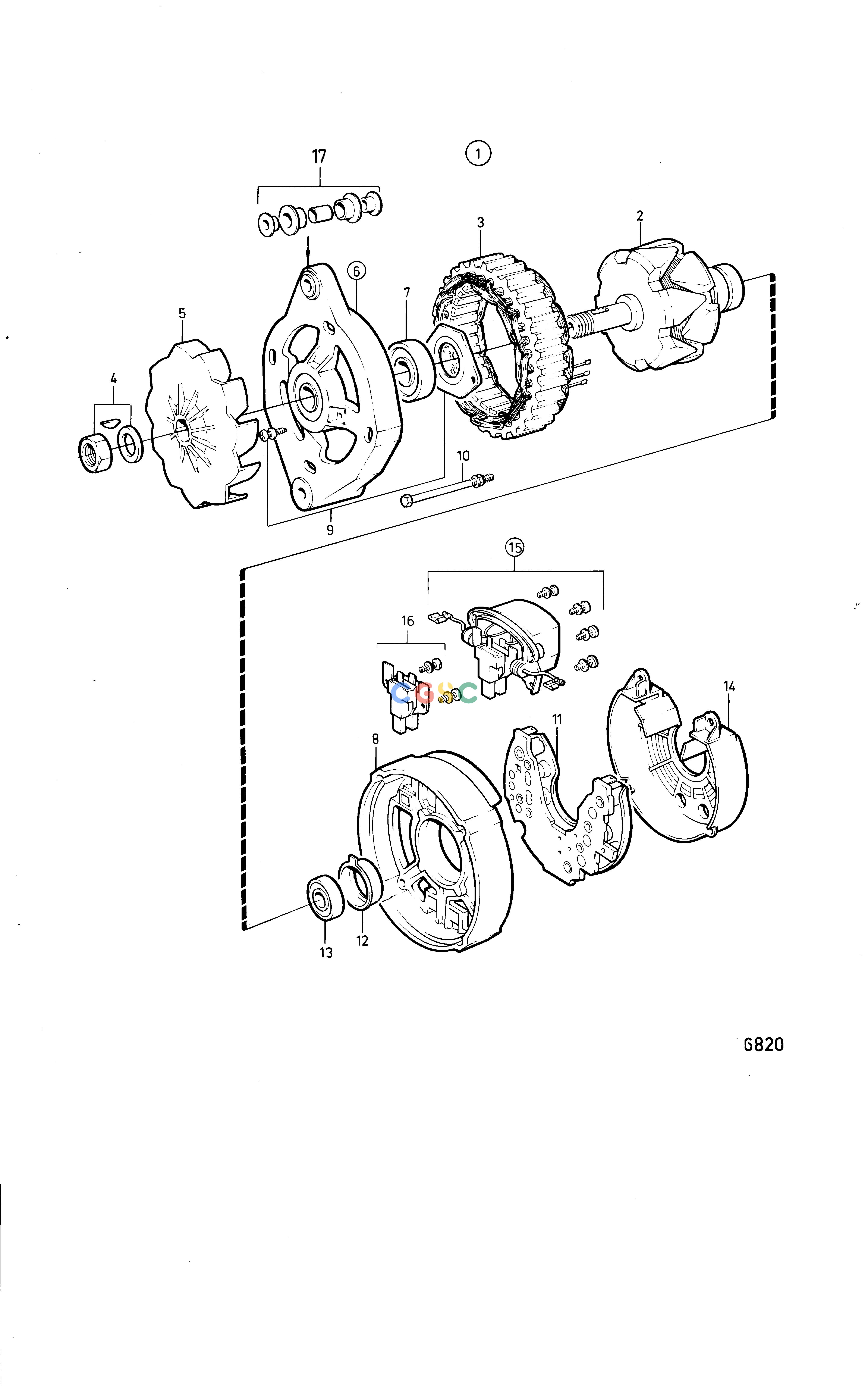

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCElectrical SystemAlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
718 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
845940
|
[1] |
Alternator
|
24V 55A
|
| 2. |
847704
|
[1] |
Rotor
|
|
| 3. |
847705
|
[1] |
Stator
|
|
| |
847706
|
[1] |
Nut set
|
|
| 5. |
847707
|
[1] |
Fan
|
|
| 6. |
|
|
|
|
| 7. |
847708
|
[1] |
Ball bearing
|
|
| 8. |
|
|
|
|
| 9. |
847709
|
[1] |
Bearing carrier
|
|
| 10. |
847710
|
[1] |
Screw kit
|
|
| 11. |
6212687
|
[1] |
Diode retainer
|
|
| 12. |
840629
|
[1] |
Bearing race
|
|
| 13. |
847711
|
[1] |
Ball bearing
|
|
| 14. |
847712
|
[1] |
Protecting casing
|
|
| 15. |
847713
|
[1] |
Governor
|
|
| 16. |
840632
|
[1] |
Brush retainer
|
|
| |
840634
|
[1] |
Guide
|
|
