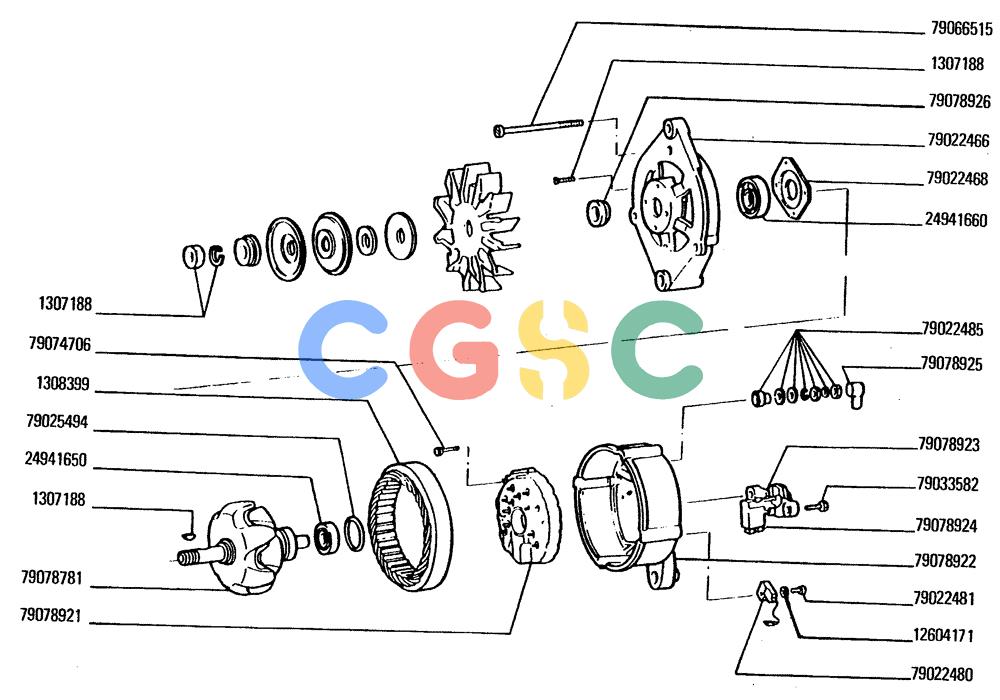

纽荷兰零件查询(FD20) - CRAWLER DOZER (F3.03/A[001]) - ALTERNATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
276 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1307188. | 1307188 | [1] | KIT | TOR |
| 1308399. | 51219422 | [1] | ALTERNATOR STATOR | NHSTATOR Superseded by part number: 3079387R91 |
| 12604171. | 12604171 | [1] | LOCK WASHER | IMOWASHER Superseded by part number: 12601171 |
| 24941650. | 24941650 | [1] | BALL BEARING,12mm ID x 32mm OD x 14mm W | TORBEARING |
| 24941660. | 24941660 | [1] | BALL BEARING | LECBEARING Superseded by part number: 87306803 |
| 79022466. | 79022466 | [1] | SUPPORT | LEC |
| 79022468. | 79022468 | [1] | PLATE | MOD Superseded by part number: 42531218 |
| 79022480. | 3079134R1 | [1] | CAPACITOR | IH |
| 79022481. | 79022481 | [1] | SCREW | MOD Superseded by part number: 10389311 |
| 79022485. | 79022485 | [1] | CONNECTING BLOCK | LECTERMINAL CONNECTOR Superseded by part number: 9927837 |
| 79025494. | 79025494 | [1] | RING | TORO-RING |
| 79033582. | 79033582 | [2] | SCREW | LEC Superseded by part number: 1308837 |
| 79066515. | 79066515 | [4] | SCREW | LEC Superseded by part number: 79106743 |
| 79074706. | 79074706 | [3] | SCREW | LEC Superseded by part number: 79093985 |
| 79078781. | 79078781 | [1] | ROTOR | LEC Superseded by part number: |
| 79078921. | 79078921 | [1] | RING | LECCOIL |
| 79078922. | 79078922 | [1] | CASE | LEC |
| 79078923. | 79078923 | [1] | VOLTAGE REGULATOR | LEC Superseded by part number: 93158421 |
| 79078924. | 79078924 | [1] | KIT | LECBRUSH |
| 79078925. | 79078925 | [1] | CAP | MODBOWL |
| 79078926. | 79078926 | [1] | RECTIFIER | LEC |
