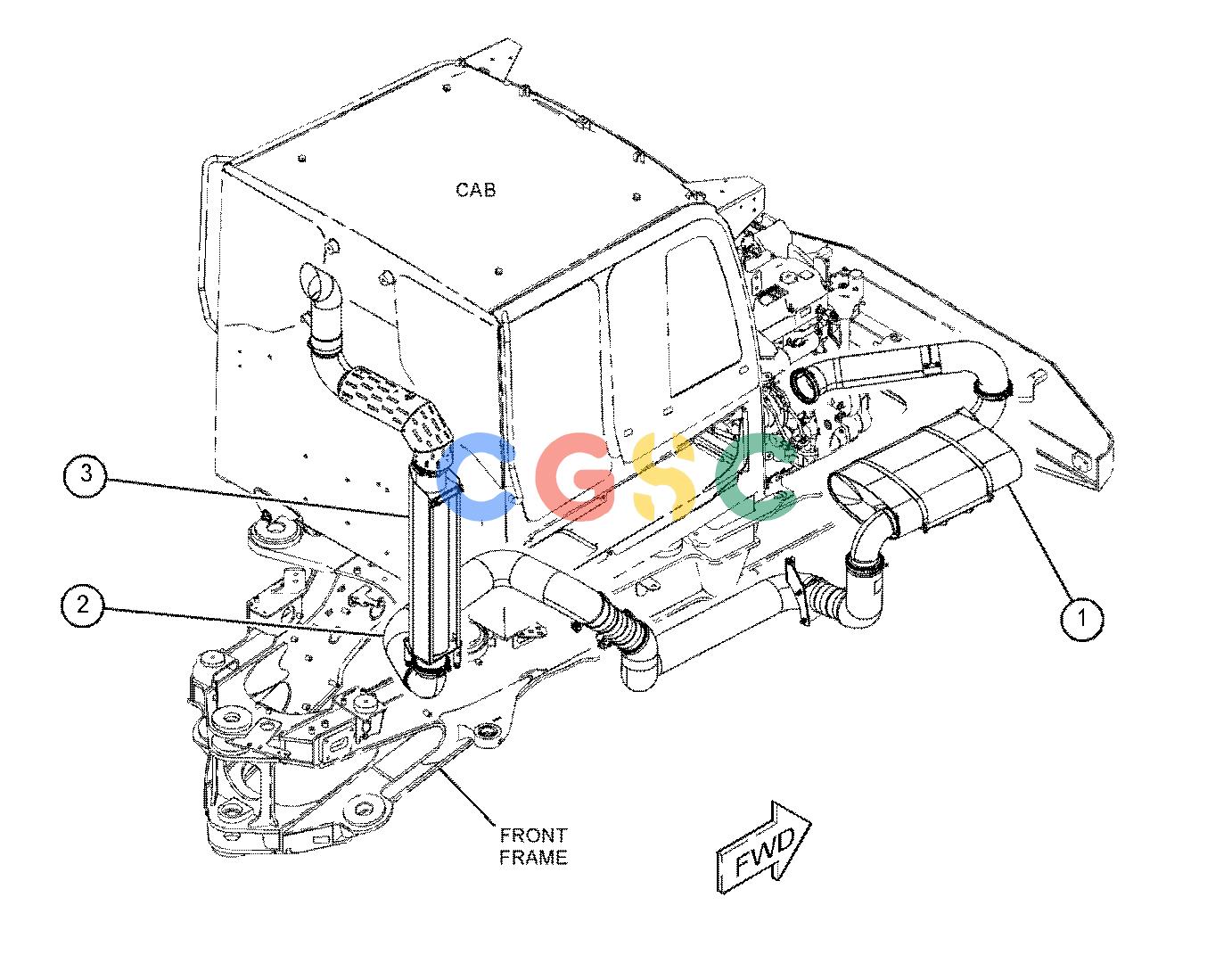

卡特零件查询（730） 485-1779: EXHAUST GP
广数供应链运营团队, 15 02月, 2025，浏览：
782 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-5219 | [1] | U-CLAMP AS | |
| | 6V-8801 | [2] | NUT(3/8-16-THD) | |
| | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 2. | 176-8234 | [1] | CLAMP | |
| 3. | 202-1838 | [2] | CLAMP-V BAND | |
| 4. | 211-2326 | [3] | BOSS | |
| 5. | 517-3492 | [1] | SUPPORT AS | |
| 6. | 526-5426 | [1] | PIPE AS | |
| 7. | 526-5427 | [1] | PIPE-EXHAUST | |
| 8. | 249-2844 | [3] | WASHER(12.7X31.7X1-MM THK) | |
| 9. | 4B-5272 | [3] | WASHER(12.7X31.7X2-MM THK) | |
| 10. | 6V-8801 | [2] | NUT(3/8-16-THD) | |
| 11. | 8T-4184M | [6] | BOLT(M12X1.75X45-MM) | |
| 12. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | M | | METRIC PART |
