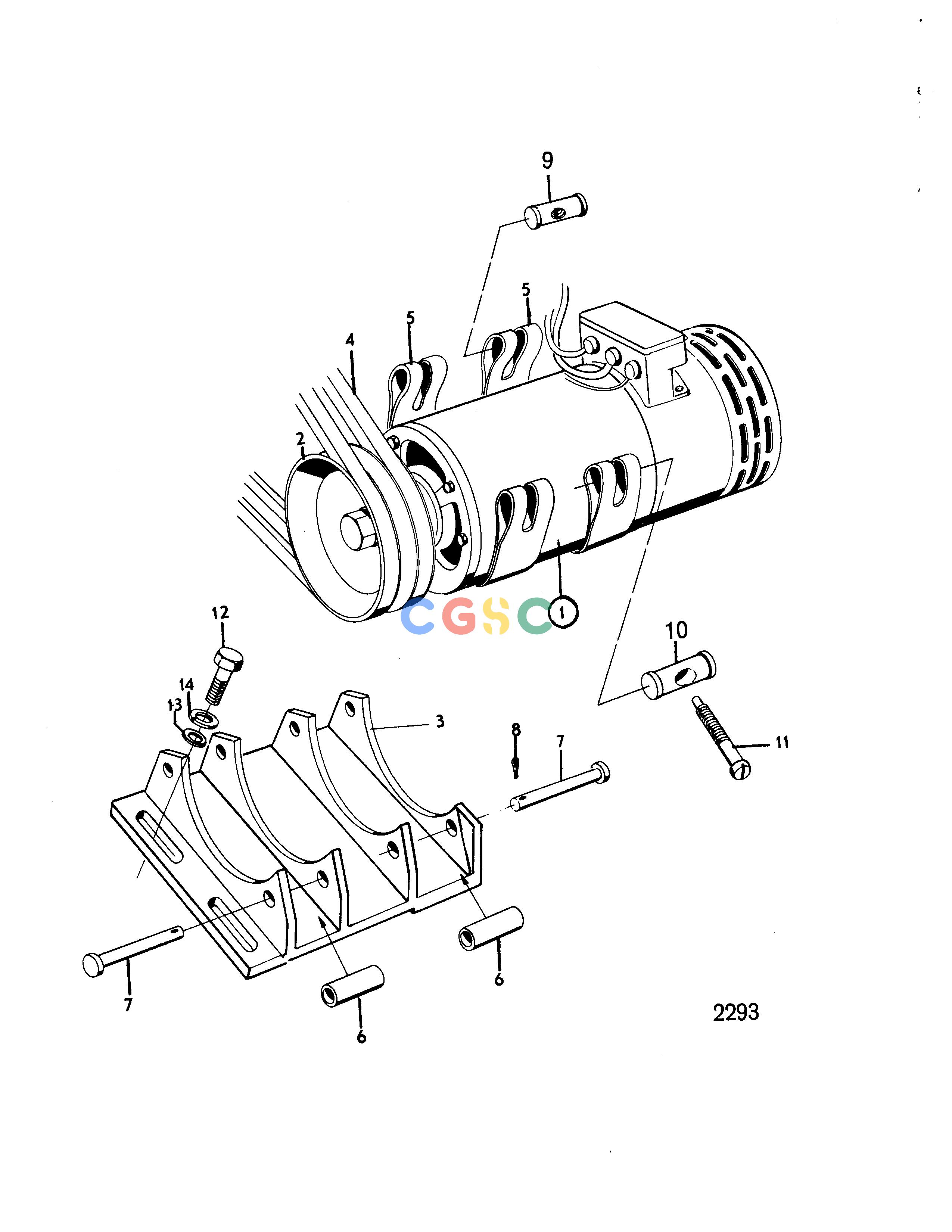

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCElectrical SystemAlternator and Installation Components 24V 62AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
350 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
233621
|
[1] |
Alternator
|
28V 62A
|
| 2. |
823694
|
[1] |
Pulley
|
|
| 3. |
823693
|
[1] |
Bracket
|
|
| 4. |
958362
|
[1] |
V-belt
|
|
| 5. |
414401
|
[4] |
Tensioning band
|
|
| 6. |
|
|
|
|
| 7. |
15491
|
[4] |
Bolt
|
|
| 8. |
907849
|
[4] |
Split pin
|
|
| 9. |
31404
|
[2] |
Clevis pin, threaded
|
|
| 10. |
31405
|
[2] |
Pin
|
|
| 11. |
31406
|
[2] |
Hexagon screw
|
|
| 12. |
955525
|
[4] |
Hexagon screw
|
|
| 13. |
955894
|
[4] |
Washer
|
|
| 14. |
941907
|
[4] |
Spring washer
|
|
