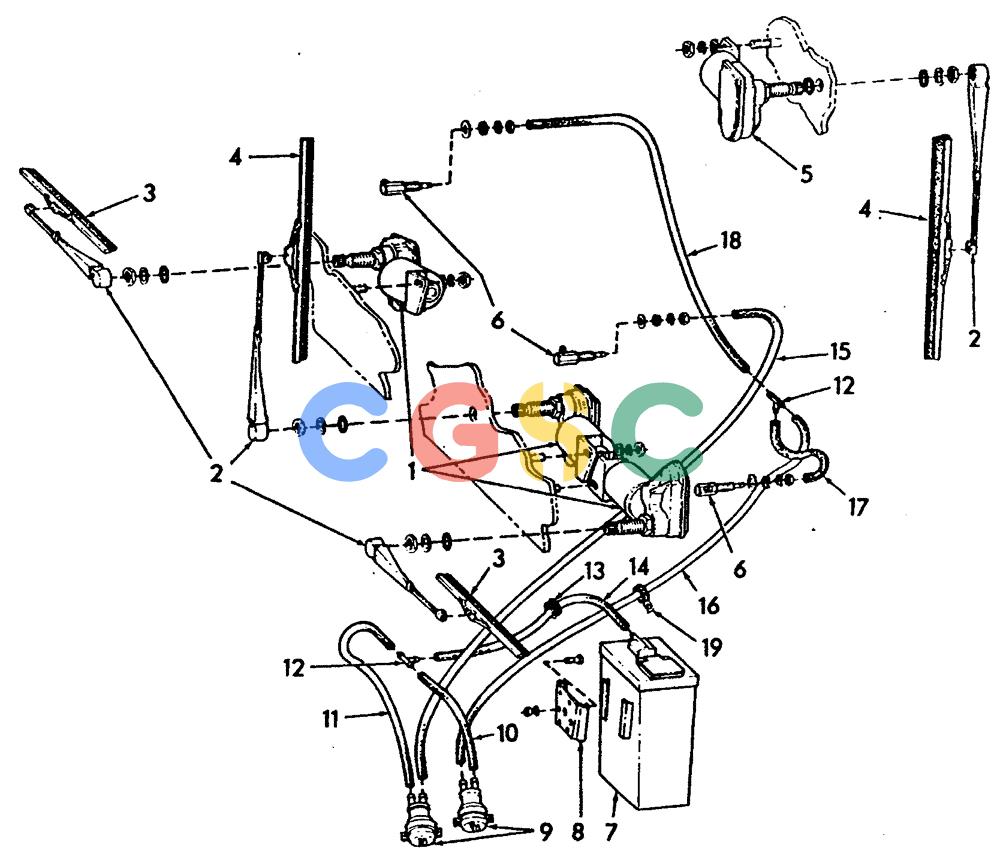

纽荷兰零件查询(FD20) - CRAWLER DOZER (F5.01[003]) - WINDSHEILD WIPERS AND WASHERS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
461 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73124638 | [3] | WIPER MOTOR | CMIMOTOR, WINDSHEILD WIPER |
| 1. | 70911114 | [3] | WASHER | CMI Superseded by part number: 70928190 |
| 1. | 70919310 | [3] | WASHER | MKTLOCKWASHER. 1/4 Superseded by part number: 70904204 |
| 1. | 70911024 | [3] | NUT | BHB1/4""NC Superseded by part number: 70900365 |
| 2. | 70665630 | [4] | WIPER ARM | CMIARM, WIPER Superseded by part number: 73158268 |
| 3. | 73112220 | [2] | WIPER BLADE | CMIBLADE, 10"" |
| 4. | 73112299 | [2] | WIPER BLADE | CMIBLADE, 14"" |
| 5. | 70696260 | [1] | STARTER MOTOR | CMIMOTOR WIPER, REAR WINDOW |
| 5. | 70936290 | [1] | NUT | NHJAM, 3/8""NF |
| 6. | 73121861 | [3] | NOZZLE | CMISPRAY Superseded by part number: 73158197 |
| 7. | 73158979 | [1] | KIT | CMIWASHER ASSY. |
| 8. | 73124639 | [1] | STRAP | CMIBRACKET |
| 8. | 70907722 | [2] | SCREW | CMICAPSCREW, 1/4""NCX5/8"" |
| 9. | 73107188 | [2] | HYDRAULIC PUMP | CMIPUMP Superseded by part number: 73160701 |
| 9. | 70930495 | [4] | SCREW | CMICAPSCREW, #10-32X1 |
| 9. | 70910243 | [4] | WASHER | CMI |
| 9. | 70910533 | [4] | LOCK WASHER | CMILOCKWASHER, #10 Superseded by part number: 70910284 |
| 9. | 70917415 | [4] | NUT | BHB#10-32 |
| 12. | 73107447 | [2] | HYD CONNECTOR | CMITEE |
| 13. | 70936230 | [1] | GROMMET | NH |
| 19. | 73114671 | [1] | CLIP | CMI |
| 20. | 73112223 | [1] | FLEXIBLE HOSE | CMIHOSE, 3/16""I.D.X50 FT. (USE AS REQUIRED) |
