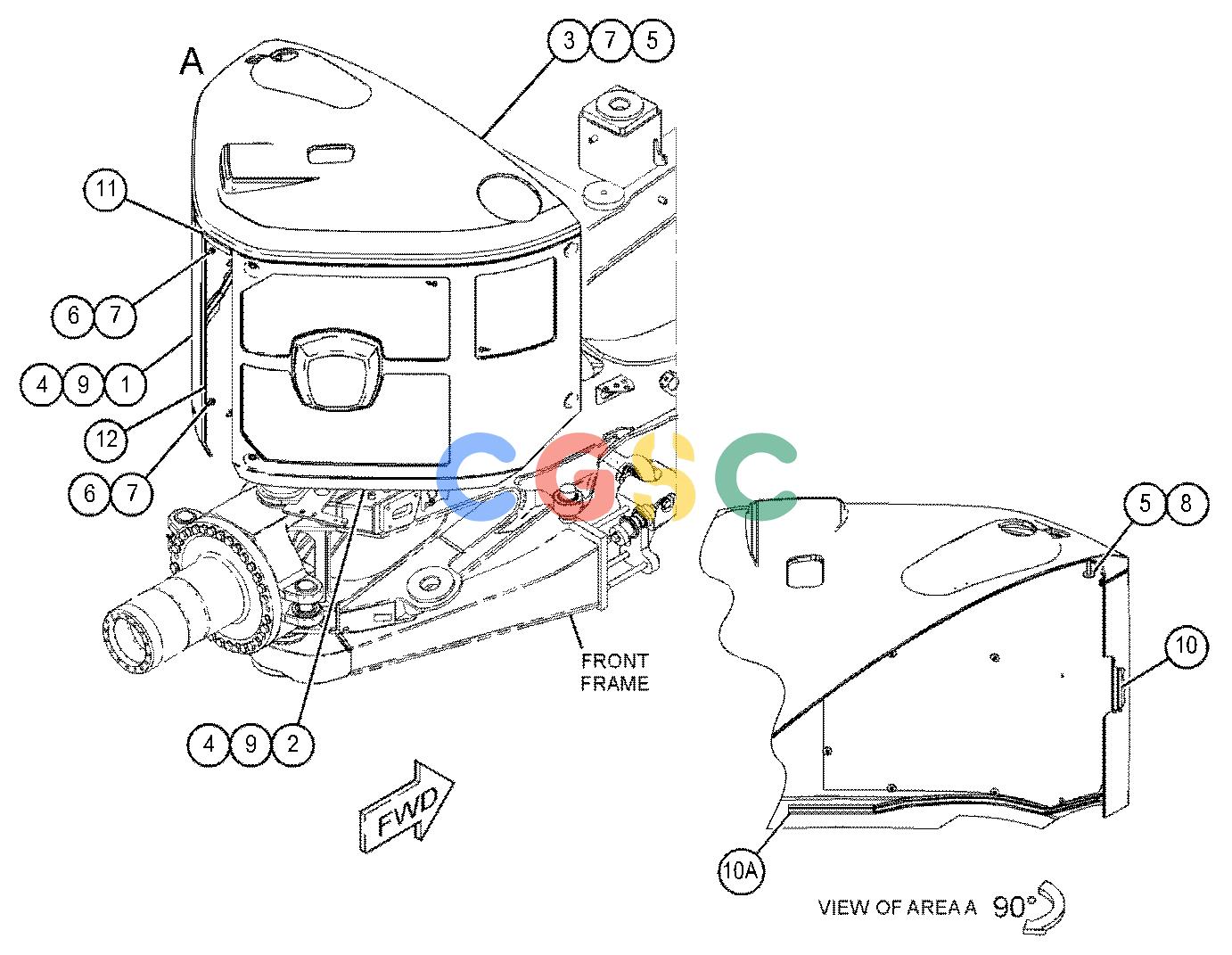

卡特零件查询（730） 496-3114: COVER GP-RADIATOR
广数供应链运营团队, 15 02月, 2025，浏览：
939 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 345-4129Y | [1] | GUARD GP-RADIATOR(LH) | |
| 2. | 345-4131Y | [1] | GUARD GP-RADIATOR(RH) | |
| 3. | 496-3115 | [1] | COVER AS-TOP | |
| 4. | 5P-4116 | [8] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 5. | 7X-0578 | [6] | WASHER-HARD(10.2X32X2.5-MM THK) | |
| 6. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 7. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 8. | 8T-4172M | [1] | BOLT(M10X1.5X80-MM) | |
| 9. | 8T-4908M | [8] | BOLT(M8X1.25X25-MM) | |
| 10. | 222-5093E | | SEAL(72.2-CM) | |
| 10A. | 222-5093E | | SEAL(91.2-CM) | |
| 11. | 5P-5931D | | SEAL(0.17-M) | |
| 12. | 5P-7502D | | SEAL(0.97-M) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
