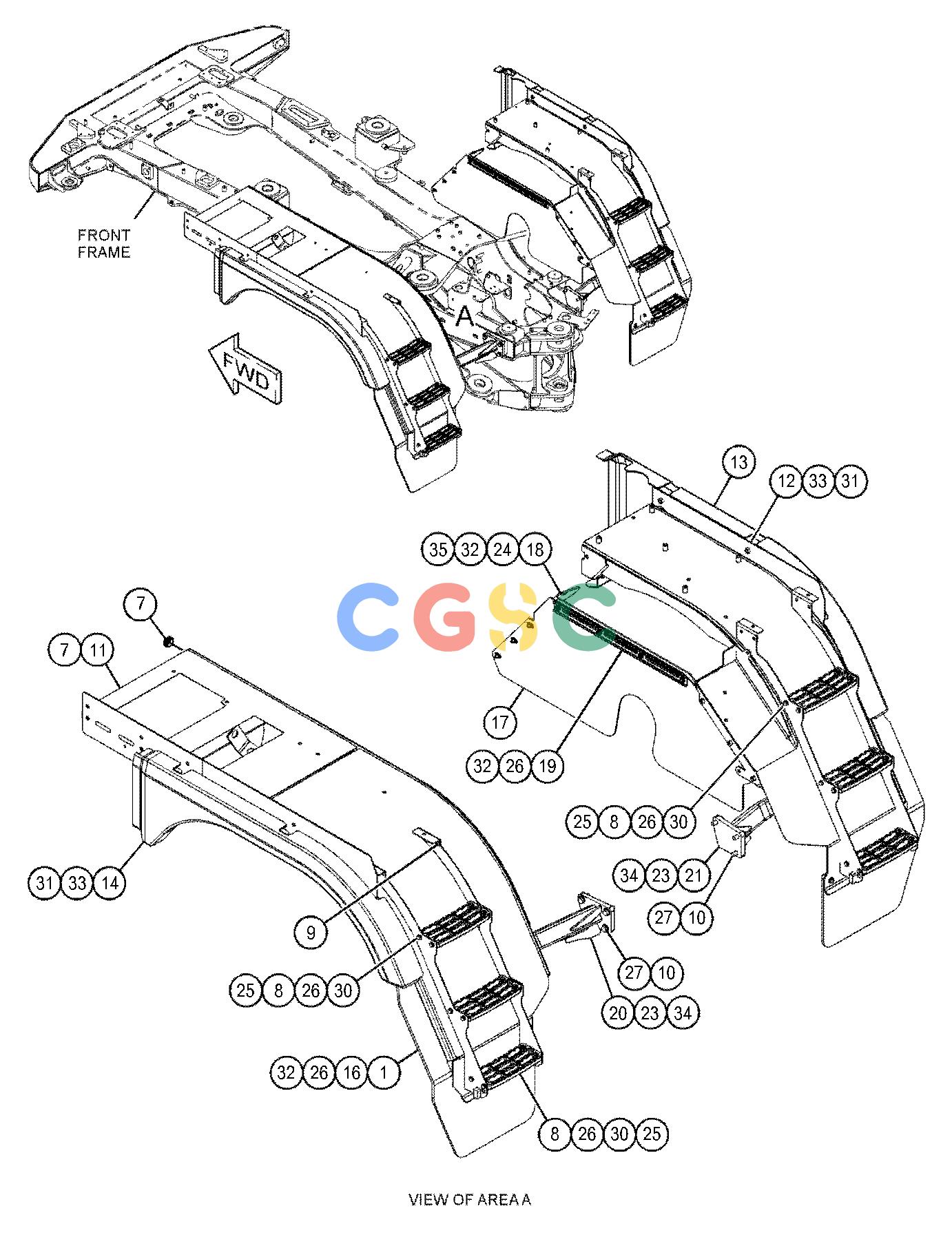

卡特零件查询（730） 495-0156: FENDER & SUPPORT GP
广数供应链运营团队, 15 02月, 2025，浏览：
249 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 545-5201 | [2] | MUD FLAP | |
| 2. | 376-9778 | [1] | PLATE | |
| 3. | 376-9779 | [2] | PLATE | |
| 4. | 376-9821 | [1] | PLATE-COVER | |
| 5. | 378-3583 | [1] | PLATE | |
| 6. | 388-0865 | [1] | PLATE | |
| 7. | 388-0969 | [3] | PLUG | |
| 8. | 424-1785 | [6] | STEP | |
| 9. | 425-5763 | [2] | PLATE AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 10. | 8T-7338M | [6] | BOLT(M16X2X45-MM) | |
| 11. | 490-1239 | [1] | FENDER AS(LH) | |
| 12. | 490-1240 | [1] | FENDER AS(RH) | |
| 13. | 493-3350 | [1] | COVER-FENDER(RH) | |
| 14. | 493-3362 | [1] | COVER-FENDER(LH) | |
| 15. | 494-0114 | [2] | PLATE AS | |
| 16. | 494-2353 | [2] | PLATE | |
| 17. | 502-7550 | [1] | MUD FLAP | |
| 18. | 502-8334 | [1] | PLATE | |
| 19. | 503-1869 | [1] | PLATE AS | |
| 20. | 465-1960 | [1] | SUPPORT AS(LH) | |
| 21. | 465-1959 | [1] | SUPPORT AS(RH) | |
| 22. | 198-4778 | [3] | WASHER-HARD(13.5X30X12-MM THK) | |
| 23. | 5P-1076 | [7] | WASHER-HARD(13.5X30X4-MM THK) | |
| 24. | 7X-7729 | [3] | WASHER(11X25X3-MM THK) | |
| 25. | 8T-0389M | [24] | LOCKNUT(M10X1.5-THD) | |
| 26. | 8T-4121 | [56] | WASHER-HARD(11X21X2.5-MM THK) | |
| 27. | 8T-4122 | [6] | WASHER-HARD(17X32X3.5-MM THK) | |
| 28. | 8T-4183M | [3] | BOLT(M12X1.75X40-MM) | |
| 29. | 8T-4184M | [3] | BOLT(M12X1.75X45-MM) | |
| 30. | 8T-4186M | [24] | BOLT(M10X1.5X40-MM) | |
| 31. | 8T-4189M | [8] | BOLT(M8X1.25X20-MM) | |
| 32. | 8T-4195M | [35] | BOLT(M10X1.5X30-MM) | |
| 33. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 34. | 8T-6868M | [4] | BOLT(M12X1.75X80-MM) | |
| | M | | METRIC PART |
