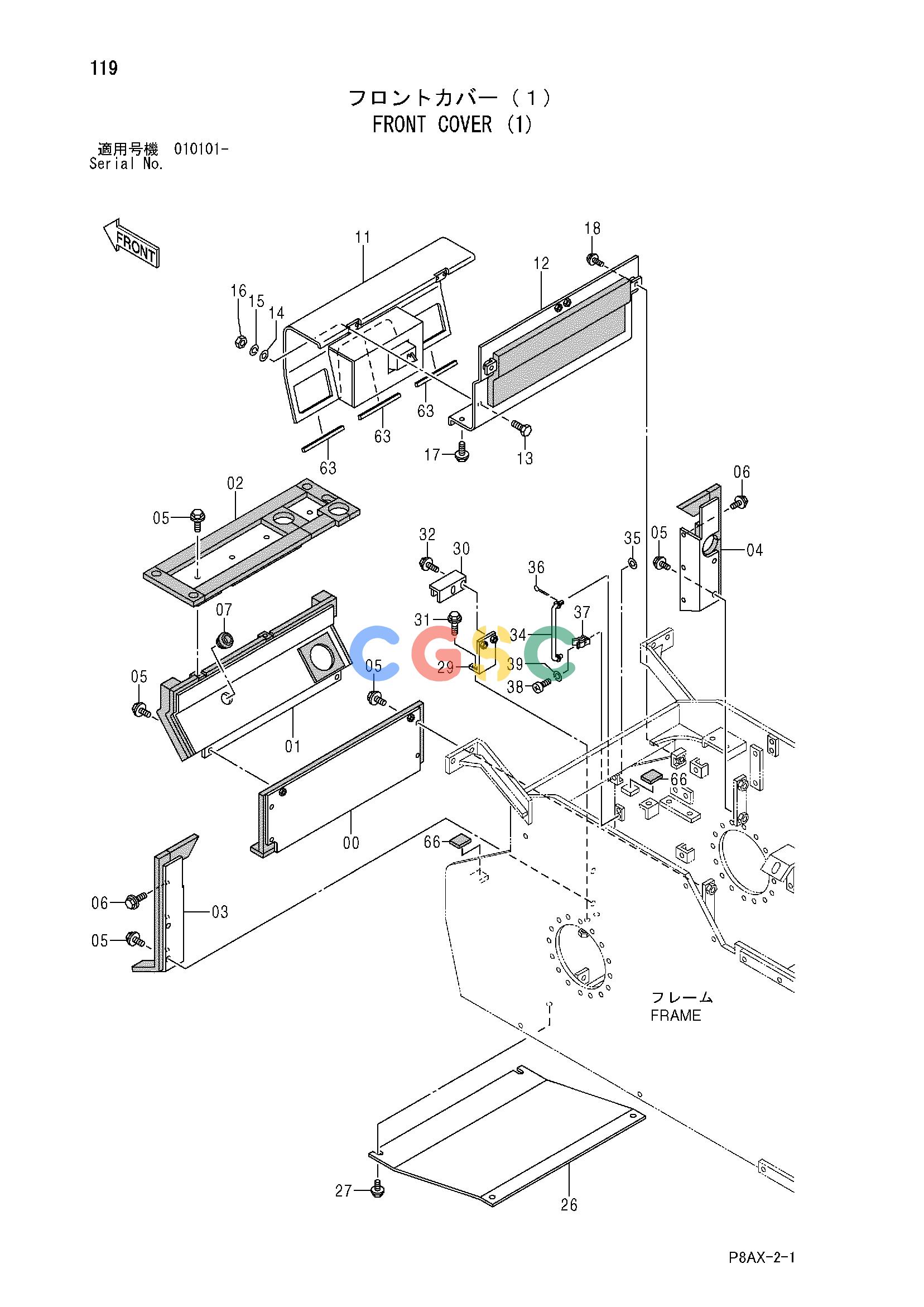

日立零件查询（CS125）FRONT COVER (1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
729 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425314 | [1] | COVER | |
| 01. | 425315 | [1] | COVER | |
| 02. | 425316 | [1] | COVER | |
| 03. | 425317 | [1] | COVER | |
| 04. | 425318 | [1] | COVER | |
| 05. | 500028 | [14] | BOLT;SEMS | |
| 06. | 500028 | [6] | BOLT;SEMS | |
| 07. | 425196 | [1] | BUSHING;RUBBER | |
| 11. | 425319 | [1] | COVER | |
| 12. | 425365 | [1] | COVER | |
| 13. | 947680 | [4] | BOLT | |
| 14. | 947323 | [4] | WASHER;PLANE | |
| 15. | 606020 | [4] | WASHER;SPRING | |
| 16. | 947854 | [4] | NUT | |
| 17. | 500048 | [2] | BOLT;SEMS | |
| 18. | 500028 | [2] | BOLT;SEMS | |
| 26. | 425090 | [1] | COVER | |
| 27. | 500028 | [4] | BOLT;SEMS | |
| 29. | 425397 | [1] | BRACKET | |
| 30. | 425398 | [1] | BRACKET | |
| 31. | 500048 | [2] | BOLT;SEMS | |
| 32. | 500029 | [2] | BOLT;SEMS | |
| 34. | 425400 | [1] | STAY | |
| 35. | 947323 | [1] | WASHER;PLANE | |
| 36. | 630035 | [1] | PIN;SPLIT | |
| 37. | 425220 | [1] | LOCK | |
| 38. | 425077 | [2] | SCREW | |
| 39. | 947886 | [2] | WASHER;SPRING | |
| 63. | 425255 | [3] | BUSHING | |
| 66. | 425260 | [2] | RUBBER | |
