沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCElectrical SystemEl. Equipment and Instruments Std MO-XXXX/29427EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
741 次

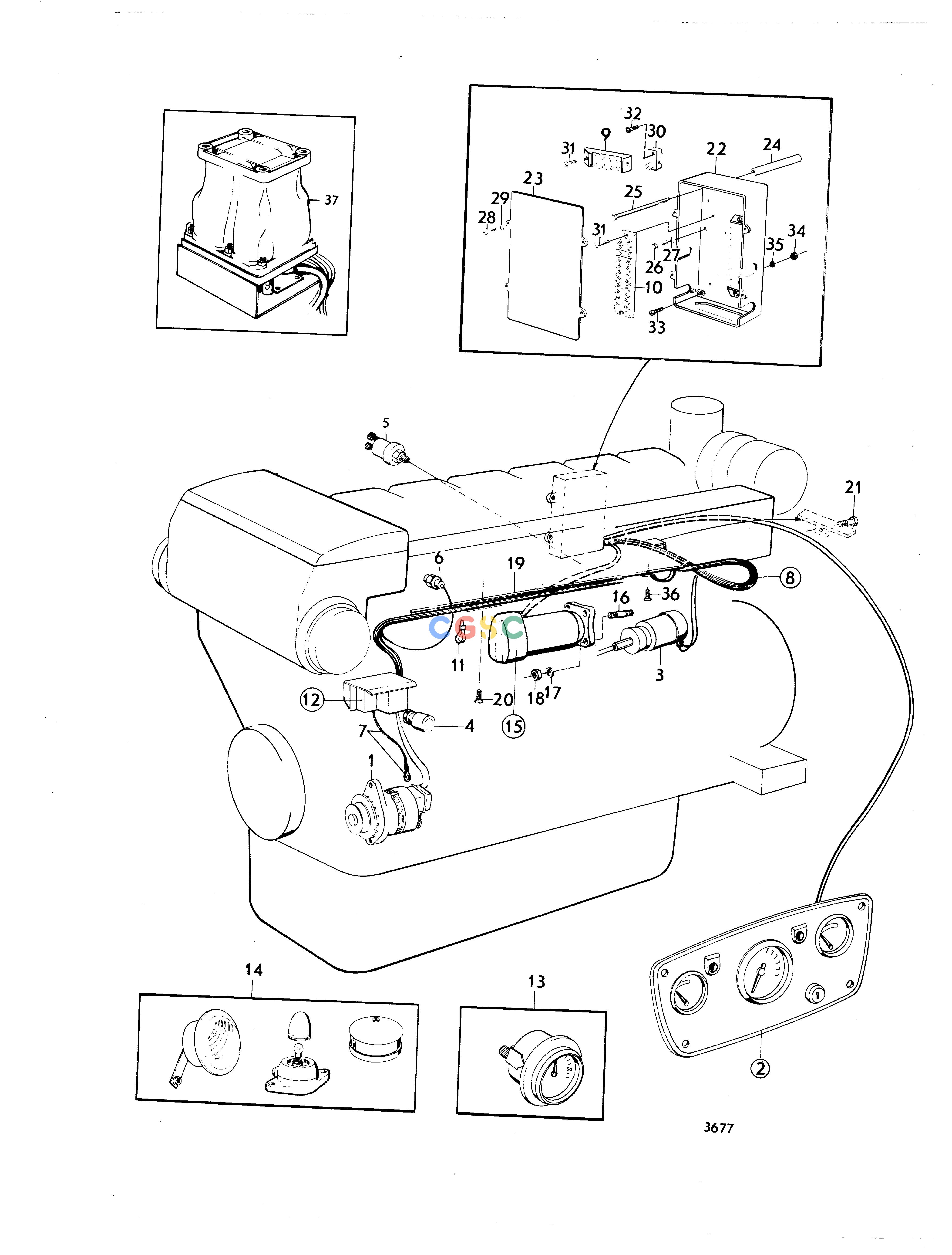

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
24V 62A
|
| 2. |
823363
|
[1] |
Instrument panel
|
For fly bridge., 12V
|
| 2. |
823364
|
[1] |
Instrument panel
|
For fly bridge., 24V
|
| 2. |
823365
|
[1] |
Instrument panel
|
For fly bridge., 32V
|
| 2. |
|
|
|
|
| 4. |
807703
|
[1] |
Tachometer sensor
|
Spec.867055 alt., Deuta
|
| 4. |
1507899
|
[1] |
Tachometer sensor
|
VD0
|
| 5. |
881432
|
[1] |
Sensor
|
|
| 6. |
827150
|
[1] |
Sensor
|
See group 2B
|
| 6. |
822858
|
[1] |
Thermo monitor
|
See group 9
|
| 7. |
7742190_138
|
|
cable and cable terminals
|
|
| 7. |
|
|
|
|
| 8. |
837012
|
[1] |
Cable block
|
For fly bridge., 12V 38A, 24V 25A
|
| 8. |
837013
|
[1] |
Cable block
|
For fly bridge., 24V 60A, 32V 60A
|
| 8. |
837014
|
[1] |
Cable block
|
For fly bridge., 24V 38A
|
| 8. |
837015
|
[1] |
Cable block
|
For fly bridge., 24V 62A
|
| 9. |
942659
|
[1] |
Terminal block
|
24V 25A, 24V 38A
|
| 10. |
942661
|
[1] |
Terminal block
|
|
| 11. |
948210
|
[1] |
Cable tie
|
(827353)
|
| 12. |
|
|
|
12V 38A, 24V 25A
|
| 12. |
823766
|
[1] |
Governor
|
24V 60A
|
| 12. |
823851
|
[1] |
Charge regulator
|
32V 60A
|
| 12. |
238703
|
[1] |
Charge regulator
|
24V 38A
|
| 12. |
233622
|
[1] |
Relay
|
24V 62A
|
| 13. |
|
|
|
|
| 14. |
|
|
|
|
| 15. |
870998
|
[1] |
Starter motor
|
24V repl by 847308
|
| 15. |
847308
|
[1] |
Starter motor
|
24V
|
| 15. |
|
|
|
|
| 15. |
870704
|
[1] |
Starter motor
|
32V
|
| 16. |
953486
|
[3] |
Stud
|
|
| 17. |
942336
|
[3] |
Spring washer
|
|
| 18. |
955827
|
[3] |
Hexagon nut
|
|
| 19. |
|
|
|
|
| 20. |
950158
|
[2] |
Cross recessed sunk
|
|
| 21. |
955588
|
[1] |
Hexagon screw
|
|
| 22. |
823616
|
[1] |
Clutch housing
|
|
| 23. |
823617
|
[2] |
Cap
|
|
| 24. |
823741
|
[2] |
Spacer sleeve
|
Early type
|
| 25. |
943254
|
[2] |
Screw
|
Early type
|
| 26. |
955524
|
[3] |
Hexagon screw
|
Late type
|
| 27. |
941907
|
[2] |
Spring washer
|
|
| 28. |
950047
|
[4] |
Cross recessed screw
|
|
| 29. |
941906
|
[4] |
Spring washer
|
|
| 30. |
823767
|
[4] |
Terminal block
|
24V60A,32V60A,24V62A
|
| 31. |
950011
|
[4] |
Cross recessed screw
|
24V60A,32V60A,24V62A
|
| 32. |
950004
|
[4] |
Cross recessed screw
|
24V60A,32V60A,24V62A
|
| 33. |
950059
|
[1] |
Cross recessed screw
|
24V60A, 32V60A
|
| 34. |
955826
|
[1] |
Hexagon nut
|
24V60A, 32V60A
|
| 35. |
941907
|
[1] |
Spring washer
|
24V60A, 32V60A
|
| 36. |
950160
|
[1] |
Cross recessed sunk
|
|
| 37. |
233933
|
[1] |
Switch, series and parallell switch
|
12V-24V
|
| 37. |
|
|
|
|
