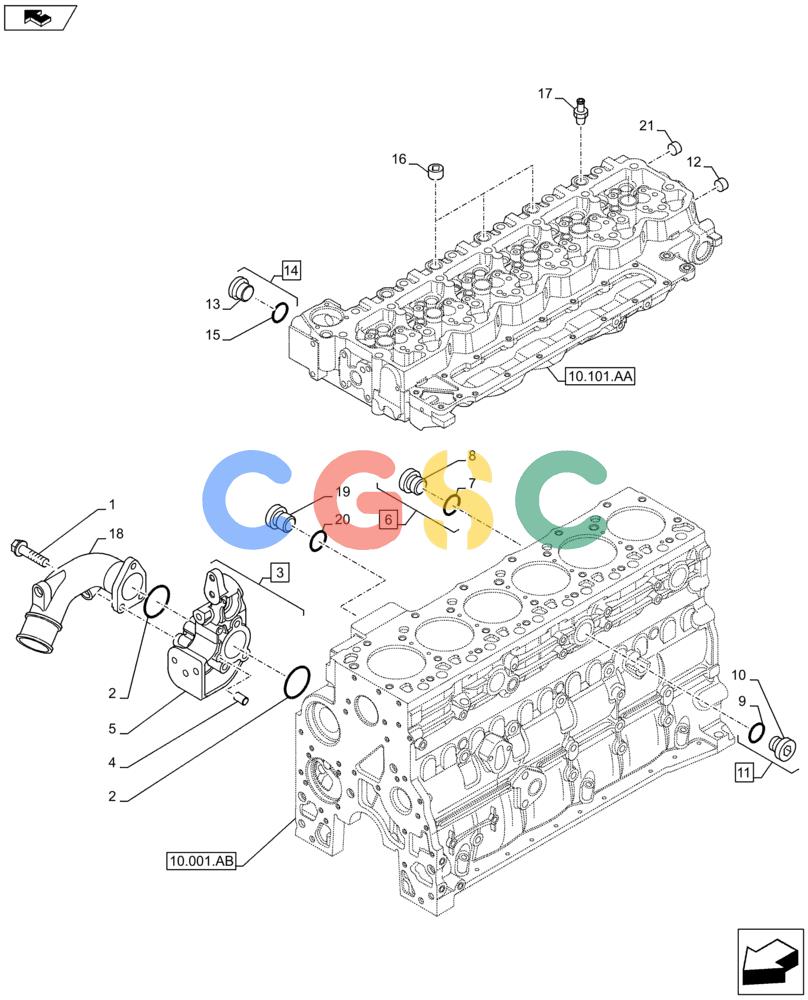

神钢零件查询(F4HFE613S B003) - ENGNE 5801751514 - 47538794 (8/13-) (10.400.AE) - COOLING SYSTEM LINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
614 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852325 | [3] | SCREW | TORM10 x 1.5 x 80 Superseded by part number: 16592925 |
| 2. | 2854072 | [2] | SEALING RING,Square, 5.16mm Thk x 50.17mm ID | TOR Superseded by part number: 504062710 |
| 4. | 98405182 | [2] | DOWEL | TOR |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONSupport, Incl in 3 |
| 6. | 4895392 | [2] | HEX SOCKET PLUG,M18 x 1.5 | TORASSY, Incl 7, 8 |
| 7. | 4895393 | [2] | O-RING,2.2mm Thk x 15.3mm ID | TORID = 15.3 x 2.2 |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONPlug, Incl in 6 |
| 9. | 4895625 | [1] | O-RING,13.3mm ID x 2.2mm Width | TORID = 13.3 x 2.2 Superseded by part number: 17281681 |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONPlug, Incl in 11 |
| 11. | 4895623 | [1] | HEX SOCKET PLUG,M16 x 1.5 | TORASSY, Incl 9, 10 |
| 12. | 4893036 | [2] | PIPE PLUG,3/4"-14 NPTF | TOR Superseded by part number: 2854866 |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONPlug, Incl in 14 |
| 14. | 4895080 | [1] | HEX SOCKET PLUG,M22 x 1.5 | TORASSY, Incl 13, 15 |
| 15. | 2854072 | [1] | SEALING RING,Square, 5.16mm Thk x 50.17mm ID | TORID = 19.3 x 2.2 Superseded by part number: 504062710 |
| 16. | 4895078 | [3] | PIPE PLUG,1/2"-14 | TOR |
| 20. | 4899824 | [2] | SEALING WASHER,18.2mm ID x 21.9mm OD x 1.5mm Thk | TOR Superseded by part number: 16508360 |
