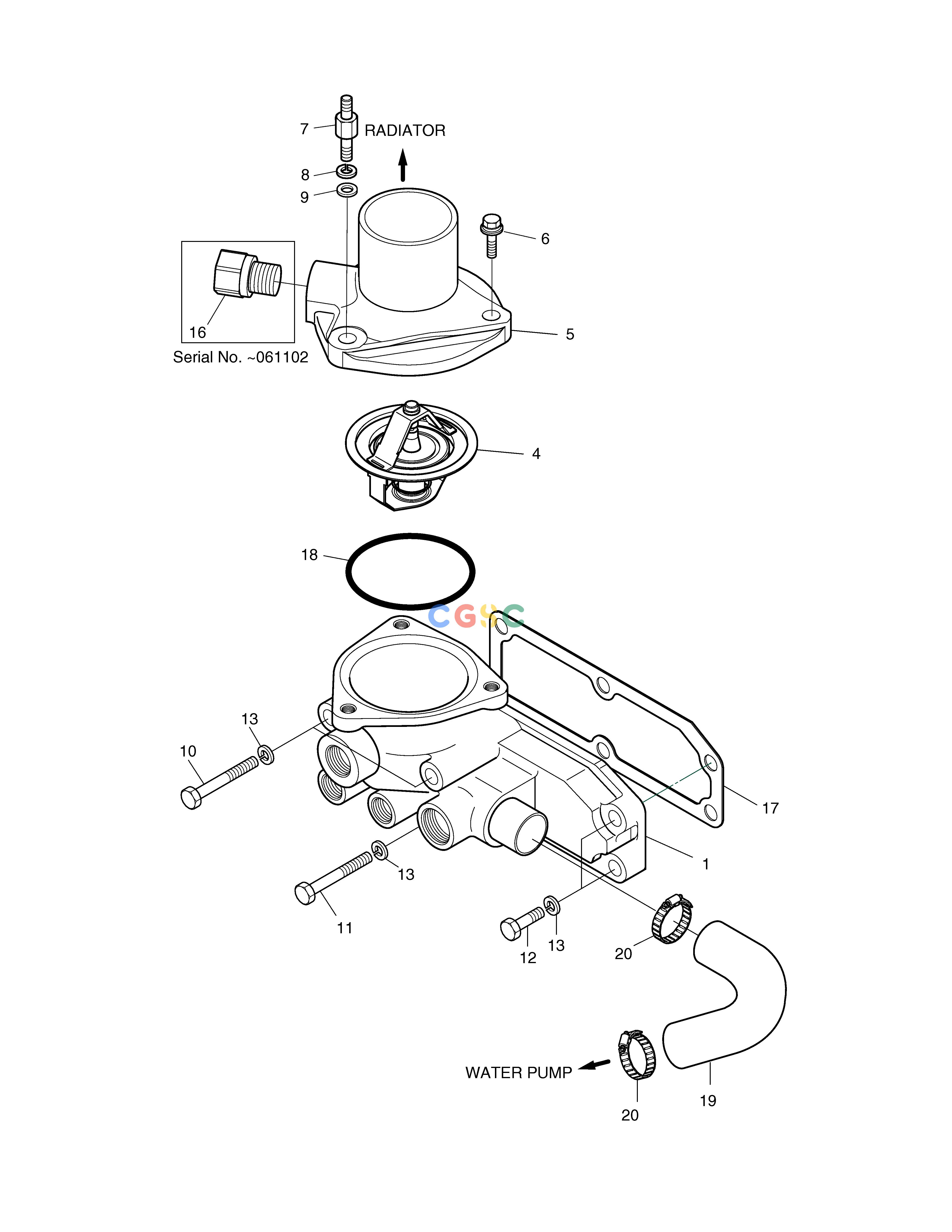

斗山零件查询THERMOSTAT SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
327 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.06404-5003B
|
[1] |
HOUSING ASS`Y
|
65.06404-5032
|
| 1. |
65.06404-5032
|
[1] |
HOUSING ASS`Y
|
|
| 10. |
06.01493-4217
|
[2] |
BOLT M10X1.25X90
|
|
| 11. |
06.01493-4216
|
[1] |
BOLT M10X1.25X85
|
|
| 12. |
06.01943-3217
|
[3] |
BOLT M10X1.25X30
|
|
| 13. |
06.16044-0211
|
[6] |
WASHER;SPRING
|
|
| 16. |
65.90320-0019
|
[1] |
PLUG SCREW PT3/8
|
|
| 17. |
65.06904A0004
|
[1] |
GASKET;THERMOSTAT HSG
|
|
| 18. |
65.06904-0003
|
[1] |
GASKET;THERMOSTAT
|
|
| 19. |
65.96301-0045C
|
[1] |
HOSE;RUBBER
|
|
| 20. |
06.67020-0106
|
[2] |
CLAMP;HOSE
|
|
| 4. |
65.06402-5015
|
[1] |
THERMOSTAT
|
|
| 5. |
65.06405-0012
|
[1] |
OUTLET;WATER
|
65.06405-0012A
|
| 5. |
65.06405-0012A
|
[1] |
OUTLET;WATER
|
|
| 5. |
65.06405-0039
|
[1] |
OUTLET;WATER
|
|
| 6. |
06.01923-3114
|
[2] |
BOLT ASS`Y M8X22
|
|
| 7. |
65.90201-0037
|
[1] |
BOLT;SPACER
|
|
| 8. |
06.16731-2107
|
[1] |
WASHER
|
|
| 9. |
06.15010-2311
|
[1] |
WASHER
|
|
