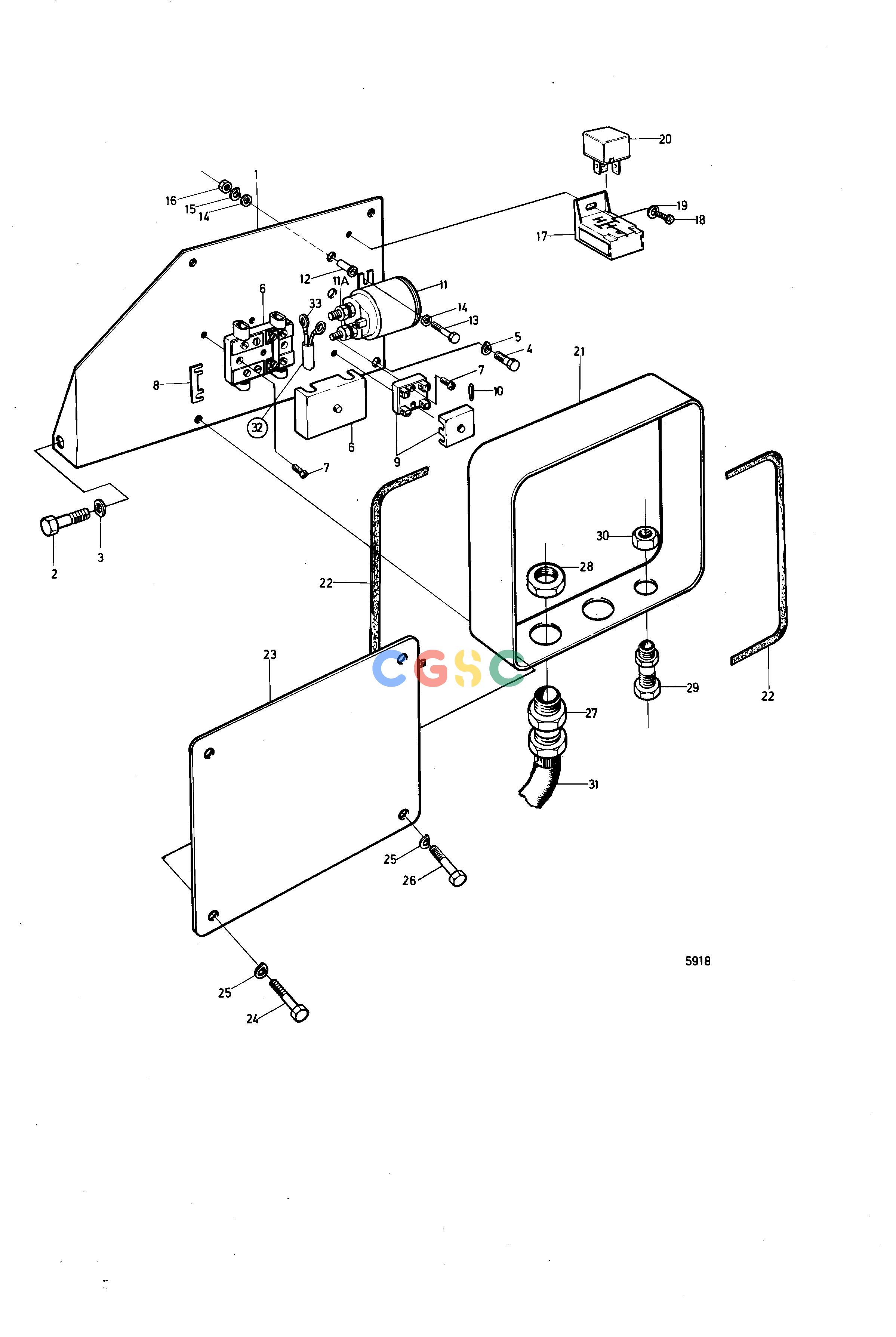

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCElectrical SystemElectrical Equipment for Starting HeaterEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
542 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
844724
|
[1] |
Attaching plate
|
|
| 2. |
955588
|
[1] |
Hexagon screw
|
|
| 3. |
941912
|
[1] |
Spring washer
|
|
| 4. |
955523
|
[1] |
Hexagon screw
|
Åkerman spec. 867446.
|
| 5. |
941907
|
[1] |
Spring washer
|
Åkerman spec. 867446.
|
| 6. |
1134336
|
[1] |
Fuse box
|
|
| 7. |
950021
|
[4] |
Cross recessed screw
|
|
| 8. |
1134337
|
[2] |
Fuse
|
150A
|
| 9. |
88578
|
[1] |
Fuse box
|
|
| 10. |
11433
|
[1] |
Fuse
|
8A
|
| 11. |
1577375
|
[1] |
Relay
|
12V
|
| 11. |
1577376
|
[1] |
Relay
|
24V
|
| 11A. |
17624
|
[2] |
Hexagon nut
|
|
| 12. |
843108
|
[2] |
Bushing
|
|
| 13. |
955247
|
[2] |
Hexagon screw
|
|
| 14. |
960138
|
[4] |
Washer
|
|
| 15. |
941907
|
[2] |
Spring washer
|
|
| 16. |
17624
|
[2] |
Hexagon nut
|
|
| 17. |
946556
|
[1] |
Housing
|
Åkerman spec. 867446.
|
| 18. |
950021
|
[1] |
Cross recessed screw
|
Åkerman spec. 867446.
|
| 19. |
941905
|
[1] |
Spring washer
|
Åkerman spec. 867446.
|
| 20. |
1504951
|
[1] |
Relay
|
Åkerman spec. 867446.
|
| 21. |
844725
|
[1] |
Cover
|
Åkerman spec. 867446
|
| 22. |
842730
|
[1] |
Sealing strip
|
Åkerman spec. 867446., L=1500mm
|
| 23. |
844726
|
[1] |
Cover
|
Åkerman spec. 867446
|
| 24. |
955529
|
[3] |
Hexagon screw
|
Åkerman spec. 867446.
|
| 25. |
941907
|
[4] |
Spring washer
|
Åkerman spec. 867446.
|
| 26. |
955530
|
[1] |
Hexagon screw
|
Åkerman spec. 867446.
|
| 27. |
881193
|
[2] |
Grommet
|
Åkerman spec. 867446.
|
| 28. |
880755
|
[2] |
Nut
|
Åkerman spec. 867446.
|
| 29. |
881192
|
[1] |
Grommet
|
Åkerman spec. 867446.
|
| 30. |
880243
|
[1] |
Nut
|
Åkerman spec. 867446.
|
| 31. |
|
|
|
Can't be used on alternator 841765., Åkerman spec. 867446.
|
| 32. |
844639
|
[1] |
Cable block
|
Std
|
| 33. |
7742190_138
|
|
cable and cable terminals
|
|
| 33. |
|
|
|
|
