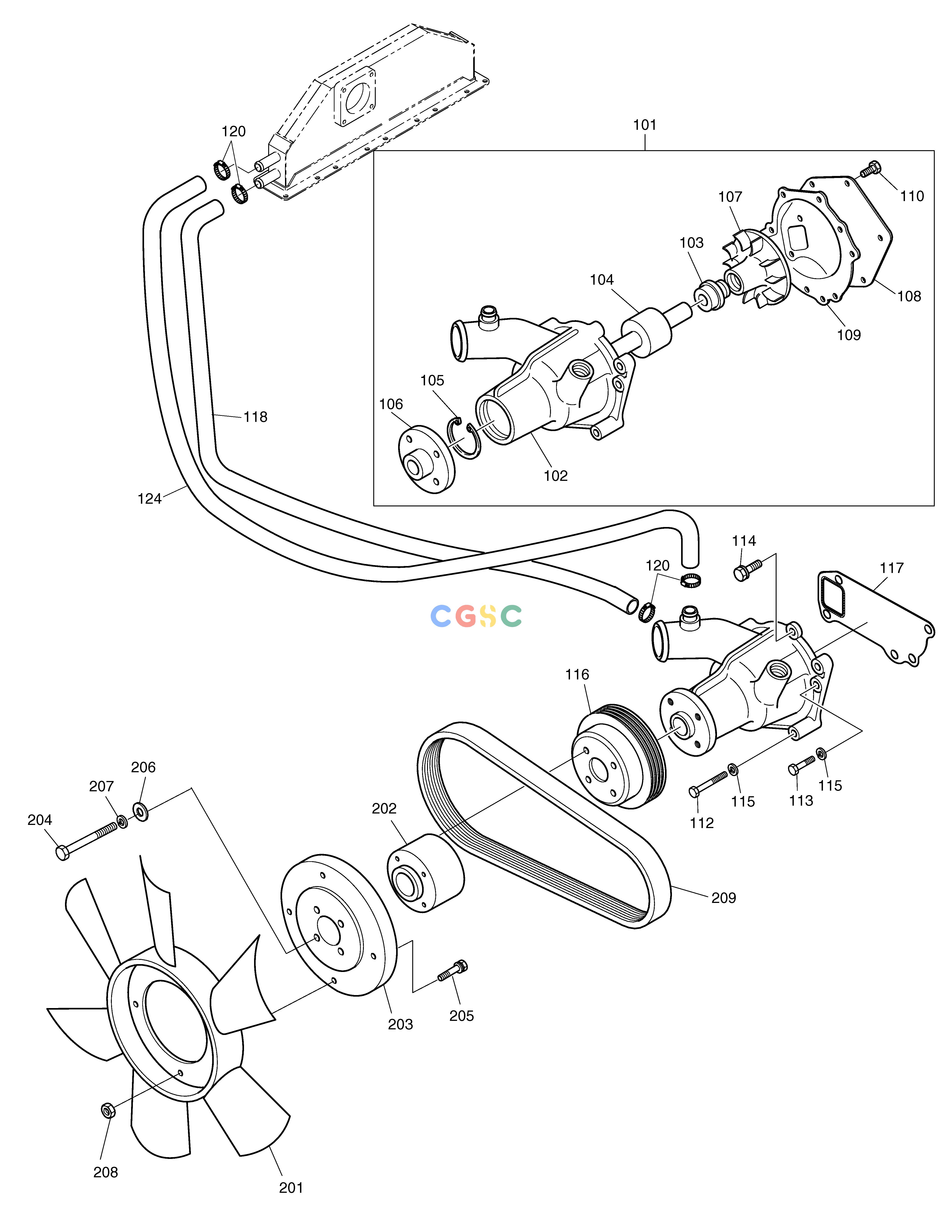

斗山零件查询WATER PUMP & COOLING FAN SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
499 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 101. |
65.06500-6402A
|
[1] |
WATER PUMP ASS'Y
|
65.06500-6402B
|
| 101. |
65.06500-6402B
|
[1] |
WATER PUMP ASS'Y
|
65.06500-6402C
|
| 101. |
65.06500-6402C
|
[1] |
WATER PUMP ASS`Y
|
|
| 102. |
65.06501-0217A
|
[1] |
. HOUSING
|
|
| 103. |
65.06520-6007
|
[1] |
. SEAL;MECHANICAL
|
|
| 104. |
65.93410-0027
|
[1] |
BEARING
|
65.93410-0087
|
| 104. |
65.93410-0087
|
[1] |
. BEARING
|
|
| 105. |
06.29020-0132
|
[1] |
. SNAP RING
|
|
| 106. |
65.06504-0033
|
[1] |
. HUB;V-BELT PULLEY
|
|
| 107. |
65.06506-0085A
|
[1] |
. IMPELLER
|
|
| 108. |
65.06512-0016
|
[1] |
. COVER
|
|
| 109. |
65.06901-0035
|
[1] |
GASKET
|
65.06901-0035A
|
| 109. |
65.06901-0035A
|
[1] |
. GASKET
|
|
| 110. |
06.04200-9009
|
[3] |
. SCREW;CROSS M8X20
|
|
| 112. |
06.01493-4215
|
[1] |
BOLT M10X1.25X80
|
|
| 113. |
06.01493-4212
|
[2] |
BOLT M10X1.25X65
|
|
| 114. |
06.01943-3218
|
[1] |
BOLT ASS`Y M10X1.25X35
|
|
| 115. |
06.16731-2108
|
[3] |
WASHER;SPRING
|
|
| 116. |
65.06606-0039
|
[1] |
PULLEY;FAN(NON TROPICAL)
|
|
| 117. |
65.06901B0002
|
[1] |
GASKET;WATER PUMP
|
|
| 118. |
65.96301-0363
|
[1] |
HOSE;RUBBER
|
|
| 120. |
06.67020-0104
|
[4] |
CLAMP;HOSE
|
|
| 124. |
65.96301-0364
|
[1] |
HOSE;RUBBER
|
|
| 201. |
65.06601-0012A
|
[1] |
FAN;COOLING
|
|
| 202. |
65.06611-0099
|
[1] |
FLANGE;FAN
|
65.06611-0099A
|
| 202. |
65.06611-0099A
|
[1] |
FLANGE;FAN
|
65.06611-0140A
|
| 202. |
65.06611-0140A
|
[1] |
|
|
| 203. |
65.06611-0089
|
[1] |
FLANGE;FAN
|
65.06611-0089A
|
| 203. |
65.06611-0089A
|
[1] |
FLANGE;FAN
|
|
| 204. |
06.01013-9124
|
[4] |
BOLT M8X95
|
|
| 205. |
06.01923-3119
|
[4] |
BOLT ASS`Y M8X40
|
|
| 206. |
06.15010-2311
|
[4] |
WASHER
|
|
| 207. |
06.16731-2107
|
[4] |
WASHER
|
|
| 208. |
06.11063-8214
|
[4] |
. NUT
|
|
| 209. |
65.96801-0124
|
[1] |
BELT
|
65.96801-0124A
|
| 209. |
65.96801-0124A
|
[1] |
BELT,FAN(NON TROPICAL)
|
|
