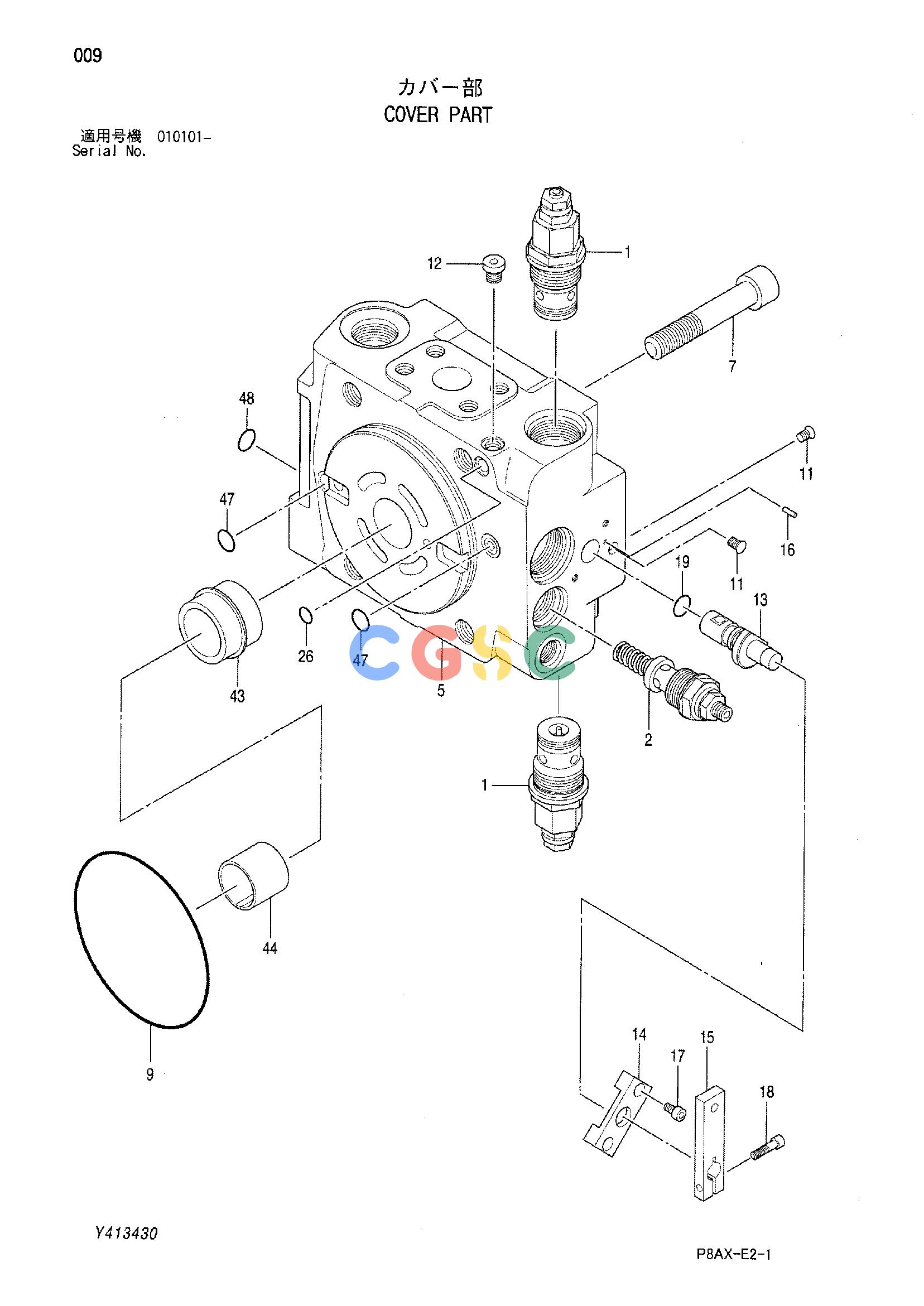

日立零件查询（CS125）COVER PART Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
279 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 425122-30 | [1] | COVER PART | |
| 1. | 425122-31 | [2] | VALVE;RELIEF | |
| 2. | 425122-35 | [1] | VALVE;RELIEF | |
| 5. | +++++++ | [1] | COVER | |
| 7. | 425122-42 | [4] | BOLT;SOCKET | |
| 9. | 425122-43 | [1] | O-RING | |
| 11. | +++++++ | [1] | PLUG | |
| 12. | 425458-79 | [1] | PLUG | |
| 13. | 425458-69 | [1] | SHAFT | |
| 14. | 425458-70 | [1] | PLATE | |
| 15. | 425458-71 | [1] | LEVER | |
| 16. | 425458-72 | [1] | PIN;SPRING | |
| 17. | 425458-73 | [2] | BOLT;SOCKET | |
| 18. | 425458-74 | [1] | BOLT;SOCKET | |
| 19. | 425458-76 | [1] | O-RING | |
| 26. | 425122-44 | [1] | O-RING | |
| 43. | +++++++ | [1] | BUSHING | |
| 44. | +++++++ | [1] | METAL | |
| 47. | 425122-45 | [2] | O-RING | |
| 48. | 425122-46 | [1] | O-RING | |
