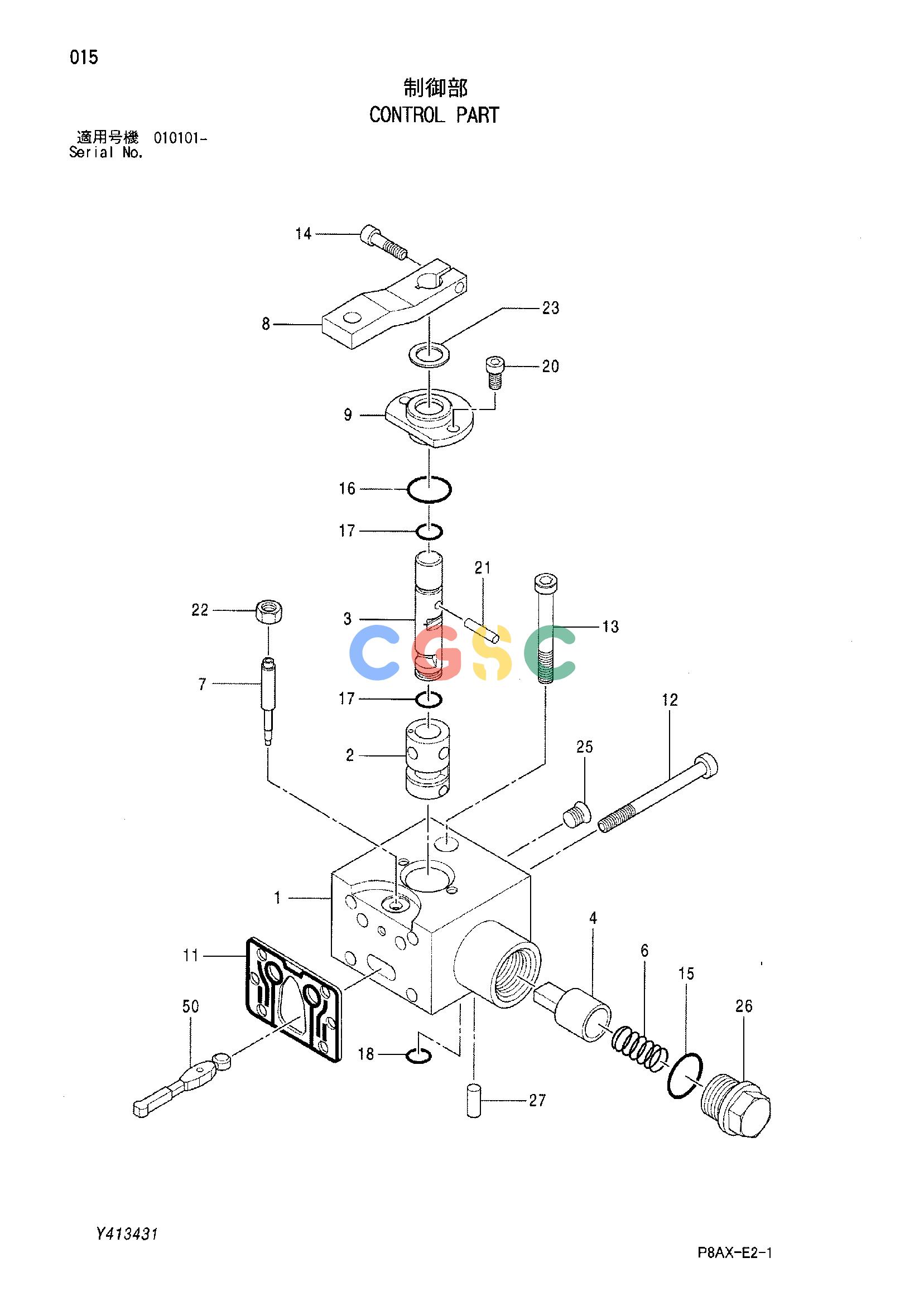

日立零件查询（CS125）CONTROL PART Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
639 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 425122-47 | [1] | CONTROL PART | |
| 1-27. | 425122-48 | [1] | INNER CONTROL PART | |
| 1. | +++++++ | [1] | BODY | |
| 2. | +++++++ | [1] | BUSHING | |
| 3. | +++++++ | [1] | SHAFT | |
| 4. | +++++++ | [1] | SEAT;SPRING | |
| 6. | +++++++ | [1] | SPRING | |
| 7. | +++++++ | [1] | SCREW;ADJUST | |
| 8. | 425122-49 | [1] | LEVER | |
| 9. | +++++++ | [1] | COVER | |
| 11. | 425122-50 | [1] | GASKET | |
| 12. | 425122-51 | [4] | BOLT;SOCKET | |
| 13. | 425122-52 | [1] | BOLT;SOCKET | |
| 14. | 425122-53 | [1] | BOLT;SOCKET | |
| 15. | 425122-54 | [1] | O-RING | |
| 16. | 425122-55 | [1] | O-RING | |
| 17. | 425122-56 | [2] | O-RING | |
| 18. | 425122-57 | [1] | O-RING | |
| 20. | 425122-58 | [2] | BOLT;SOCKET | |
| 21. | +++++++ | [1] | PIN | |
| 22. | 425122-59 | [1] | NUT | |
| 23. | +++++++ | [1] | SHIM | |
| 25. | +++++++ | [1] | PLUG | |
| 26. | +++++++ | [1] | PLUG | |
| 27. | +++++++ | [1] | PIN | |
| 50. | 425122-60 | [1] | LEVER | |
