| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

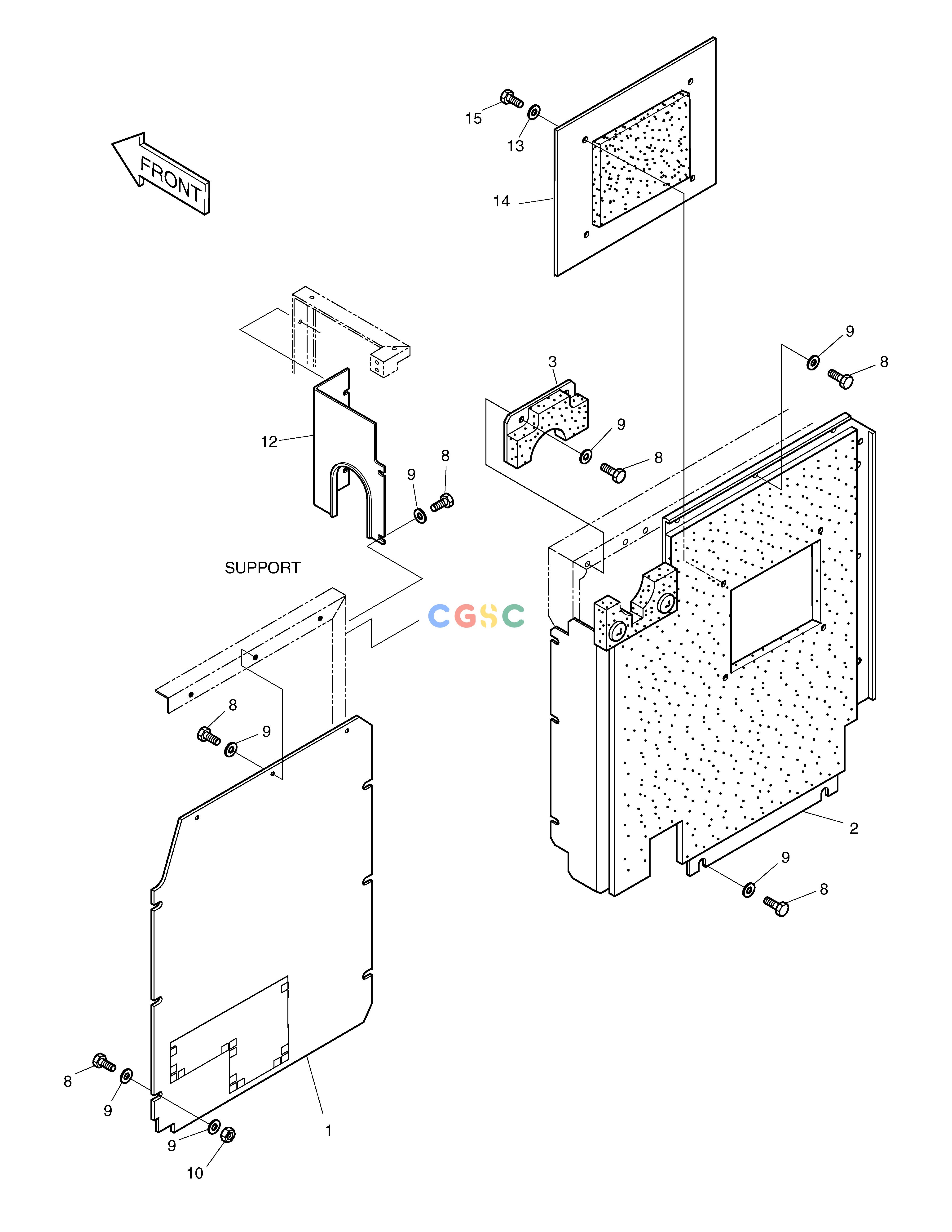

| -. | 621-02420 | [-] | BAFFLE ASS'Y | |
| 1. | 2627-1224A | [1] | COVER | |
| 10. | S4012633 | [3] | NUT | |
| 12. | 2627-1111 | [1] | COVER | |
| 13. | S5010513 | [4] | WASHER | |
| 14. | 2627-1331A | [1] | COVER | |
| 15. | S0508853 | [4] | . BOLT | |
| 2. | 2627-1222C | [1] | COVER | |
| 3. | 2621-3651A | [1] | COVER | |
| 8. | S0511853 | [22] | BOLT | |
| 9. | 2114-1058D10 | [25] | WASHER |
