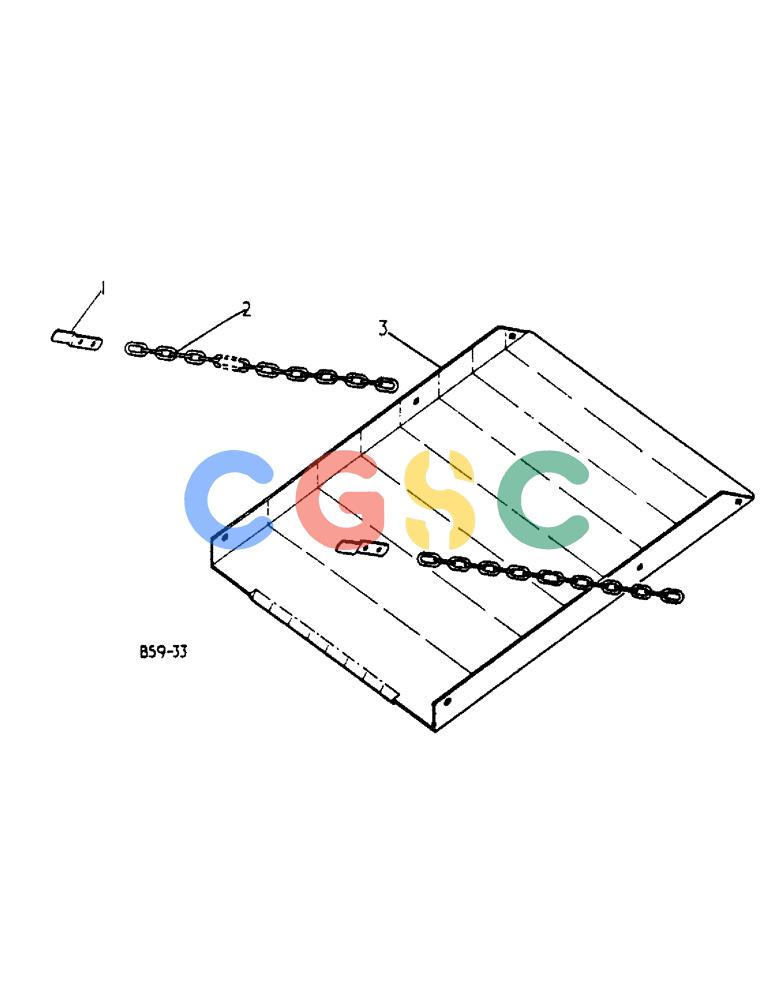

凯斯零件查询(425) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/76-12/85) (A-45) - BALE CHAMBER EXTENSION Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
542 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3101803R1
|
[1] |
HOLDER
|
IH
chain
|
| . . |
16897R1
|
[2] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 5/16 x 3/4 crg type 1 Superseded by part number: 412-512
|
| . . |
9635082
|
[2] |
NUT,5/16" - 18, Gr 5
|
NH
5/16 pln hex
|
| . . |
103320
|
[2] |
LOCK WASHER,5/16"
|
IH
WASHER, LOCK, 5/16" Superseded by part number: 322358, 83990583
|
| 2. |
495526R1
|
[1] |
CHAIN (AG)
|
IH
CHAIN, bale chamber extension holdup
|
| . . |
598804R1
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5
|
IH
BOLT, 5/16 x 1-1/4 crg type 5 Superseded by part number: 280827
|
| . . |
120376
|
[2] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
80681
|
[1] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| . . |
668569R1
|
[1] |
WASHER
|
IH
.344 x 1.500 x .105 Superseded by part number: 87020812
|
| . . |
619855R1
|
[2] |
WASHER
|
IH
.344 x .750 x .054 Superseded by part number: 86637953
|
| 3. |
667693R1
|
[1] |
EXTENSION
|
IH
bale chamber
|
| . . |
20485R1
|
[2] |
BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd
|
IH
7/16 x 3/4 crg type 1
|
| . . |
3063614R1
|
[2] |
NUT
|
IH
7/16-14 hex lock
|
| . . |
21331R1
|
[2] |
WASHER
|
IH
.469 x 1.250 x .054 Superseded by part number: 106265
|
