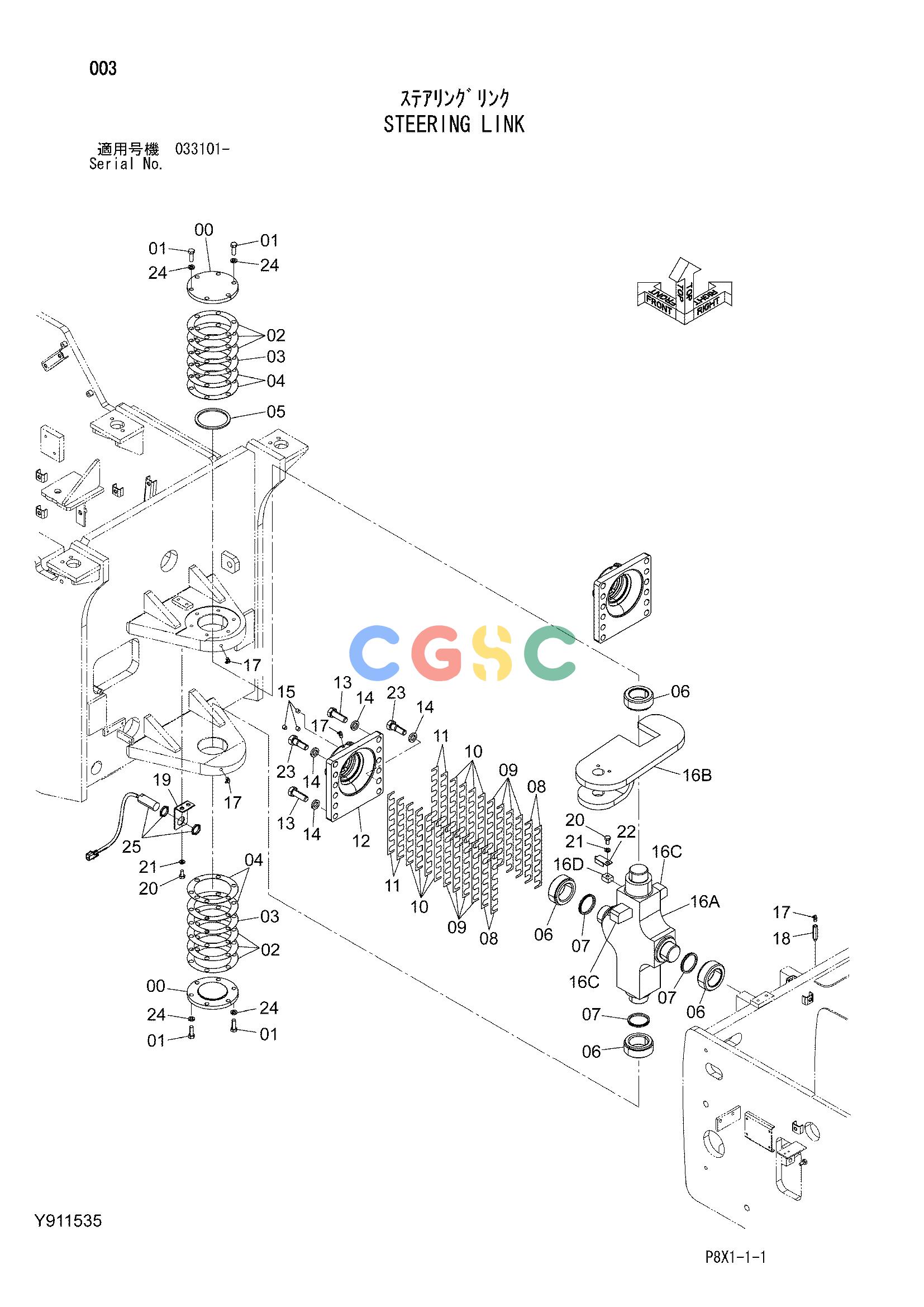

日立零件查询（CS125-3）STEERING LINK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
477 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y404733 | [2] | COVER | |
| 01. | J901235 | [12] | BOLT | |
| 02. | Y404734 | [6] | SHIM 0.1mm | |
| 03. | Y404735 | [2] | SHIM 0.3mm | |
| 04. | Y404736 | [4] | SHIM 1.0mm | |
| 05. | Y404737 | [1] | SEAL | |
| 06. | Y402385 | [4] | BRG. | |
| 07. | Y402518 | [3] | V-RING | |
| 08. | Y402604 | [4] | SHIM 1.0mm | |
| 09. | Y402605 | [8] | SHIM 0.3mm | |
| 10. | Y402606 | [8] | SHIM 0.1mm | |
| 11. | Y403699 | [4] | SHIM 0.05mm | |
| 12. | Y200126 | [1] | COVER | |
| 13. | J922060 | [10] | BOLT | |
| 14. | J257220 | [12] | WASHER;SPRING | |
| 15. | M451213 | [3] | SCREW;SET | |
| 16. | Y700323 | [1] | LINK;STEERING | |
| 16A. | Y300319 | [1] | LINK;STEERING | |
| 16B. | Y800764 | [1] | YORK | |
| 16C. | Y404730 | [2] | PLATE | |
| 16D. | Y404184 | [1] | SEAT;SCREW | |
| 17. | J75581 | [4] | FITTING;GREASE | |
| 18. | 4241267 | [1] | REDUCER | |
| 19. | Y404732 | [1] | BRACKET | |
| 20. | J901020 | [3] | BOLT | |
| 21. | A590910 | [3] | WASHER;SPRING | |
| 22. | Y970363 | [1] | BRACKET | |
| 23. | Y405057 | [2] | BOLT;REAMER | |
| 24. | A590912 | [12] | WASHER;SPRING | |
| 25. | Y410129 | [1] | SWITCH | |
