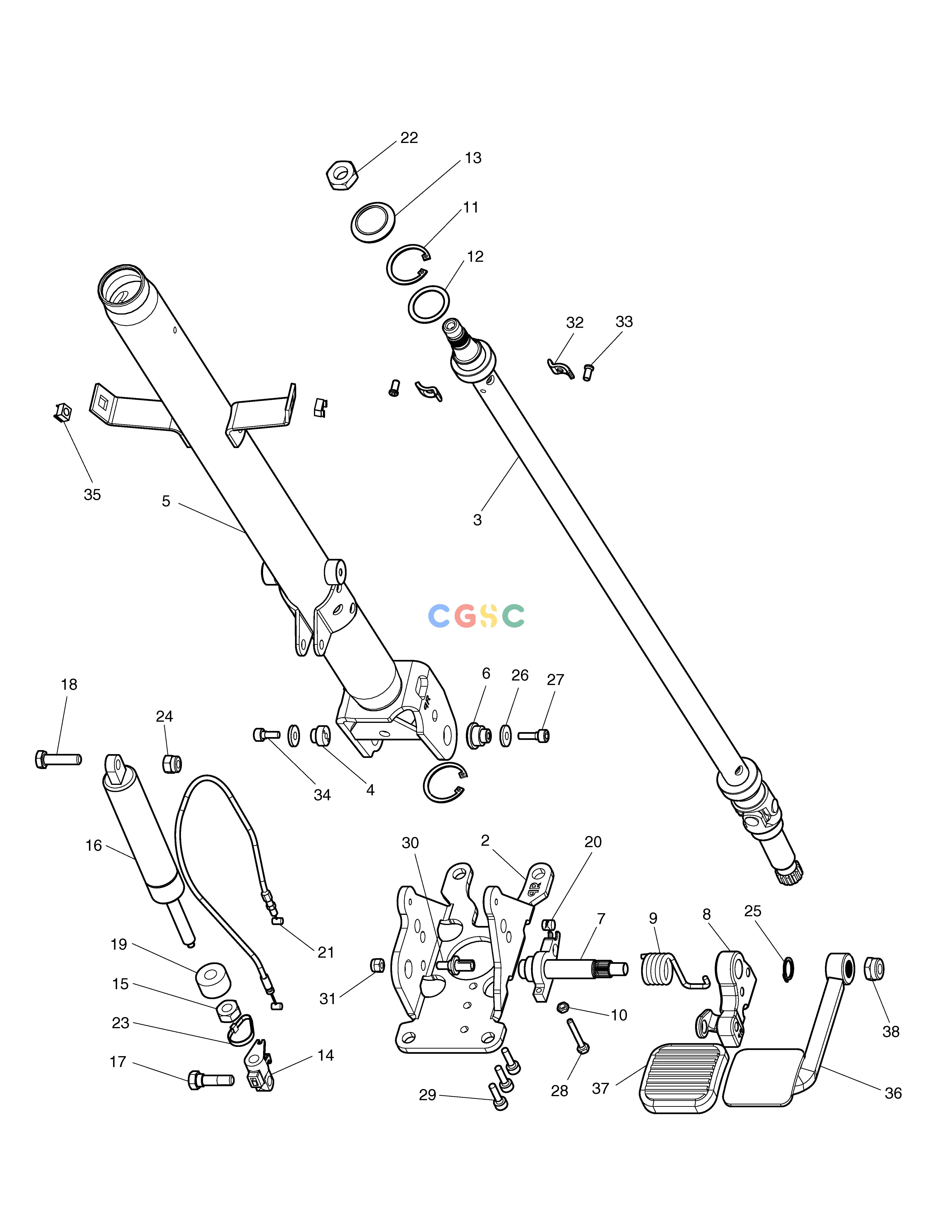

斗山零件查询COLUMN ASS'Y SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
791 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
303-00014
|
[1] |
COLUMN ASS'Y
|
|
| 10. |
011-006-007
|
[1] |
NUT M8X1.25
|
|
| 11. |
011-005-001
|
[2] |
RING;INTERNAL
|
|
| 12. |
002-007-001
|
[1] |
SHIM
|
|
| 13. |
002-004-001
|
[1] |
RUBBER;PROTECTION
|
|
| 14. |
041-019-284
|
[1] |
ATTACHMENT;SPRING
|
|
| 15. |
011-006-018
|
[1] |
NUT
|
|
| 16. |
041-008-344
|
[1] |
GAS SPRING
|
|
| 17. |
041-021-284
|
[1] |
PIVOT;LOWER
|
|
| 18. |
041-020-284
|
[1] |
PIVOT;UPPER
|
|
| 19. |
041-003-310
|
[1] |
SPACER;SPRING
|
|
| 2. |
041-008-397
|
[1] |
BASE
|
|
| 20. |
041-025-284
|
[1] |
LOCK
|
|
| 21. |
041-018-284
|
[1] |
CABLE;CONTROL
|
|
| 22. |
011-006-003
|
[1] |
NUT
|
|
| 23. |
011-044-001
|
[1] |
CLAMP
|
|
| 24. |
011-019-008
|
[1] |
NUT
|
|
| 25. |
011-005-013
|
[1] |
RING
|
|
| 26. |
011-007-004
|
[2] |
WASHER
|
|
| 27. |
011-014-002
|
[1] |
SCREW
|
|
| 28. |
011-012-023
|
[1] |
SCREW
|
|
| 29. |
011-014-005
|
[3] |
SCREW
|
|
| 3. |
041-001-397
|
[1] |
SHAFT
|
|
| 30. |
041-004-320
|
[1] |
STOP;CABLE
|
|
| 31. |
011-019-002
|
[1] |
NUT
|
|
| 32. |
041-006-060
|
[2] |
INDICATOR
|
|
| 33. |
041-009-060
|
[2] |
SCREW
|
|
| 34. |
011-014-022
|
[1] |
SCREW
|
|
| 35. |
011-031-001
|
[2] |
NUT
|
|
| 36. |
041-010-397
|
[1] |
PEDAL
|
|
| 37. |
011-056-001
|
[1] |
COVER;PEDAL
|
|
| 38. |
011-019-001
|
[1] |
NUT
|
|
| 4. |
023-032-882
|
[1] |
PIN;RIGHT
|
|
| 5. |
041-002-397
|
[1] |
TUBE;TILT
|
|
| 6. |
023-033-882
|
[1] |
PIN;LEFT
|
|
| 7. |
041-017-397
|
[1] |
PIN;PEDAL
|
|
| 8. |
041-006-284
|
[1] |
SUPPORT;PEDAL
|
|
| 9. |
041-012-007
|
[1] |
SPRING;PEDAL
|
|
