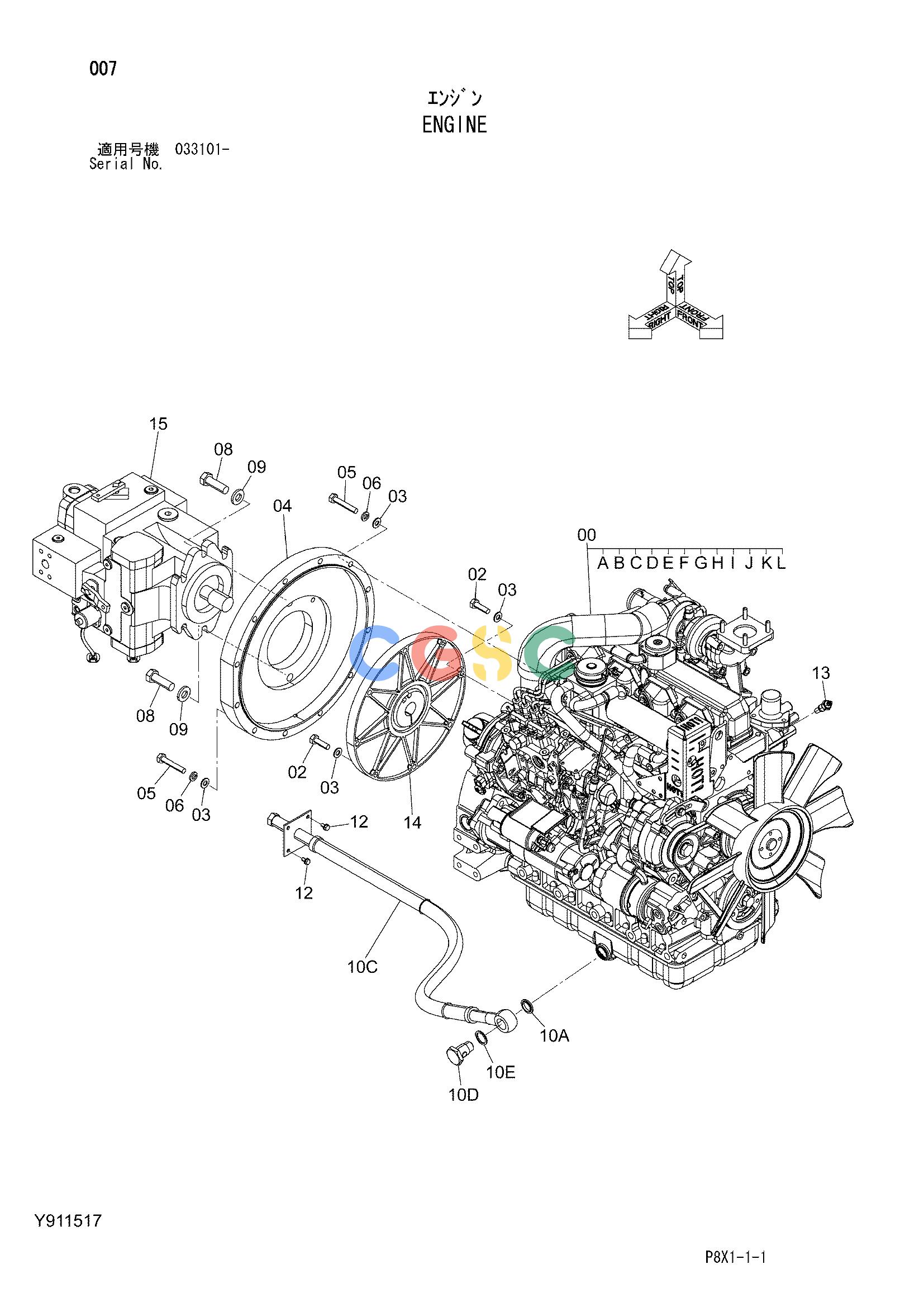

日立零件查询（CS125-3）ENGINE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
404 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y418270 | [1] | ENGINE | |
| 00A. | Y417692 | [1] | STARTER | |
| 00B. | Y417693 | [1] | ALTERNATER | |
| 00C. | Y417694 | [1] | SOLENOID | |
| 00D. | Y417695 | [1] | SWITCH;PRES. | |
| 00E. | Y417696 | [1] | GAUGE | |
| 00F. | Y417697 | [1] | FILTER;OIL | |
| 00G. | Y417698 | [1] | PULLEY | |
| 00H. | Y418186 | [1] | FAN | |
| 00I. | Y416169 | [1] | PULLEY | |
| 00J. | Y418187 | [1] | BELT;FAN | |
| 00K. | Y418188 | [1] | SPACER (FAN) | |
| 00L. | Y417699 | [1] | SENSOR;REVOL. | |
| 02. | J241035 | [8] | BOLT | |
| 03. | A590110 | [20] | WASHER;PLANE | |
| 04. | Y701198 | [1] | BRACKET | |
| 05. | J241060 | [12] | BOLT | |
| 06. | A590910 | [12] | WASHER;SPRING | |
| 08. | J921650 | [2] | BOLT | |
| 09. | J222016 | [2] | WASHER | |
| 10. | Y911518 | [1] | ENGINE DRAIN HOSE | |
| 10A. | Y415432 | [1] | PACKING | |
| 10B. | Y417777 | [1] | HOSE | |
| 10C. | Y410248 | [1] | HOSE | |
| 10D. | Y415420 | [1] | BOLT;JOINT | |
| 10E. | Y406119 | [1] | PACKING | |
| 12. | J260612 | [4] | BOLT;SEMS | |
| 12A. | J900612 | [1] | BOLT | |
| 12B. | A590106 | [1] | WASHER;PLANE | |
| 13. | Y417677 | [1] | SENSOR;THERMO | |
| 14. | Y417654 | [1] | COUPLING | |
| 15. | Y903591 | [1] | PUMP | |
| 15A. | Y404686 | [1] | PUMP;PISTON | |
| 15B. | Y404687 | [1] | PUMP;GEAR | |
