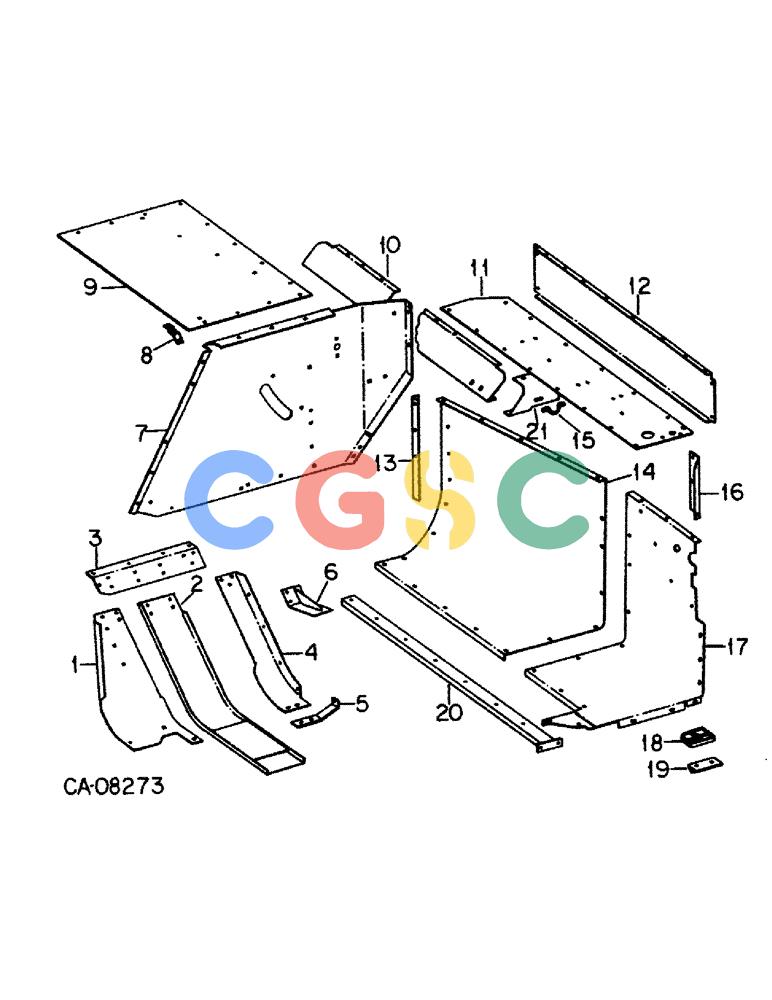

| 1. |
667743R1
|
[1] |
SHEET
|
IH
right front top
|
| . . |
670454R1
|
[1] |
NUT
|
IH
5/16-18 speed grip
|
| . . |
18508R1
|
[3] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 crg type 1 Superseded by part number: 86508748
|
| . . |
120377
|
[3] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[3] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 2. |
3102953R2
|
[1] |
CHANNEL
|
IH
assy packer
|
| . . |
17351R1
|
[4] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 crg type 1 Superseded by part number: 88682
|
| . . |
619856R1
|
[2] |
WASHER
|
IH
.406 x 1.000 x .056 Superseded by part number: 87613182
|
| 3. |
667745R1
|
[1] |
SHEET
|
IH
right center top
|
| . . |
470-12510
|
[3] |
SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"
|
CAS
1/4 x 5/8 znp p/hds mach
|
| . . |
938016R1
|
[3] |
FLANGE NUT,Flg, USR, 1/4"-20
|
IH
1/4 flange lock Superseded by part number: 523282
|
| 4. |
3102952R1
|
[1] |
SHEET
|
IH
right rear top
|
| . . |
160536
|
[3] |
SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"
|
IH
Superseded by part number: 86511931
|
| . . |
120375
|
[3] |
NUT,Hex, 1/4" - 20, Gr 5
|
IH
Superseded by part number: 7770
|
| . . |
492-11025
|
[3] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| 5. |
200884C2
|
[1] |
STRAP
|
IH
feed opening support
|
| . . |
180126
|
[1] |
BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5
|
IH
3/8 x 1-1/2 type 5 Superseded by part number: 113-209
|
| 6. |
3102974R1
|
[1] |
DEFLECTOR
|
IH
ASSY, packer
|
| 7. |
674212R1
|
[1] |
SHEET
|
IH
cross conveyor side
|
| 8. |
667742R1
|
[1] |
STRAP
|
IH
feed opening tie
|
| 9. |
1281044C1
|
[1] |
COVER
|
IH
W/PRODUCT GRAPHIC, cross conveyor, replaces 674215R1
|
| . . |
18673R1
|
[3] |
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
|
IH
BOLT, 5/16 x 1/2 crg type 1 Superseded by part number: 411-58
|
| . . |
120376
|
[3] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
80681
|
[3] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| . . |
ZA017196
|
[1] |
PRODUCT GRAPHIC, warning
|
|
| 10. |
1265882C1
|
[1] |
SHEET
|
IH
cross conveyor front
|
| . . |
413-412
|
[6] |
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
|
CAS
Superseded by part number: 9707580, 72187189
|
| . . |
672803R1
|
[9] |
NUT
|
IH
1/4-20 speed grip
|
| . . |
120392
|
[6] |
WASHER,1/4", SAE
|
IH
.281 x .625 x .051 Superseded by part number: 87361
|
| . . |
160578
|
[1] |
SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/2"
|
IH
1/4 x 1-1/2 znp p/hdcr mach Superseded by part number: 340-12524
|
| 11. |
674221R1
|
[1] |
TOP
|
IH
twine can
|
| . . |
413-410
|
[2] |
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
|
CAS
1/4 x 5/8 type 5 Superseded by part number: 280641
|
| . . |
21549R1
|
[2] |
WASHER
|
IH
.281 x .750 x .042 Superseded by part number: 495-81106
|
| . . |
16897R1
|
[1] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 5/16 x 3/4 crg type 1 Superseded by part number: 412-512
|
| 12. |
674226R1
|
[1] |
PANEL
|
IH
rear cross sheet
|
| 13. |
662151R1
|
[1] |
BRACE
|
IH
cross conveyor platform
|
| 14. |
204193C1
|
[1] |
PLATFORM
|
IH
cross conveyor
|
| 15. |
655108R2
|
[3] |
GUIDE
|
IH
twine
|
| . . |
106883
|
[6] |
RIVET,Truss Hd, 3/16" x 3/8"
|
IH
Superseded by part number: 87467
|
| 16. |
674224R1
|
[1] |
SHEET
|
IH
rear filler
|
| . . |
180018
|
[1] |
CONNECTING LINK
|
NNA
1/4 x 5/8 type 5 Superseded by part number: 413-410, 413-410, NLS
|
| . . |
21784R1
|
[1] |
WASHER
|
IH
.266 x .500 x .054 Superseded by part number: 86624137
|
| 17. |
204191C1
|
[1] |
SHEET
|
IH
ASSY, feed opening bottom
|
| . . |
86511938
|
[3] |
SCREW,Pan, 5/16" - 18 x 3/4"
|
FOR
5/16 x 3/4 znp p/hds mach
|
| 18. |
672150R1
|
[1] |
DEFLECTOR
|
IH
feed opening
|
| . . |
18685R1
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2
|
IH
BOLT, 3/8 x 1-1/2 crg type 1 Superseded by part number: 280552
|
| . . |
21872R1
|
[2] |
WASHER
|
IH
.406 x .625 x .054 Superseded by part number: 495-81128
|
| 19. |
674231R1
|
[1] |
ANGLE
|
IH
GUIDE, feed opening knife Superseded by part number: 203185C1
|
| . . |
18494R1
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 2
|
IH
3/8 x 1 type 1 Superseded by part number: 424-616
|
| 20. |
204187C1
|
[1] |
|
P
CHANNEL ASSY, cross conveyor support
|
| 21. |
674121R1
|
[1] |
SUPPORT
|
IH
face plate corner
|
| . . |
366861C1
|
[1] |
LOCK WASHER
|
IH
5/1L rib lock Superseded by part number: 322358, 83990583
|
