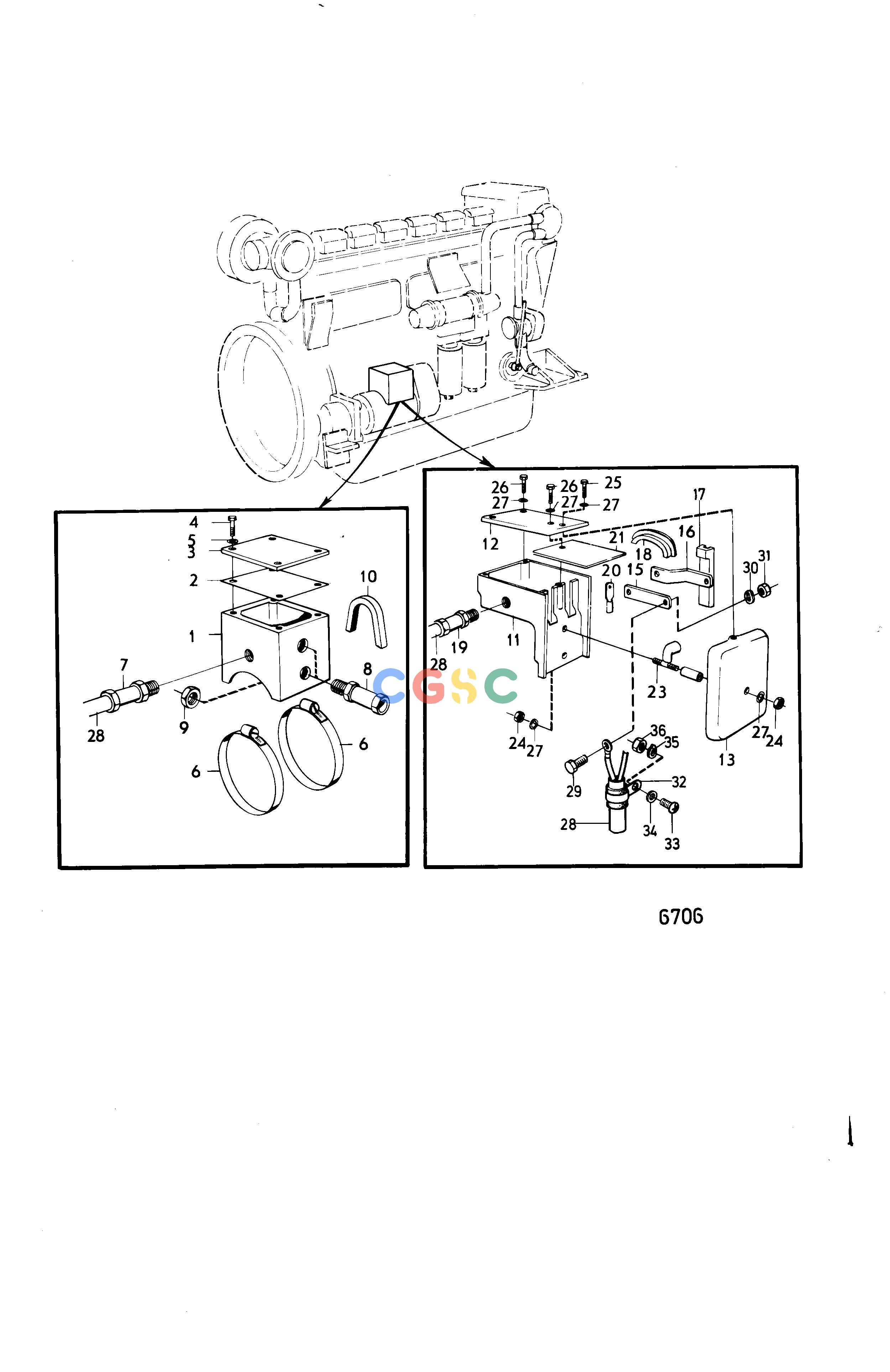

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCElectrical SystemStarter Casing and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
209 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
823515
|
[1] |
Protection
|
MO 12770/XXXXX-
|
| 2. |
823517
|
[1] |
Gasket
|
MO 12770/XXXXX-.
|
| 3. |
823516
|
[1] |
Cover
|
MO 12770/XXXXX-.
|
| 4. |
191038
|
[4] |
Hexagon screw
|
MO 12770/XXXXX-.
|
| 5. |
941905
|
[4] |
Spring washer
|
MO 12770/XXXXX-.
|
| 6. |
943484
|
[2] |
Hose clamp
|
MO 12770/XXXXX-., (951801)
|
| 7. |
881192
|
[1] |
Grommet
|
MO 12770/XXXXX-.
|
| 8. |
881193
|
[2] |
Grommet
|
MO 12770/XXXXX-.
|
| 9. |
880755
|
[2] |
Nut
|
MO 12770/XXXXX-.
|
| 10. |
823700
|
[1] |
Rubber moulding
|
MO 12770/XXXXX-., L=300mm
|
| 11. |
837377
|
[1] |
Clutch housing
|
Replaced by 1pc 841768.
|
| 12. |
837378
|
[1] |
Cap
|
Replaced by 1pc 841768.
|
| 13. |
837379
|
[1] |
Cap
|
Replaced by 1pc 841768.
|
| 14. |
837485
|
[2] |
Clamping sleeve
|
Replaced by 1pc 841768.
|
| 15. |
837483
|
[1] |
Guide rail
|
Replaced by 1pc 841768.
|
| 16. |
837484
|
[1] |
Guide rail
|
Replaced by 1pc 841768.
|
| 17. |
837486
|
[4] |
Housing
|
Replaced by 1pc 841768.
|
| 18. |
837488
|
[1] |
Sealing strip
|
Replaced by 1pc 841768.
|
| 19. |
881192
|
[1] |
Grommet
|
Replaced by 1pc 841768.
|
| 20. |
7742190_138
|
|
cable terminal
|
|
| 21. |
837558
|
[1] |
Guard plate
|
Replaced by 1pc 841768.
|
| 22. |
192618
|
[1] |
Hose
|
Replaced by 1pc 841768., L=50mm
|
| 23. |
946945
|
[1] |
Stud
|
Replaced by 1pc 841768.
|
| 24. |
955825
|
[2] |
Hexagon nut
|
Replaced by 1pc 841768.
|
| 25. |
955513
|
[1] |
Hexagon screw
|
Replaced by 1pc 841768.
|
| 26. |
940117
|
[3] |
Hexagon screw
|
Replaced by 1pc 841768.
|
| 27. |
941906
|
[6] |
Spring washer
|
Replaced by 1pc 841768.
|
| 28. |
|
|
|
Can't be used on alternator 841765.
|
| 29. |
955315
|
[2] |
Hexagon screw
|
Åkerman spec. 867477.
|
| 30. |
941908
|
[2] |
Spring washer
|
Åkerman spec. 867477.
|
| 31. |
955783
|
[2] |
Hexagon nut
|
Åkerman spec. 867477.
|
| 32. |
952630
|
[1] |
Clamp
|
Åkerman spec. 867477.
|
| 33. |
956095
|
[1] |
Cross recessed screw
|
Åkerman spec. 867477.
|
| 34. |
955892
|
[1] |
Washer
|
Åkerman spec. 867477.
|
| 35. |
941906
|
[1] |
Spring washer
|
Åkerman spec. 867477.
|
| 36. |
955781
|
[1] |
Hexagon nut
|
Åkerman spec. 867477.
|
