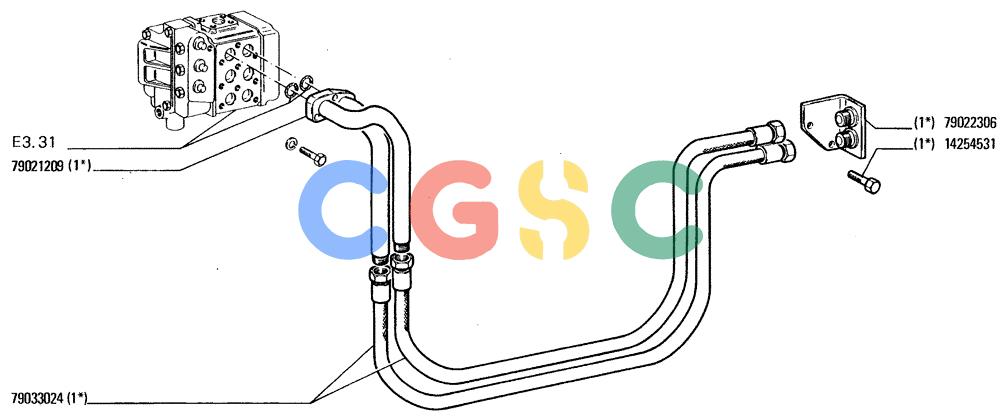

纽荷兰零件查询(FD20) - CRAWLER DOZER (E3.02[004A]) - HYDRAULIC SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
255 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 8274816. | 8274816 | [2] | FLEXIBLE HOSE | MKTHOSE Superseded by part number: 79033024 |
| 8283424. | 8283424 | [2] | HOSE | LEC |
| 8284189. | 8284189 | [2] | FLEXIBLE HOSE | LECHOSE Superseded by part number: 8274816 |
| 82954531. | 2 | [2] | STEP | CASHOSE |
| 14254531. | 14254531 | [2] | BOLT,Hex, M14 x 1.5 x 35mm, Cl 10.9 | MKTSCREW Superseded by part number: 14254530 |
| 79021209. | 79021209 | [1] | RIGID TUBE | LECPIPE |
| 79022306. | 79022306 | [1] | BRACKET | LEC |
| 79033024. | 79033024 | [2] | FLEXIBLE HOSE | LECHOSE |
