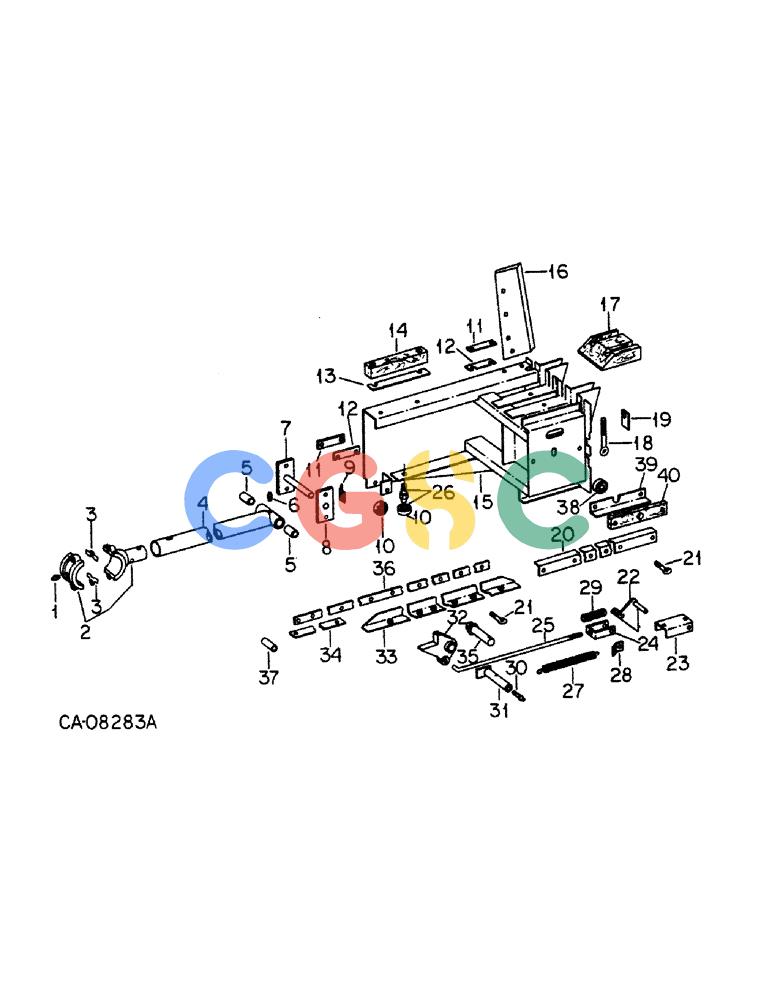

| 1. |
109461
|
[1] |
LUBE NIPPLE,1/8"-27 x .66 lg
|
IH
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg Superseded by part number: 80710
|
| 2. |
495177R21
|
[1] |
BEARING ASSY,4.5" OD x 2.97"
|
IH
BEARING ASSY, pitman front, for 435 and 445 twine balers
|
| . . |
179893
|
[2] |
BOLT,Hex, 1/2" - 13 x 3", Gr 5
|
IH
1/2 x 3 pln type 5 Superseded by part number: 87339
|
| . . |
664573R1
|
[2] |
LOCK NUT,1/2"-13, GB
|
IH
NUT, 1/2-13 hex. lock Superseded by part number: 231-4218
|
| . . |
103323
|
[2] |
LOCK WASHER,1/2"
|
IH
WASHER, LOCK, 1/2" Superseded by part number: 87326976
|
| 3. |
495278R2
|
[16] |
SHIM
|
IH
pitman brg (or as required)
|
| 4. |
667943R91
|
[1] |
PITMAN
|
IH
ASSY
|
| 5. |
664976R1
|
[2] |
BUSHING,31.8mm ID x 34.95mm OD x 44.7mm L
|
IH
pitman rear
|
| 6. |
127743
|
[1] |
LUBE NIPPLE,65 Degree, 1/8" NPT x 1.20" lg
|
IH
FITTING, 1/8 PTF short 65D lub Superseded by part number: 219-41
|
| 7. |
668358R91
|
[1] |
SUPPORT
|
IH
BLOCK ASSY, plunger pitman
|
| 8. |
668359R1
|
[1] |
BLOCK
|
IH
pitman
|
| . . |
673707R1
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
|
IH
BOLT, 1/2 x 1-1/2 pln crg type 5
|
| 9. |
668362R1
|
[1] |
STRIP
|
IH
SCRAPER, plunger front
|
| . . |
271723
|
[1] |
SNAP RING,Hex, 5/8" - 11 x 2", Gr 5
|
NNA
5/8 x 2 type 5 Superseded by part number: 413-1032, 413-1032, NLS
|
| . . |
492-11062
|
[1] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| . . |
608701R1
|
[1] |
WASHER
|
IH
.656 x 1.250 x .054 Superseded by part number: 86624155
|
| . . |
21793R1
|
[1] |
WASHER
|
IH
.656 x 1.250 x .164 Superseded by part number: 495-81179
|
| 10. |
667925R91
|
[4] |
ROLLER BEARING,0.628" ID x 2" OD x 15 mm
|
IH
plunger roller Superseded by part number: 47577176
|
| . . |
NLS
|
[1] |
NO LONGER SERVICED
|
BAS
5/8 x 1-1/2 type 5
|
| 11. |
668367R1
|
[2] |
PAD
|
IH
wearing lower
|
| . . |
180075
|
[4] |
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
|
IH
5/16 x 5/8 type 5 Superseded by part number: 9627874
|
| . . |
80681
|
[4] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 12. |
668368R1
|
[4] |
SHIM
|
IH
plunger lower (or as required)
|
| 13. |
668365R1
|
[3] |
SHIM,45.72mm OD x 0.76mm Thk
|
IH
plunger upper right (or as required)
|
| 14. |
668364R2
|
[1] |
BLOCK
|
IH
plunger upper right
|
| . . |
18474R1
|
[2] |
BOLT,Hex, 5/16" - 18 x 1", Gr 2
|
IH
5/16 x 1 type 1 Superseded by part number: 424-516
|
| . . |
453838
|
[2] |
NUT
|
IH
5/16 znp 3 long prg base tee
|
| 15. |
674043R2
|
[1] |
PLUNGER
|
IH
ASSY
|
| 16. |
667684R2
|
[1] |
KNIFE
|
IH
hay Superseded by part number: 203021C1
|
| . . |
21538R1
|
[3] |
CARRIAGE BOLT,#3, 5/8" - 11 x 1 1/2", Gr 2
|
IH
BOLT, 5/8 x 1-1/2 znd plow type 1
|
| . . |
280374
|
[3] |
NUT,Hex, 5/8" - 11, Gr 5
|
NH
5/8 type 5
|
| 17. |
668375R1
|
[1] |
BLOCK
|
IH
plunger upper center
|
| . . |
18422R1
|
[2] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2
|
IH
BOLT, 3/8 x 1-3/4 crg type 1 Superseded by part number: 411-628
|
| . . |
120377
|
[2] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[2] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 18. |
667922R1
|
[1] |
BOLT,Eye, 5/8" - 11 x 4.69"
|
IH
plunger eye
|
| . . |
120378
|
[2] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| 19. |
668363R1
|
[1] |
SCRAPER
|
IH
plunger rear
|
| . . |
12872R1
|
[1] |
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
|
IH
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd Superseded by part number: 598803R1
|
| . . |
120376
|
[1] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
120393
|
[1] |
BEARING WASHER,5/16", SAE
|
IH
WASHER, .344 x .688 x .051 Superseded by part number: 28588R1
|
| 20. |
674057R1
|
[1] |
ANGLE
|
IH
plunger guide
|
| . . |
180118
|
[6] |
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5
|
IH
3/8 x 5/8 type 5 Superseded by part number: 88703
|
| . . |
477242R1
|
[6] |
WASHER
|
IH
.406 x 1.000 x .027
|
| 21. |
674056R1
|
[2] |
BOLT,Eye, 1/2" - 13 x 2.70"
|
IH
plunger guide eye
|
| . . |
120238
|
[2] |
JAM NUT,Jam, 1/2"-13, G5
|
IH
1/2 jam type 5 Superseded by part number: 329-148
|
| . . |
21741R1
|
[1] |
WASHER
|
IH
.406 x .875 x .105 (or as required) Superseded by part number: 495-81133
|
| 22. |
201581C1
|
[1] |
STOP
|
IH
ARM ASSY, plunger stop
|
| . . |
20869R1
|
[1] |
WASHER
|
IH
.531 x .875 x .054 Superseded by part number: 86622500
|
| . . |
18481R1
|
[1] |
COTTER PIN,3/16" x 1"
|
IH
PIN, SPLIT (COTTER), 3/16" x 1" Superseded by part number: 432-1216
|
| 23. |
674071R1
|
[1] |
BRACKET
|
IH
plunger stop mounting
|
| . . |
18508R1
|
[2] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 crg type 1 Superseded by part number: 86508748
|
| 24. |
674072R1
|
[1] |
CLEVIS
|
IH
plunger stop link
|
| 25. |
674064R1
|
[1] |
LINKAGE
|
IH
LINK, plunger stop
|
| . . |
137185
|
[2] |
COTTER PIN,1/8" x 1"
|
IH
PIN, SPLIT (COTTER), 1/8" x 1" Superseded by part number: 80755
|
| . . |
21740R1
|
[2] |
WASHER
|
IH
.531 x 1.500 x .054 Superseded by part number: 495-81161
|
| 26. |
674058R21
|
[2] |
BEARING ASSY
|
IH
BEARING ASSY, plunger roller Superseded by part number: 47577176, 674058R2
|
| 27. |
655919R1
|
[1] |
SPRING
|
IH
plunger stop Superseded by part number: 292927A1
|
| 28. |
674065R1
|
[1] |
ANCHOR
|
IH
plunger stop spring
|
| 29. |
664301R1
|
[1] |
SPRING
|
IH
plunger stop relief
|
| 30. |
332040
|
[1] |
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
|
WIN
FITTING, 1/8 PTF short 90D lub
|
| 31. |
674061R1
|
[1] |
PIVOT
|
IH
ASSY, plunger stop
|
| . . |
18495R1
|
[1] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8 x 1-1/4 type 1 Superseded by part number: 180124
|
| 32. |
674060R1
|
[1] |
STOP
|
IH
plunger
|
| 33. |
203032C1
|
[1] |
ANGLE
|
IH
plunger guide thrust
|
| . . |
19020R1
|
[4] |
PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2
|
IH
BOLT, 3/8 x 1-1/4 plow type 1 Superseded by part number: 19031R1
|
| . . |
19023R1
|
[2] |
CARRIAGE BOLT,#3, 3/8" - 16 x 2", Gr 2
|
IH
BOLT, 3/8 x 2 plow type 1 Superseded by part number: 419-3632
|
| 34. |
674059R2
|
[1] |
LARGE PLATE
|
IH
EXTENSION, bottom plate
|
| 35. |
674073R1
|
[1] |
SLEEVE
|
IH
ASSY, plunger stop spring
|
| . . |
20704R1
|
[1] |
WASHER
|
IH
1.031 x 1.500 x .105 Superseded by part number: 86624170
|
| . . |
21648R1
|
[1] |
LOCK PIN,1/4" x 1 1/4", Slotted
|
IH
Pin, 1/4" x 1 1/4", Slotted Superseded by part number: 438-11620
|
| . . |
366112R1
|
[1] |
WASHER
|
IH
.781 x 1.250 x .105 Superseded by part number: 87024778
|
| . . |
22752R1
|
[1] |
SPLIT PIN/SAFETY PIN
|
IH
PIN, 3/8 x 2.250 hd type 1 Superseded by part number: 86624081
|
| . . |
648002
|
[1] |
1/8" x 3/4"
|
KNIFE
|
| . . |
619856R1
|
[1] |
WASHER
|
IH
.406 x 1.000 x .056 Superseded by part number: 87613182
|
| 36. |
203015C1
|
[1] |
PLATE
|
IH
STRIP, plunger thrust Superseded by part number: 203015C2, 664542R1
|
| . . |
180077
|
[6] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
IH
5/16 x 3/4 type 5 Superseded by part number: 87872
|
| . . |
9635884
|
[2] |
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
|
NH
5/16 x 1 type 5
|
| . . |
180080
|
[1] |
BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd
|
IH
5/16 x 1-1/8 type 5 Superseded by part number: 413-518
|
| . . |
22859R1
|
[9] |
WASHER
|
IH
.344 x .750 x .164 Superseded by part number: 495-81113
|
| 37. |
674582R1
|
[1] |
NIPPLE, LUBE
|
IH
NIPPLE, plunger stop
|
| 38. |
3103279R1
|
[1] |
PIVOT
|
IH
BUSHING, plunger slide
|
| 39. |
3103024R1
|
[1] |
ANGLE
|
IH
plunger slide
|
| . . |
492-11025
|
[2] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| . . |
413-412
|
[2] |
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
|
CAS
Superseded by part number: 9707580, 72187189
|
| 40. |
3103023R1
|
[1] |
SLIDE
|
IH
plunger
|
| . . |
271726
|
[1] |
ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5
|
IH
5/8 x 2-3/4 type 5 Superseded by part number: 413-1044, 413-1044, NLS
|
