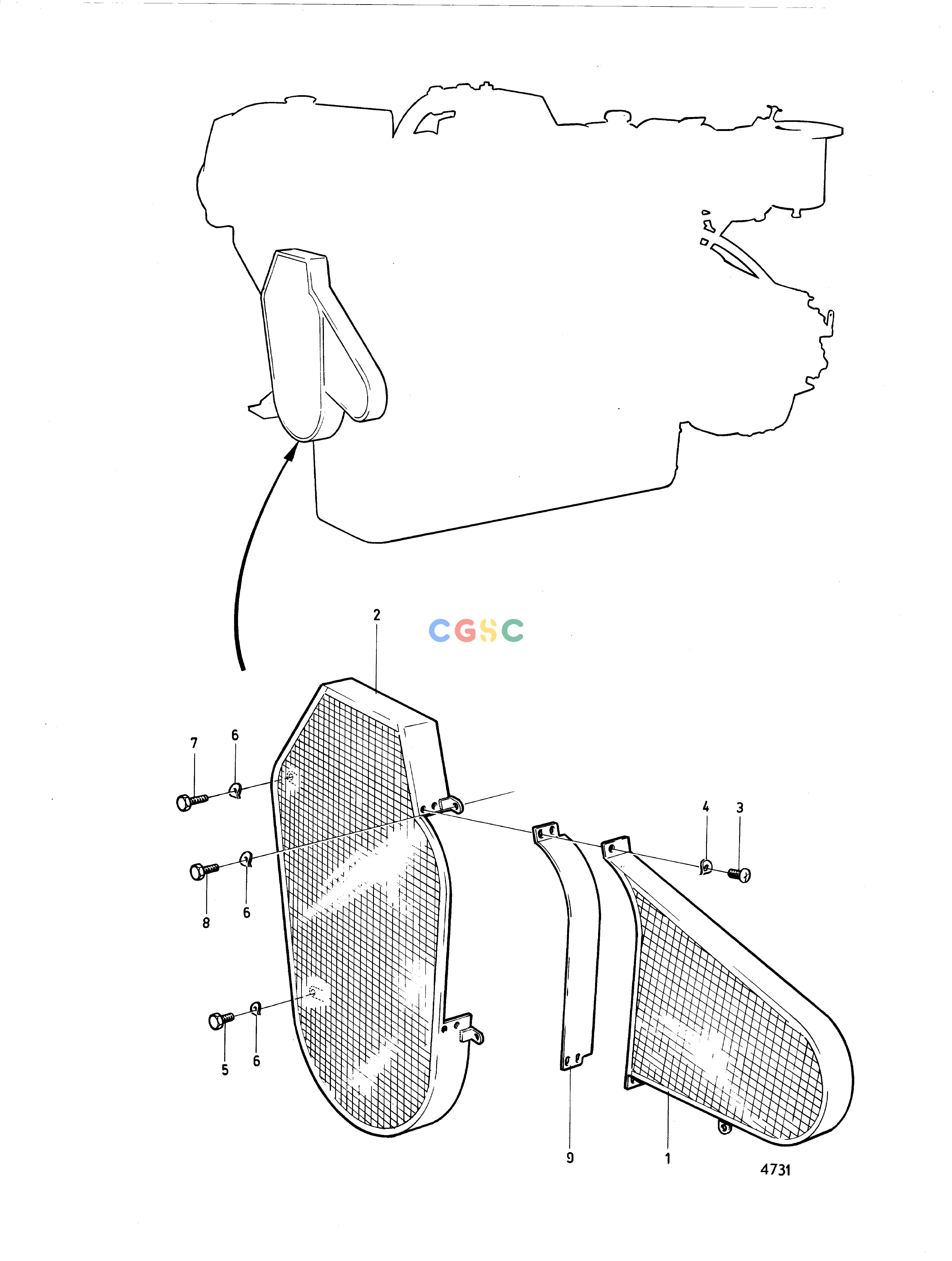

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCEngineBelt Protection and Installation Components, Auxiliary Engine: CEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
179 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
836700
|
[1] |
Belt protector
|
|
| 2. |
836730
|
[1] |
Belt protector
|
|
| 3. |
950043
|
[4] |
Cross recessed screw
|
AQ115A MOXXXX/86909-.
|
| 4. |
941906
|
[4] |
Spring washer
|
AQ115A MOXXXX/86909-.
|
| 5. |
955544
|
[2] |
Hexagon screw
|
|
| 6. |
942336
|
[4] |
Spring washer
|
|
| 7. |
955541
|
[1] |
Hexagon screw
|
|
| 8. |
955539
|
[1] |
Hexagon screw
|
|
| 9. |
836063
|
[1] |
Protecting plate
|
AQ115A MOXXXX/86909-
|
