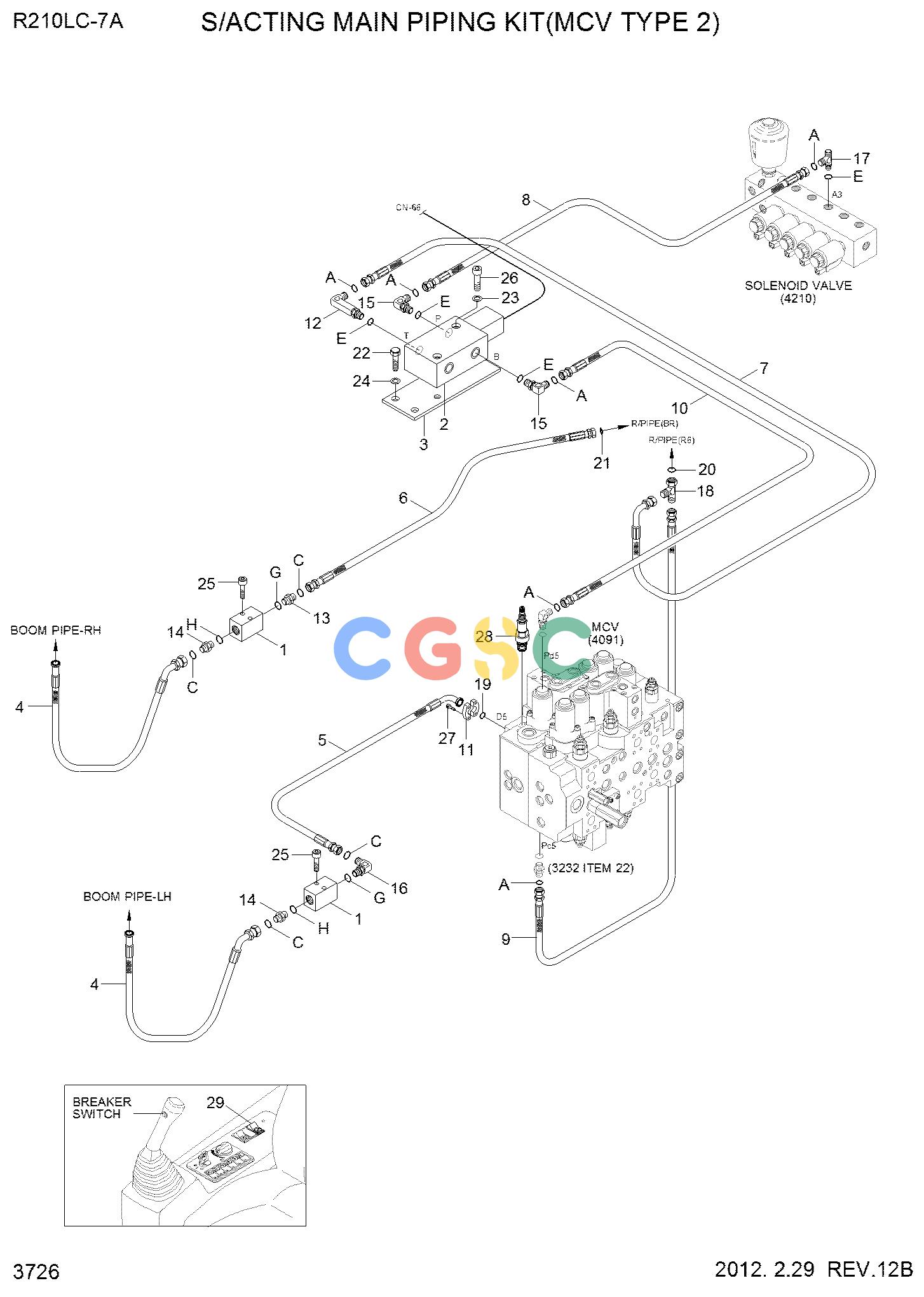

现代零件查询R210LC-7A S/ACTING MAIN PIPING KIT(MCV TYPE 2)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
592 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -1. |
31N6-92310
|
[2] |
BRACKET
|
|
| 1. |
31EM-91540
|
[2] |
JOINT ASSY-HOSE
|
|
| 2. |
31N6-91230D
|
[1] |
SOLENOID VLV-BREAKER
|
|
| 2-1. |
XKBN-00192
|
[1] |
COIL-BREAKER SOL
|
|
| 3. |
31N6-91250
|
[1] |
BRACKET-SOL VLV
|
|
| 4. |
P973-166327
|
[2] |
HOSE ASSY-ORFS,FLG 0X90
|
|
| 5. |
P983-166319
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 6. |
P913-163021
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 7. |
P930-042040
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 8. |
P910-042019
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 9. |
P910-042022
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 10. |
P910-042048
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 11. |
P173-160104
|
[2] |
FLANGE-SPLIT
|
|
| 12. |
31N6-25110
|
[1] |
ELBOW-90,LONG
|
|
| 13. |
X500-110005
|
[1] |
CONNECTOR-ORFS
|
|
| 14. |
X500-110021
|
[2] |
CONNECTOR-ORFS
|
|
| 15. |
X520-110001
|
[2] |
ELBOW-90 SWIVEL,ORFS
|
|
| 16. |
X520-110005
|
[1] |
ELBOW-90,ORFS
|
|
| 17. |
X820-045151
|
[1] |
TEE-R/TYPE,ORFS
|
|
| 18. |
X840-515151
|
[1] |
TEE-R/TYPE,SWIVEL,ORFS
|
|
| 19. |
Y171-024004
|
[1] |
O-RING
|
|
| 20. |
S621-011001
|
[1] |
O-RING
|
|
| 21. |
S621-021001
|
[1] |
O-RING
|
|
| 22. |
S017-100256
|
[2] |
BOLT-HEX
|
|
| 23. |
S411-080006
|
[2] |
WASHER-SPRING
|
|
| 24. |
S411-100006
|
[2] |
WASHER-SPRING
|
|
| 25. |
S109-120656
|
[4] |
BOLT-SOCKET
|
|
| 26. |
S109-080456
|
[2] |
BOLT-SOCKET
|
|
| 27. |
S109-100306
|
[4] |
BOLT-SOCKET
|
|
| A. |
S621-011001
|
[6] |
O-RING
|
|
| B. |
S621-021001
|
[4] |
O-RING
|
|
| E. |
S631-011004
|
[4] |
O-RING
|
|
| G. |
S631-029004
|
[2] |
O-RING
|
|
| H. |
S631-038004
|
[2] |
O-RING
|
|
| 28. |
XKBF-01455
|
[2] |
RELIEF VALVE-OVERLOAD
|
|
| 28. |
XKBF-01604
|
[2] |
OPT OVERLOAD RELIEF V/V
|
|
| 29. |
21E6-30540
|
[2] |
SWITCH-BREAKER
|
|
