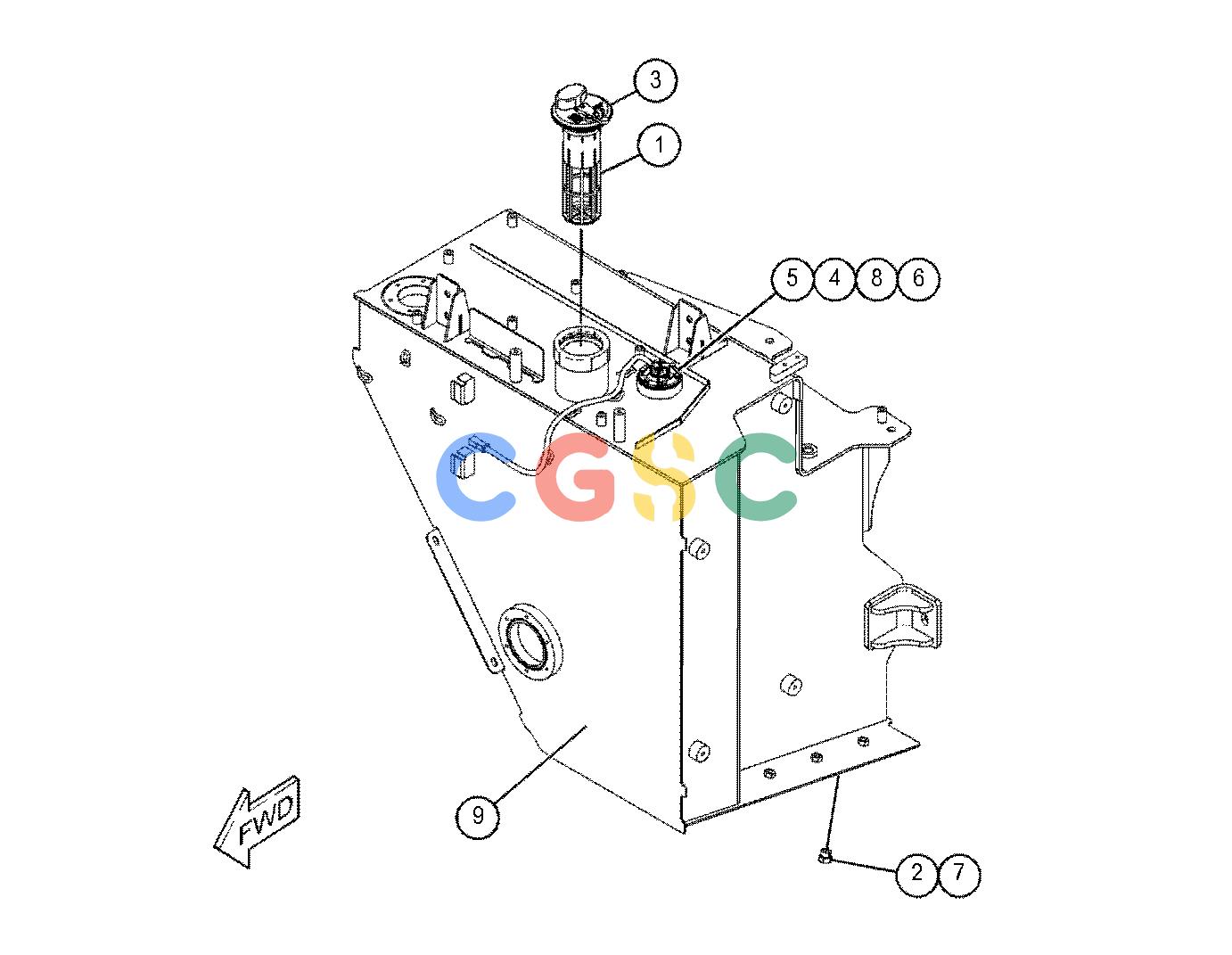

卡特零件查询（730） 515-0271: TANK GP-FUEL
广数供应链运营团队, 15 02月, 2025，浏览：
742 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9P-7121 | [1] | STRAINER-FUEL(FUEL TANK) | |
| 2. | 304-6792 | [1] | PLUG | |
| 3. | 349-7059 | [1] | CAP AS-FUEL(LOCKABLE, VENTED) | |
| | 350-7735 | [1] | KIT-CAP FILTER(FUEL TANK) | |
| | | | (INCLUDES BREATHER BODY, BREATHER GASKET, SCREWS & WASHERS) |
| 4. | 363-4122 | [1] | GASKET | |
| 5. | 380-3891 | [1] | SENDER AS-FUEL LEVEL(TANK) | |
| | 6C-3060 | [1] | GASKET | |
| | | | -OR- |
| | 363-4122 | [1] | GASKET | |
| | 382-1939 | [1] | KIT-DIAL SENSOR | |
| | | | (INCLUDES SENSOR AS, SCREWS, RECEPTACLE AS, WEDGE & PIN CONNECTORS) |
| 6. | 9X-8256 | [6] | WASHER(6.6X12X2-MM THK) | |
| 7. | 2M-9780 | [1] | SEAL-O-RING | |
| 8. | 8T-4138M | [6] | BOLT(M6X1X20-MM) | |
| 9. | 500-6374 | [1] | TANK AS-FUEL | |
| | M | | METRIC PART |
