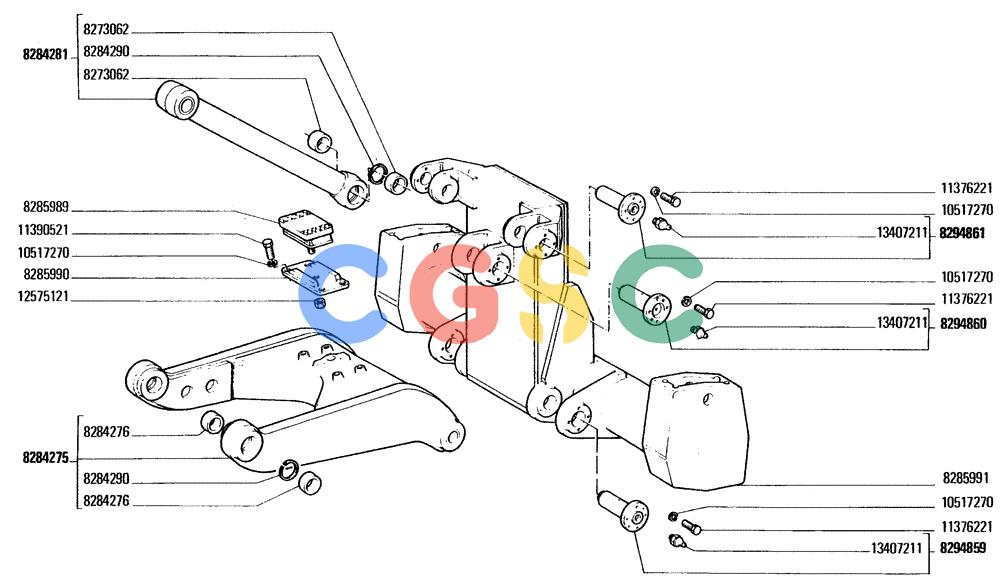

纽荷兰零件查询(FD20) - CRAWLER DOZER (E3.10/1[001]) - RIPPER LIFT ARMS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
810 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 8273062. | 8273062 | [4] | BUSHING | LECBUSH |
| 8284275. | 8284275 | [1] | FRAME | LEC |
| 8284276. | 8284276 | [8] | BUSHING | LECBUSH |
| 8284281. | 8284281 | [1] | STRUT | LEC |
| 8284290. | 8284290 | [6] | SPACER | LEC |
| 8285989. | 8285989 | [1] | PAD | LEC Superseded by part number: 76092115 |
| 8285990. | 8285990 | [1] | PLATE | LEC Superseded by part number: 76092116 |
| 8285991. | 8285991 | [1] | ARM | LEC |
| 8294859. | 8294859 | [2] | PIN | LEC Superseded by part number: 8284267 |
| 8294860. | 8294860 | [1] | PIN | LEC Superseded by part number: 8274427 |
| 8294861. | 8294861 | [2] | PIN | LEC Superseded by part number: 8280513 |
| 10517270. | 10517270 | [4] | LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk | MKTLOCKWASHER Superseded by part number: 10517271 |
| 11376221. | 11376237 | [20] | BOLT,Hex, M16 x 1.5 x 35mm, Cl 8.8 | LEC |
| 11390521. | 11390521 | [4] | BOLT,Hex, M16 x 1.5 x 40, 8.8, Full Thd | TTF Superseded by part number: 11390531 |
| 12575121. | 12575121 | [1] | NUT,M20 x 1.5, Cl 10 | IMONUT |
| 13407211. | 13407211 | [5] | LUBE NIPPLE,M10 x 1 | TTFNIPPLE, LUBE, M10 x 1 Superseded by part number: 84351730 |
