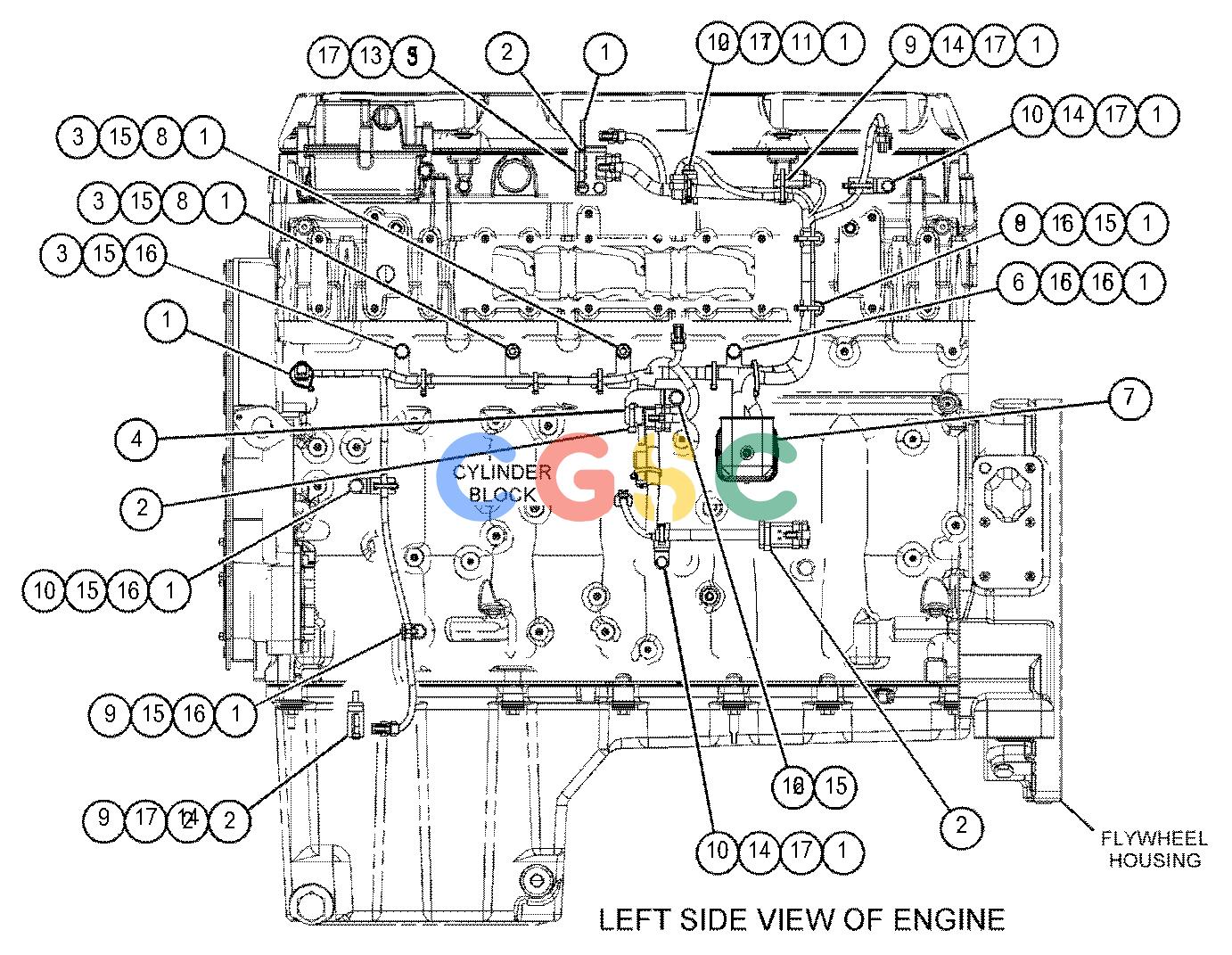

卡特零件查询（730） 417-0980: WIRING GP-ELECTRONIC CONTROL
广数供应链运营团队, 15 02月, 2025，浏览：
368 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [16] | STRAP-CABLE | |
| 2. | 7K-1181 | [4] | STRAP-CABLE | |
| 3. | 224-9222 | [3] | BRACKET | |
| 4. | 312-8415 | [1] | BRACKET | |
| 5. | 347-3869 | [1] | CLIP | |
| 6. | 417-2409 | [1] | BRACKET | |
| 7. | 434-9531Y | [1] | HARNESS AS-SENSOR | |
| 8. | 101-3129M | [2] | STUD(M10X1.5-THD) | |
| 9. | 132-5789 | [5] | CLIP(LADDER) | |
| 10. | 4P-7581 | [3] | CLIP(LADDER) | |
| 11. | 4P-8134 | [1] | CLIP(LADDER) | |
| 12. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 13. | 6V-5215M | [2] | BOLT(M8X1.25X16-MM) | |
| 14. | 6V-5217M | [4] | BOLT(M8X1.25X20-MM) | |
| 15. | 6V-5839 | [9] | WASHER(11X21X2.5-MM THK) | |
| 16. | 6V-6317M | [7] | BOLT(M10X1.5X20-MM) | |
| 17. | 9M-1974 | [7] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
