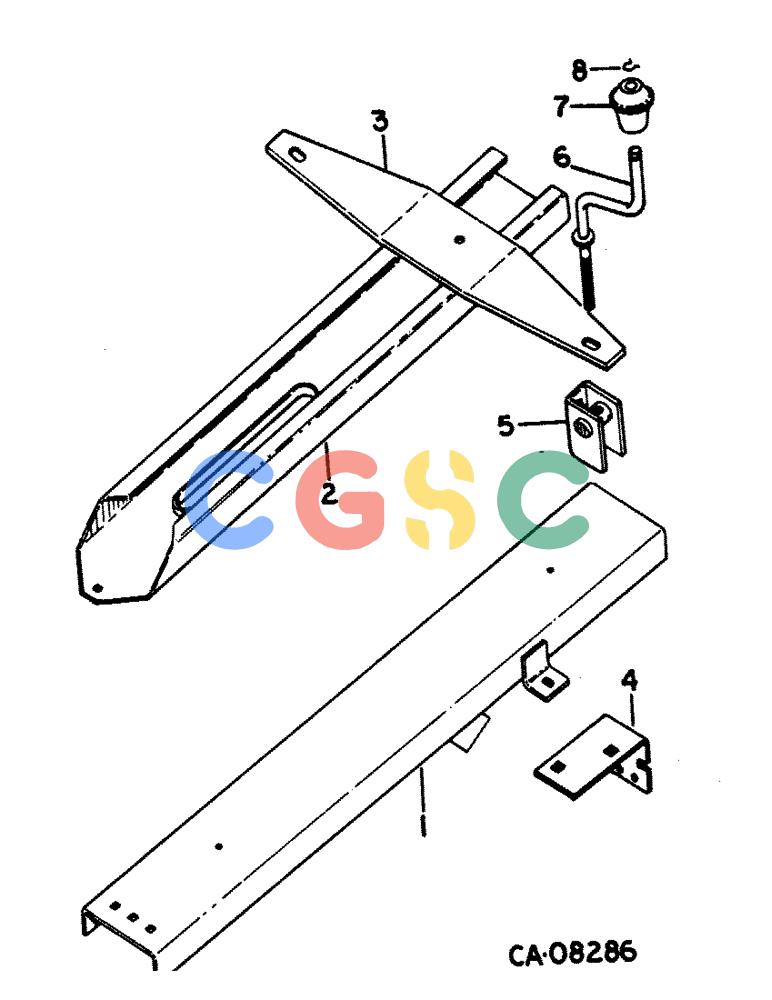

| 1. |
674360R1
|
[1] |
CHANNEL, lower tension
|
|
| . . |
495967R1
|
[2] |
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
|
IH
BOLT, 3/8 x 1 crg type 5 Superseded by part number: 80280503
|
| . . |
120382
|
[2] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
120377
|
[2] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| 2. |
674025R1
|
[1] |
X
|
IH
CHANNEL, upper tension
|
| 3. |
670680R1
|
[1] |
SPRING
|
IH
tension
|
| . . |
18700R1
|
[1] |
CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 3", Gr 2
|
IH
BOLT, 7/16 x 3 crg type 1 Superseded by part number: 411-748
|
| . . |
271501
|
[1] |
SOCKET
|
NNA
NUT, 7/16 type 5
|
| . . |
120383
|
[1] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| 4. |
674374R1
|
[1] |
|
P
BRACE, lower
|
| . . |
180173
|
[2] |
BOLT,Hex, 1/2" - 13 x 1", Gr 5
|
IH
Superseded by part number: 113-424
|
| . . |
120378
|
[2] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| . . |
120384
|
[2] |
WASHER,1/2"
|
IH
LOCK, 1/2" Superseded by part number: 116121
|
| . . |
17142R1
|
[2] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 2
|
IH
BOLT, 3/8 x 3-1/2 crg type 1 Superseded by part number: 111-337
|
| 5. |
671126R91
|
[2] |
SUPPORT
|
IH
ASSY, bale tension
|
| . . |
598809R1
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
IH
BOLT, 3/8 x 3/4 crg type 5 Superseded by part number: 86508748
|
| . . |
385525R1
|
[2] |
LOCK NUT,3/8"-16, GB
|
IH
NUT, 3/8-16 cdp hex. lock Superseded by part number: 87039402
|
| 6. |
200673C1
|
[2] |
CRANK
|
IH
SCREW ASSY, tension adjusting
|
| . . |
589068R1
|
[2] |
WASHER
|
IH
.656 x 1.250 x .090 Superseded by part number: 495-51066
|
| 7. |
201397R1
|
[2] |
KNOB
|
|
| 8. |
321935C1
|
[2] |
SNAP RING,#62, Ext
|
IH
RING, .553 crescent ext ret Superseded by part number: 129345
|
