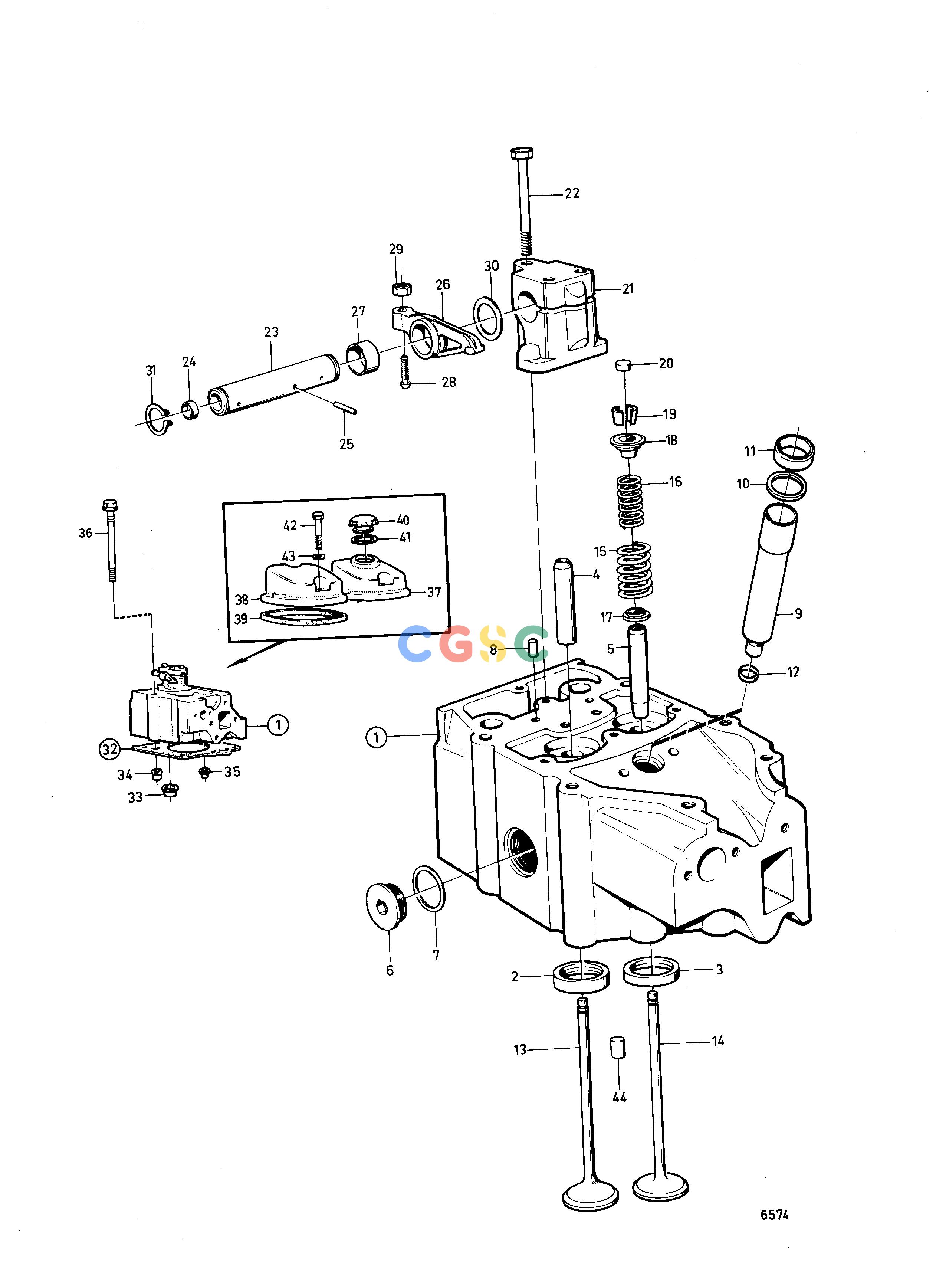

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCEngineCylinder HeadEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
653 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803041
|
[6] |
Cylinder head
|
(470244)
|
| 2. |
423011
|
[6] |
Valve seat, intake
|
Std D
|
| 2. |
423208
|
[6] |
Valve seat, intake
|
0.20mm o.s
|
| 3. |
468448
|
[6] |
Valve seat, exhaust
|
Std D
|
| 3. |
468449
|
[6] |
Valve seat, exhaust
|
0.20mm o.s
|
| 4. |
422320
|
[6] |
Valve guide, intake
|
|
| 5. |
1545135
|
[6] |
Valve guide, exhaust
|
|
| 6. |
467365
|
[12] |
Plug
|
|
| 7. |
469327
|
[12] |
Gasket
|
|
| 8. |
950543
|
[12] |
Pin
|
|
| 9. |
470247
|
[6] |
Sleeve
|
|
| 10. |
466405
|
[6] |
Sealing ring
|
|
| 11. |
466420
|
[6] |
Ring
|
|
| 12. |
948965
|
[6] |
Sealing ring
|
|
| 13. |
468302
|
[6] |
Inlet valve
|
|
| 14. |
468303
|
[6] |
Exhaust valve
|
|
| 15. |
468067
|
[12] |
Valve spring, outer
|
|
| 16. |
468066
|
[12] |
Valve spring, inner
|
|
| 17. |
468065
|
[12] |
Valve spring washer, lower
|
|
| 18. |
468304
|
[12] |
Valve spring washer, upper
|
|
| 19. |
468305
|
[24] |
Valve cotter
|
|
| 20. |
469365
|
[12] |
Valve cap
|
|
| 21. |
423266
|
[6] |
Bearing bracket
|
|
| 22. |
423331
|
[18] |
Flange screw
|
|
| 23. |
423267
|
[6] |
Rocker arm shaft
|
|
| 24. |
946778
|
[12] |
Cap plug
|
|
| 25. |
950499
|
[6] |
Pin
|
|
| 26. |
423263
|
[12] |
Rocker arm
|
|
| 27. |
422066
|
[12] |
Bushing
|
|
| 28. |
423058
|
[12] |
Ball stud
|
|
| 29. |
940175
|
[12] |
Hexagon nut
|
|
| 30. |
423269
|
[12] |
Washer
|
|
| 31. |
914459
|
[12] |
Snap ring
|
|
| 32. |
275548
|
[6] |
Cylinder head gasket
|
|
| 33. |
423326
|
[12] |
Sealing ring
|
|
| 34. |
422415
|
[12] |
Sealing ring
|
|
| 35. |
422413
|
[6] |
Sealing ring
|
|
| 36. |
470261
|
[48] |
Flange screw
|
|
| 37. |
423404
|
[1] |
Cover
|
|
| 38. |
423403
|
[5] |
Cover
|
|
| 39. |
468963
|
[6] |
Gasket
|
|
| 40. |
420292
|
[1] |
Oil filler cap
|
|
| 41. |
940096
|
[1] |
Gasket
|
|
| 42. |
955527
|
[12] |
Hexagon screw
|
|
| 43. |
942580
|
[12] |
Gasket
|
|
| 44. |
950543
|
[12] |
Pin
|
|
