纽荷兰零件查询(FD20) - CRAWLER DOZER (E3.10/7[001]) - MOLDBOARD (ANGLE) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
235 次

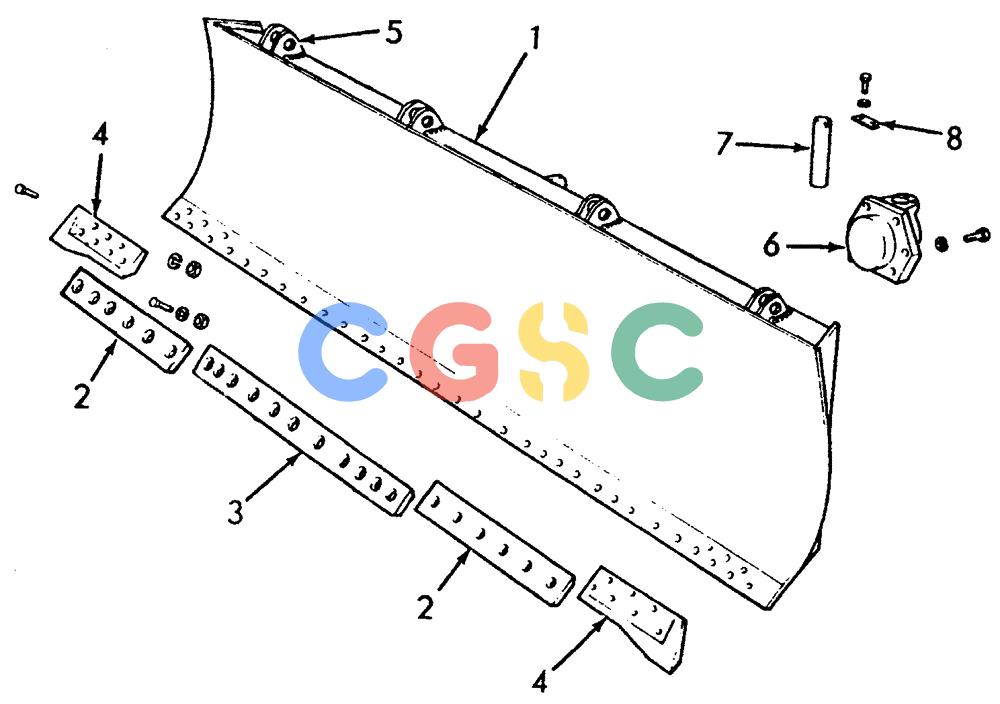

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8294430 | [1] | MOLDBOARD | LECASSY. (UNIT PRIOR TO JULY, 1981) INCLUDES ITEMS 2-6 Superseded by part number: 76004498 |
| 1. | 76004498 | [1] | KNIFE BLADE | LECMOLDBOARD ASSY. (UNIT EFF. JULY, 1981) INCLUDES ITEMS 2-6 Superseded by part number: 79076496 |
| 2. | 73121902 | [2] | CUTTING EDGE | CMIEDGE, CUTTING |
| 2. | 8294448 | [12] | PLOW BOLT,M24 x 2 x 91mm | LECBOLT Superseded by part number: 79048375 |
| 2. | 10517671 | [12] | LOCK WASHER,24.3mm ID x 39.8mm OD x 5.5mm Thk | MODLOCKWASHER Superseded by part number: 10572571 |
| 2. | 8287743 | [12] | NUT | LEC |
| 3. | 73121900 | [1] | CUTTING EDGE | CMIEDGE, CUTTING, CENTER |
| 4. | 73122080 | [1] | CUTTING EDGE | CMIEND BIT (RIGHT) |
| 4. | 73122079 | [1] | CUTTING EDGE | CMIEND BIT (LEFT) |
| 5. | 73121896 | [4] | BRACKET | CMIREQUIRES WELDING |
| 6. | 8296818 | [1] | SEAT/SLOT | LECSOCKET |
| 6. | 11124937 | [6] | BOLT,Hex, M20 x 60, 10.9, Full Thd | LECCAPSCREW Superseded by part number: 9843495, 11124921 |
| 6. | 10517471 | [6] | WASHER | MKTLOCKWASHER Superseded by part number: |
| 7. | 8274623 | [1] | PIN | LEC |
| 8. | 8270126 | [1] | PLATE | LEC Superseded by part number: 76092114 |
| 8. | 11115531 | [2] | BOLT,Hex, M14 x 30, 10.9, Full Thd | LEC Superseded by part number: 11115534 |
| 8. | 10517171 | [2] | LOCK WASHER,14.2mm ID x 24.1mm OD x 3.5mm Thk | MKTLOCKWASHER Superseded by part number: 10572074 |
