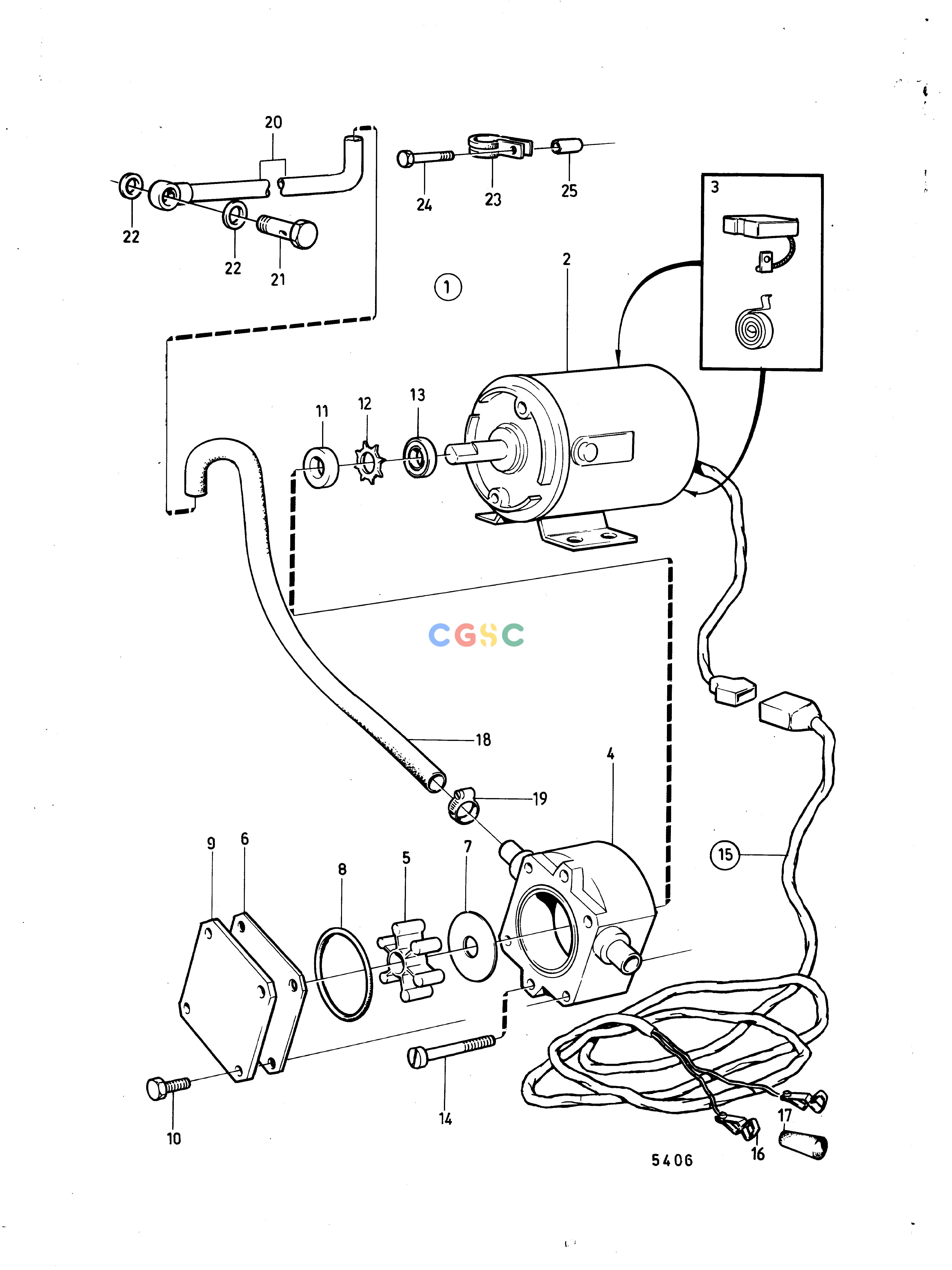

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCEngineElectrical Oil Bilge Pump with Installation Components: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
893 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
843114
|
[1] |
Oil bilge pump
|
12V
|
| 2. |
|
|
|
|
| 3. |
844014
|
[2] |
Carbon brush set
|
|
| 4. |
844015
|
[1] |
Pump housing
|
|
| 5. |
844022
|
[1] |
Impeller kit
|
|
| 6. |
844017
|
[1] |
Wear washer
|
|
| 7. |
844016
|
[1] |
Wear washer
|
|
| 8. |
|
|
|
|
| 9. |
844018
|
[1] |
Cap
|
|
| 10. |
844021
|
[4] |
Screw
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
844019
|
[1] |
Deflector ring
|
|
| 14. |
844020
|
[2] |
Screw
|
|
| 15. |
843113
|
[1] |
Cable block
|
|
| 16. |
844280
|
[2] |
Clip
|
|
| 17. |
844279
|
[1] |
Insulation
|
Black
|
| 17. |
844278
|
[1] |
Insulation
|
Red
|
| 18. |
943707
|
[1] |
Hose
|
L=3000mm
|
| 19. |
943471
|
[3] |
Hose clamp
|
|
| 20. |
844870
|
[1] |
Oil bilge pipe
|
|
| 21. |
26013
|
[1] |
Hollow screw
|
|
| 22. |
957181
|
[2] |
Gasket
|
|
| 23. |
941950
|
[1] |
Clamp
|
|
| 24. |
940161
|
[1] |
Hexagon screw
|
|
| 25. |
807182
|
[1] |
Spacer sleeve
|
|
