斗山零件查询STEER & CHOCK PIPING SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
803 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00886
|
[-] |

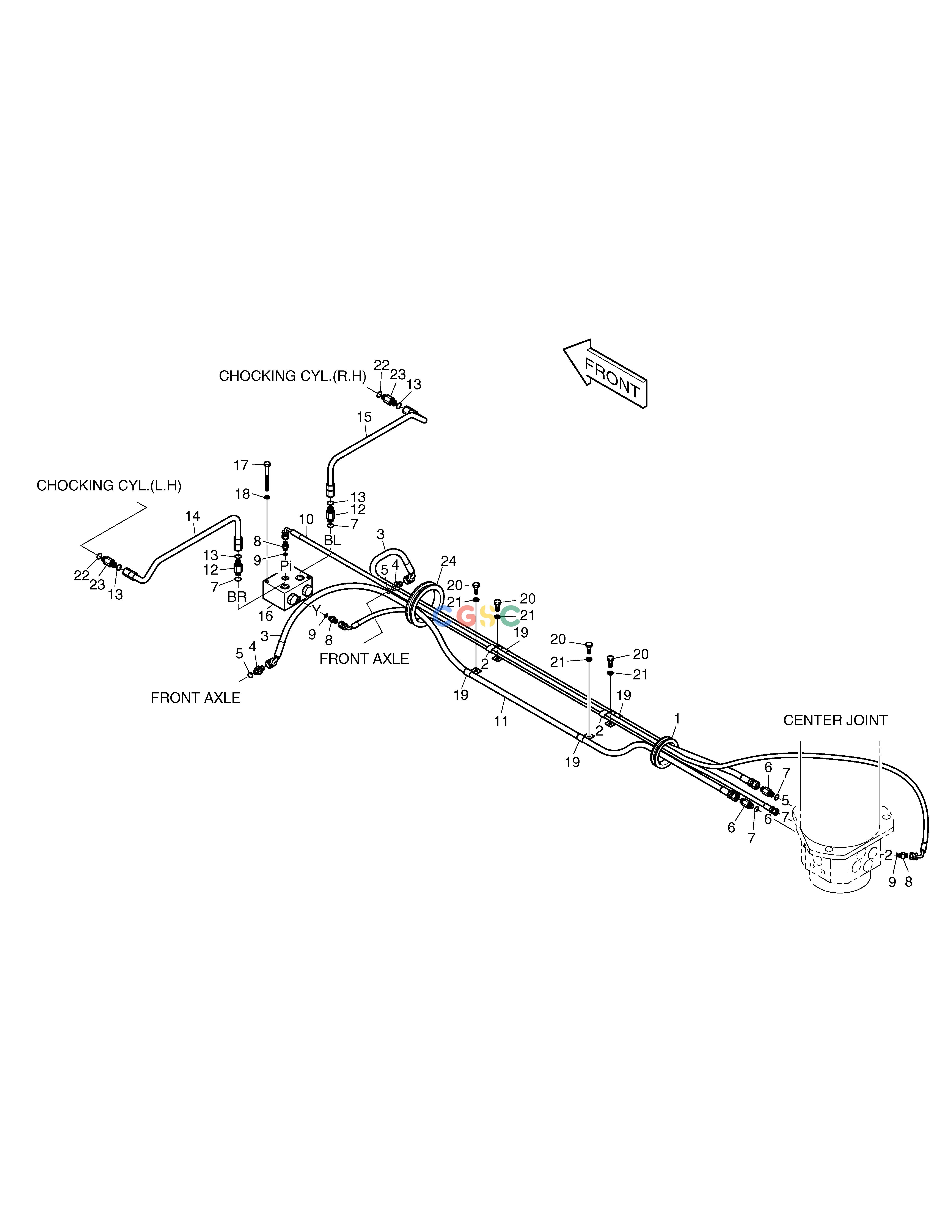

STEER & CHOCK PIPING
|
|
| 1. |
2160-1004D54
|
[1] |
BUSHING;RUBBER
|
|
| 10. |
2184-1061D299
|
[1] |
HOSE PF1/4-1850L
|
|
| 11. |
2184-1062D90
|
[1] |
HOSE PF1/4-1430L
|
|
| 12. |
2181-4133D2
|
[2] |
ADAPTER
|
|
| 13. |
S8030061
|
[4] |
O-RING
|
|
| 14. |
2140-1231B
|
[1] |
PIPE;CHOCKING(L.H.)
|
|
| 15. |
2140-1232B
|
[1] |
PIPE;CHOCKING(R.H.)
|
|
| 16. |
2423-9007
|
[1] |
VALVE;CHOCKING
|
|
| 17. |
S0557053
|
[2] |
BOLT M8X1.25X85
|
|
| 18. |
S5102503
|
[2] |
. WASHER
|
|
| 19. |
2124-1353D4
|
[4] |
CLIP
|
|
| 2. |
124-00199D5
|
[1] |
CLIP
|
|
| 20. |
S0511853
|
[4] |
BOLT
|
|
| 21. |
S5102603
|
[4] |
. WASHER
|
|
| 22. |
2180-1026D13
|
[2] |
O-RING
|
|
| 23. |
2181-4133D33
|
[2] |
ADAPTER
|
|
| 24. |
2160-1322D2
|
[1] |
BUSHING;RUBBER
|
|
| 3. |
2184-1060D113
|
[2] |
HOSE PF3/8-1600L
|
|
| 4. |
2181-1126D30
|
[2] |
ADAPTER
|
|
| 5. |
S8180291
|
[2] |
PACKING M18
|
|
| 6. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 7. |
S8000141
|
[4] |
O-RING
|
|
| 8. |
2181-1126D14
|
[3] |
ADAPTER
|
|
| 9. |
S8000111
|
[3] |
O-RING
|
|
